Specifications
1 The pulsation speed very easy adjusted by regulator2 Suitable for roughing and desliming

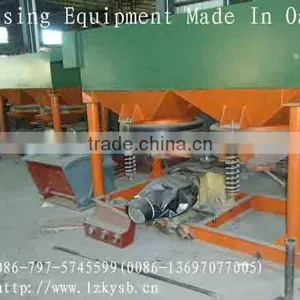

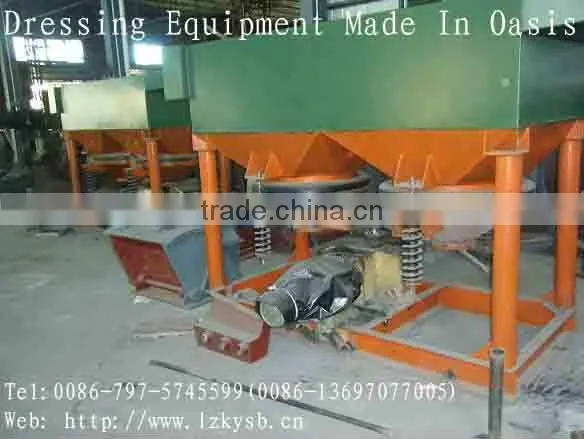

Our Saw-tooth Wave Ladder Jig is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine Wave Jig. The difference between Saw-tooth Wave Ladder Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for undersize fraction.
Industrial tests carried our of Saw-tooth Wave Ladder Jig and Sine Wave Jig for comparison showed that the recovery rate for operation of Saw-tooth Wave Ladder Jig is raised by Sn: 3.01%, W: 5.5%, Pb: 1.63%, Zn: 2.04%; The water consumption reduces 30%-40% than traditional Jig. The area reduces 1/3 and the stroke may adjust also.
Ore dressing of our Saw-tooth Wave Ladder Jig is capable of handling almost full sizes of mineral materials other than very fine material. It features simple process operation, heavy duty equipment handling capacity with final products being obtained through one time separation.
| Model | Hutch | Diaphragm | Feeding Size (mm) |
Amount of make-up water (m 3 /t) | Make-up water pressure (Mpa) |
Capacity (t/h) |
Power (kw) |
Dimensions (mm) |
Weight (Kg) | ||
| Shape | Area (m 2 ) |
Stroke (mm) | Frequency of Stroke (r/min) |
||||||||
| JT0.57-1 | Trapezoid | 0.57 | (M12)8.5—12 (M17)10—17 |
80-180 | <6 | 1-3 | ≥0.05 | 1-2.5 | 1.5 | 1550×780×1530 | 610 |
| JT1-1 | Trapezoid | 1.04 | <10 | 1-3 | 2-4 | 2.2 | 2270×1110×1890 | 900 | |||
| JT2-2 | Rectangle | 2.28 | <10 | 1-3 | 4-8 | 3 | 3225×1550×2050 | 1640 | |||
| JT3-1 | Trapezoid | 3.3 | M15 M20 M25 |
80-120 | <10 | 1-3 | 6-10 | 5.5 | 3180×2000×3030 | 3260 | |
| JT5-2 | Trapezoid | 4.86 | <10 | 1-3 | 10-15 | 7.5 | 3600×2000×2600 | 4500 | |||
| JT1.5-2 | Rectangle | 1.53 | M25 M30 |
80-120 | <30 | 1-2 | 5-8 | 3 | 3200×1550×2050 | 1520 | |
| JT4-2 | Rectangle | 4.33 | <30 | 1-2 | 10-15 | 7.5 | 3600×1850×2600 | 4600 | |||
