Specifications
Screw washing machine with low price1.Spiral length and sealing system is good
2.Simple structure and high processing abili

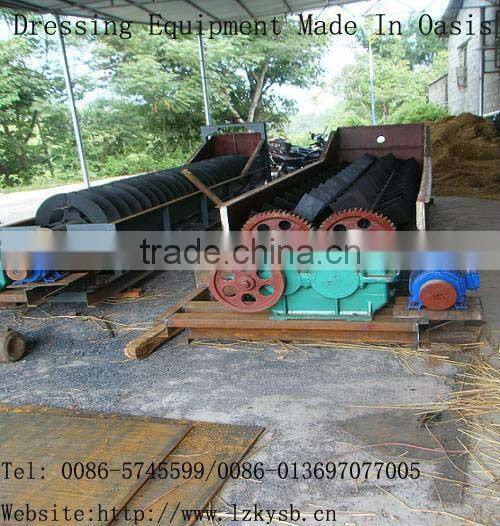

Screw washing machine
1 Description:
Ores containing more than 20% clay to the crushing machine and then create plug chute, the device can contain more than 20% clay minerals, in the washing machine spiral stirring, scrubbing to achieve the purpose of separation of ore and clay, wash After the ore discharged from the discharge port, muddy water discharged from the tailings side. The equipment and drum washing machine with, for dealing with hard to wash ore is more effective equipment.
2, use:
Spiral slot washing machine for black and non-ferrous metallurgical and mining and other pre-ore, ore washing water to remove silt and other impurities in the ore, so that ore to process and economic requirements, are widely used in de Clay roughing and selected, especially for stone buried in the soil particles the best results. Its large capacity is to meet the great productivity of the ore, stone of the cleanliness of the company to demand an ideal device.
3, spiral slot washing machine main technical parameters
Model | Tank size (L × W) mm | Feed size mm | Installation angle (degrees) | Screw Speed r / min | Capacity t / h | Motor Power KW |
XK1156 | 5600 × 1100 | 50 | 14 | 20/24/27 | 20-30 | 11 |
XK1572 | 7200 × 1500 | 70 | 11-14 | 20/24/27 | 30-60 | 22 |
XK187 | 7600 × 1800 | 70 | 12 | 24 | 40-80 | 45 |
XK2000 × 8000 | 8000 × 2000 | 70 | 12 | 22 | 50-100 | 45 |
XK2200 × 8400 | 8400 × 2200 | 70 | 14 | 17 | 70-120 | 75 |
