Product Details
Condition: | New | Type: | Other, voltage electrostatic separator | Production Capacity: | 15-30 kg/h |
Place of Origin: | Jiangxi, China | Brand Name: | oasis | Model Number: | 250/200 mm |
Voltage: | 60000 V | Power(W): | 800 | Dimension(L*W*H): | 920/1120/1850 |
Weight: | 100 kg | Certification: | ISO9001:2008 | Warranty: | One year |
After-sales Service Provided: | Overseas service center available |
Product Description

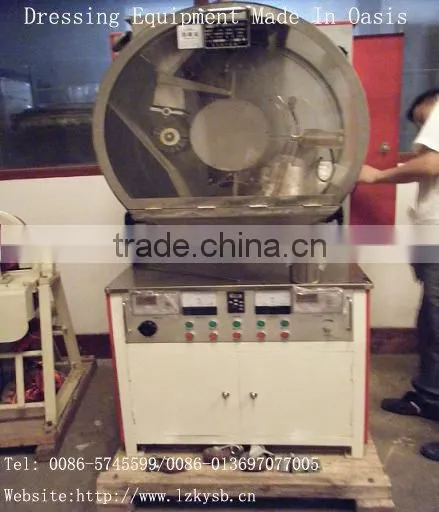

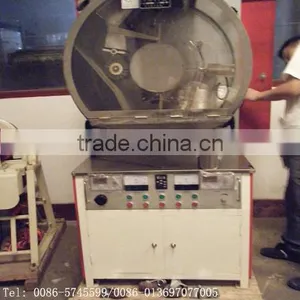

XDF ModelΦ250×200 High voltage Electrostatic Separator is mainly applied for separation of conductor and non-conductor minerals and classification of planting materials instead of screening operation as well as food processing and seed selection.
serial number
| item | Number value | unit | ||
1 | Drum tube(diameter×length) | φ 250 × 200 | mm | ||
2 | Drum drum rotational speed | 50 ~ 300 | r/min | ||
3 | corona electrode (Pole wire diameter×quantity) | 0.2 | mm | ||
1 ~ 5 |
| ||||
4 | static level (diameter×quantity) | φ 30 | mm | ||
1 |
| ||||
5 | electrode control
| Radial movement quantity | 50 | mm | |
Circumferential Angle | 60 | ° | |||
6 | hairbrush(diameter× roll diameter ) | φ 105 × 60 | mm | ||
7 | Brush speed | Drum speed 2 times |
| ||
8 | Drum tube heating | temperature | 50 ~ 60 | °C | |
power | 900 | W | |||
9 | Silo heating | temperature | 100 ~ 300 | °C | |
power | 900 | W | |||
10 | Opening the gate silo calibration | 0 ~ 20 | mm | ||
11 | Feeding chute Angle | 0 ~ 30 | ° | ||
12 | Feeding chute vibrator | FREE SIZE |
| ||
13 | Processing material particle size | 0.04 ~ 1 | mm | ||
14 | handling ability
| 15 ~ 30 | Kg/h | ||
15 | High voltage power supply power | 800 | W | ||
16 | maximum voltage
| 60 | Kv | ||
17 | overall dimension
| 920×1120×1850 | mm | ||
18 | weight | 400 | Kg |
