Detailed Product Description

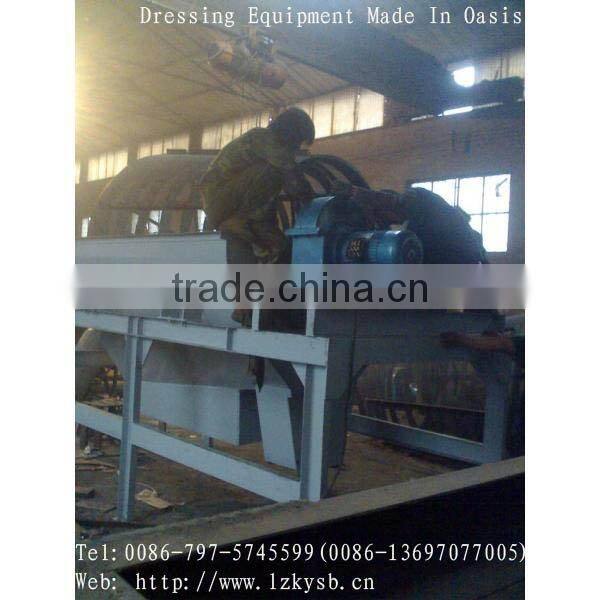

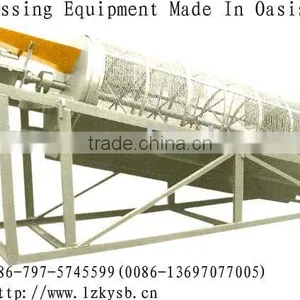

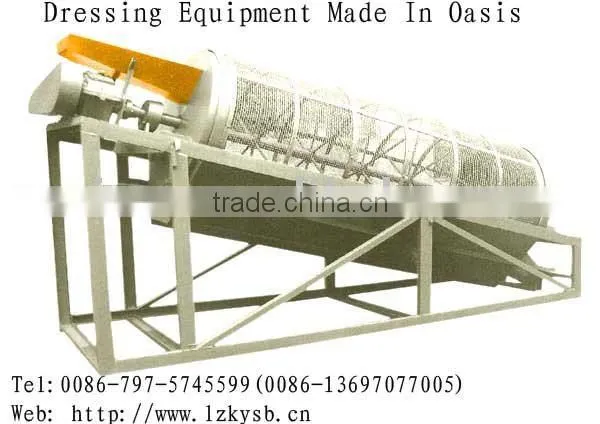

Trommel Screen/Drum ScreenTrommel Screen
1.simple structure and operation
2.large capacity and low cost
3.rational design
Trommel Screen/Drum Screen
Features
u Configured for economical & efficient classification, Screening and grading
u Heavy duty trommel drum with lifters at the front to facilitate material break up
u Screen replaceable for different mesh sizes
u Multiple screen size
u Easily changed screen plates
u Largest processing capacity in the industry
u Unique screen design, result in higher capacities, longer screen life and no material clogging
u Heavy duty feed hopper and extension
u Discharge chute
u Gear drive mechanism
u Variable speed drive mechanism
Descriptions
The Trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Our Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
Technical Specifications
Model |
Capacity |
Power |
Drum diameter |
Drum length |
Screen size |
Dimension |
Weight |
GT1015 |
50 |
4.0 |
1000 |
1500 |
<3~10 |
3000*1400*2145 |
2200 |
GT1020 |
100 |
5.5 |
1000 |
2000 |
3460*1400*2145 |
2800 |
|
GT1225 |
160 |
7.5 |
1200 |
2500 |
4146*1600*2680 |
4200 |
|
GT1530 |
250 |
11 |
1500 |
3000 |
4460*1900*2820 |
5100 |
|
GT1545 |
350 |
15 |
1500 |
4500 |
5960*1900*3080 |
6000 |
|
GT1848 |
450 |
22 |
1800 |
4800 |
6500*2300*4000 |
7500 |
|
GT2055 |
600 |
30 |
2000 |
5500 |
7500*2500*4000 |
8600 |
