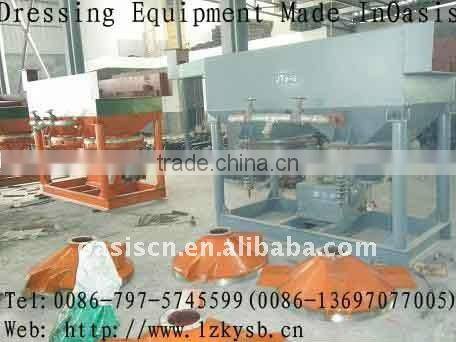

placer mining equipment
- Xiamen
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Jigger | |
| Place of Origin | Jiangxi, China | Brand Name | Oasis | |
| Model Number | Refer to specificatin | Certification | ISO9001:2008 |
Product Description
Specifications
Ore dressing by Gravity Jig is considered as one of the major means for gravity beneficiation with the process characteristics bOre dressing by Sawtooth Wave Jig is capable of handling almost full sizes of mineral materials other than very fine material. It features simple process operation, heavy duty equipment handling capacity with final products being obtained through one time separation. Therefore, it has found a wide application in production. It is regarded as one of major means to cope with metallic ores such as iron and manganese ores of coarse, moderate and fine sizes and has found significant use in beneficiating tin and tungsten ores. Moreover, Jigging Method also can achieve a good result in processing primary ores bearing gold, tantalum niobium, titanium, zirconium and chrome and sand stones.
More density minerals to be separated in ores have, wider range the feed sizes have. For gold bearing placer, when feed grain size is less than 25 mm, separation may be carried out without size classification with the lower limit of recovery up to 0.05 mm. For ordinary metallic ores, size classified separation is conducted to effectively improve indexes for separation and to enhance handling capability for the equipment.
Model | Area | Stroke | Times of stroke | Feed Size | Capacity | water | Power | Overall dimensions | Weight |
m2 | mm | r/min | mm | t/h | m3/h
| kw | mm | t | |
JT2-2 | 2.28 | 12-17 | 80-180 | <10 | 4-8 | 1-3 | 2 | 3220/1550/2050 | 1.6 |
JT3-1 | 3.3 |
| 80-120 | <10 | 6-10 | 1-3 | 5.5 | 3180/2000/3030 | 3.26 |
JT4-2 | 4.33 | 6.5-25 | 80-120 | <30 | 10-15 | 1-2 | 7.5 | 3600/1850/2600 | 4.6 |
JT5-2 | 4.86 | 15-25 | 80-120 | <10 | 10-20 | 1-2 | 7.5 | 3600/2000/2600 | 4.8 |
DYTA7750-3 | 9.9 | 20-30 | 0-90 | <25 | 50-75 | 2-5 | 5.5 | 7750/3060/2700 | 6 |
DYTA7750-4 | 13.2 | 20-30 | 0-90 | <25 | 66-100 | 2-5 | 7.5 | 7750/3060/2700 | 7.5 |
DYTA7750-6 | 19.8 | 20-30 | 0-90 | <25 | 100-150 | 2-5 | 7.5 | 7750/3060/2700 | 12.5 |
DYTA7750-8 | 26.4 | 20-30 | 0-90 | <25 | 132-197 | 2-5 | 11 | 7750/3060/2700 | 16 |
DYTA7750-9 | 29.7 | 20-30 | 0-90 | <25 | 150-220 | 2-5 | 11 | 7750/3060/2700 | 17.5 |
DYTA7750-12 | 39.6 | 20-30 | 0-90 | <25 | 220-300 | 2-5 | 15 | 7750/3060/2700 | 21 |
LTA1010/2 | 4 | 0-26 | 250-350 | 1-5 | 2-20 | 1-2 | 2.2 | 3200/17002600 | 1.6 |
300/450 diaphragm | 2.7 | 0-26 | 320 | 12 | 3-6 | 2-3 | 1.1 | 1230/1270/1750 | 0.74 |
370/360 diaphragm | 2.75 | 5-25 | 2-5 | 6 | 1-3 | 2-3 | 1.1 | 1000/600/1600 | 0.24 |
