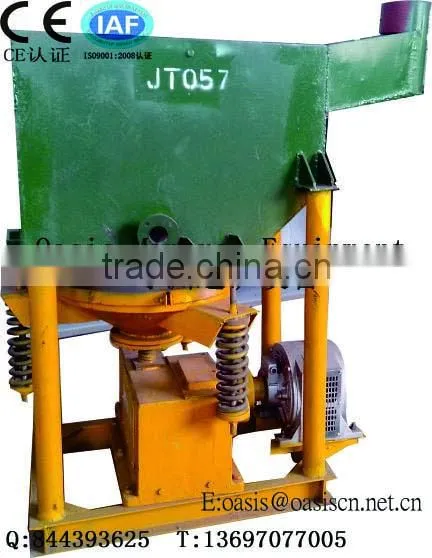

Roughing Concentration Machine Jigger

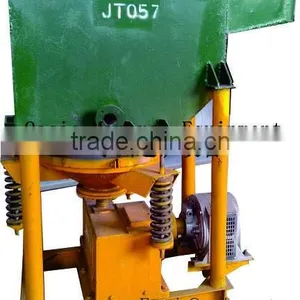

Roughing Concentration Machine Jigger thumbnail-1
Roughing Concentration Machine Jigger photo-1
US$ 3,564 - 85,645 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Jigger
Place of Origin:
Jiangxi, China
Contact Supplier Request Quote Chat Now
Shicheng Oasis Mineral Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Jigger
Place of Origin Jiangxi, China
Brand Name Oasis
Model Number Refer to specificatin
Certification ISO9001:2008

Specifications

Ore dressing by Gravity Jig is considered as one of the major means for gravity beneficiation with the process characteristics

Roughing concentration machine jiggerOre dressing by Sawtooth Wave Jig is capable of handling almost full sizes of mineral materials other than very fine material. It features simple process operation, heavy duty equipment handling capacity with final products being obtained through one time separation. Therefore, it has found a wide application in production. It is regarded as one of major means to cope with metallic ores such as iron and manganese ores of coarse, moderate and fine sizes and has found significant use in beneficiating tin and tungsten ores. Moreover, Jigging Method also can achieve a good result in processing primary ores bearing gold, tantalum niobium, titanium, zirconium and chrome and sand stones.

More density minerals to be separated in ores have, wider range the feed sizes have. For gold bearing placer, when feed grain size is less than 25 mm, separation may be carried out without size classification with the lower limit of recovery up to 0.05 mm. For ordinary metallic ores, size classified separation is conducted to effectively improve indexes for separation and to enhance handling capability for the equipment.

Model

Area

Stroke

Times of stroke

Feed

Size

Capacity

water

Power

Overall dimensions

Weight

m2

mm

r/min

mm

t/h

m3/h



kw

mm

t

JT2-2

2.28

12-17

80-180

<10

4-8

1-3

2

3220/1550/2050

1.6

JT3-1

3.3



80-120

<10

6-10

1-3

5.5

3180/2000/3030

3.26

JT4-2

4.33

6.5-25

80-120

<30

10-15

1-2

7.5

3600/1850/2600

4.6

JT5-2

4.86

15-25

80-120

<10

10-20

1-2

7.5

3600/2000/2600

4.8

DYTA7750-3

9.9

20-30

0-90

<25

50-75

2-5

5.5

7750/3060/2700

6

DYTA7750-4

13.2

20-30

0-90

<25

66-100

2-5

7.5

7750/3060/2700

7.5

DYTA7750-6

19.8

20-30

0-90

<25

100-150

2-5

7.5

7750/3060/2700

12.5

DYTA7750-8

26.4

20-30

0-90

<25

132-197

2-5

11

7750/3060/2700

16

DYTA7750-9

29.7

20-30

0-90

<25

150-220

2-5

11

7750/3060/2700

17.5

DYTA7750-12

39.6

20-30

0-90

<25

220-300

2-5

15

7750/3060/2700

21

LTA1010/2

4

0-26

250-350

1-5

2-20

1-2

2.2

3200/17002600

1.6

300/450 diaphragm

2.7

0-26

320

12

3-6

2-3

1.1

1230/1270/1750

0.74

370/360 diaphragm

2.75

5-25

2-5

6

1-3

2-3

1.1

1000/600/1600

0.24

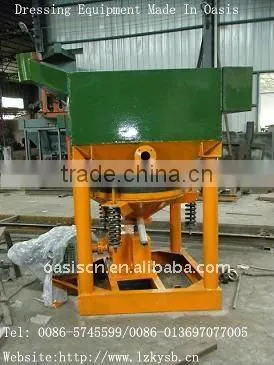

 Roughing concentration machine jigger
