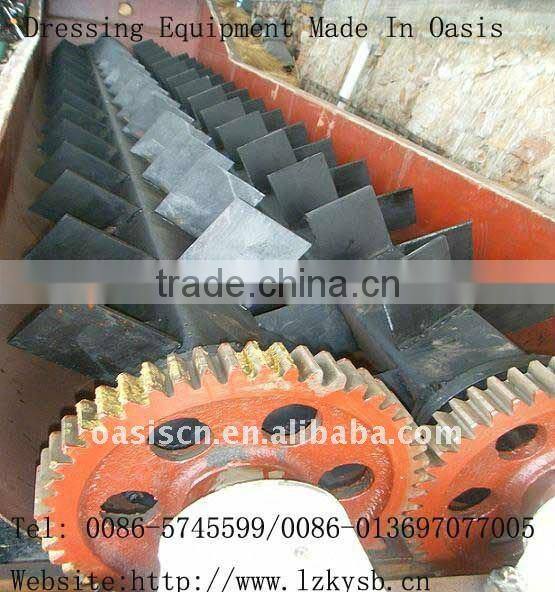

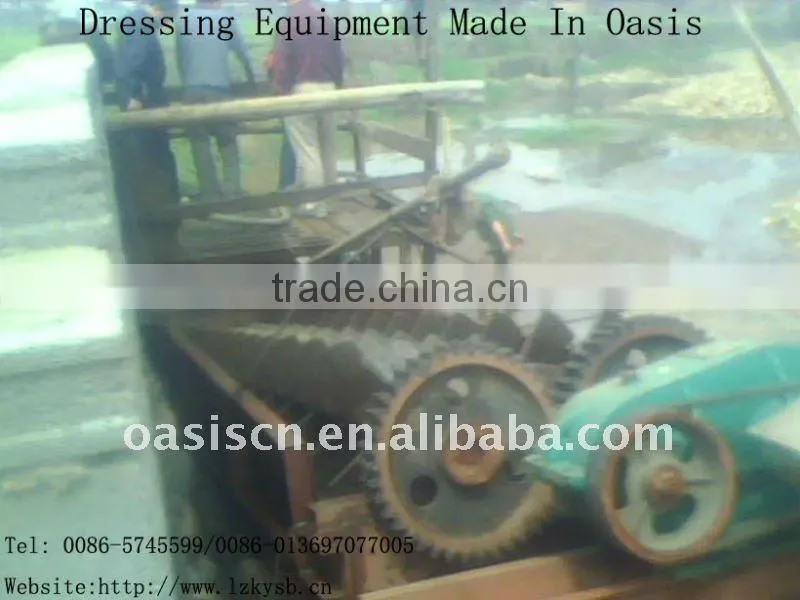

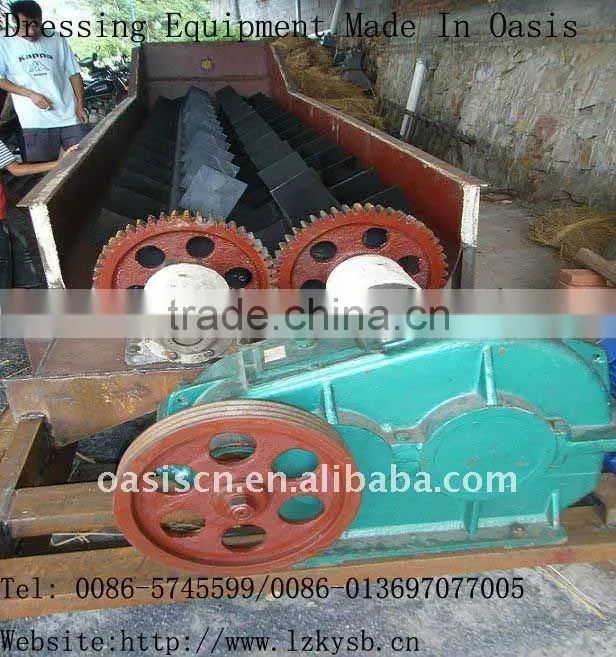

Screw Washing Machine/screw Ore Washing Machine/screw Stone Washing Machine

Specifications

1, Description:
Ores containing more than 20% clay to the crushing machine and then create plug chute, the device can contain



1, Description:
Ores containing more than 20% clay to the crushing machine and then create plug chute, the device can contain more than 20% clay minerals, in the washing machine spiral stirring, scrubbing to achieve the purpose of separation of ore and clay, wash After the ore discharged from the discharge port, muddy water discharged from the tailings side. The equipment and drum washing machine with, for dealing with hard to wash ore is more effective equipment.

2, use:

Spiral slot washing machine for black and non-ferrous metallurgical and mining and other pre-ore, ore washing water to remove silt and other impurities in the ore, so that ore to process and economic requirements, are widely used in de Clay roughing and selected, especially for stone buried in the soil particles the best results. Its large capacity is to meet the great productivity of the ore, stone of the cleanliness of the company to demand an ideal device.

3, spiral slot washing machine main technical parameters

Model	Tank size (L × W) mm	Feed size mm	Installation angle (degrees)	Screw Speed r / min	Capacity t / h	Motor Power KW
XK1156	5600 × 1100	50	14	20/24/27	20-30	11
XK1572	7200 × 1500	70	11-14	20/24/27	30-60	22
XK187	7600 × 1800	70	12	24	40-80	45
XK2000 × 8000	8000 × 2000	70	12	22	50-100	45
XK2200 × 8400	8400 × 2200	70	14	17	70-120	75
