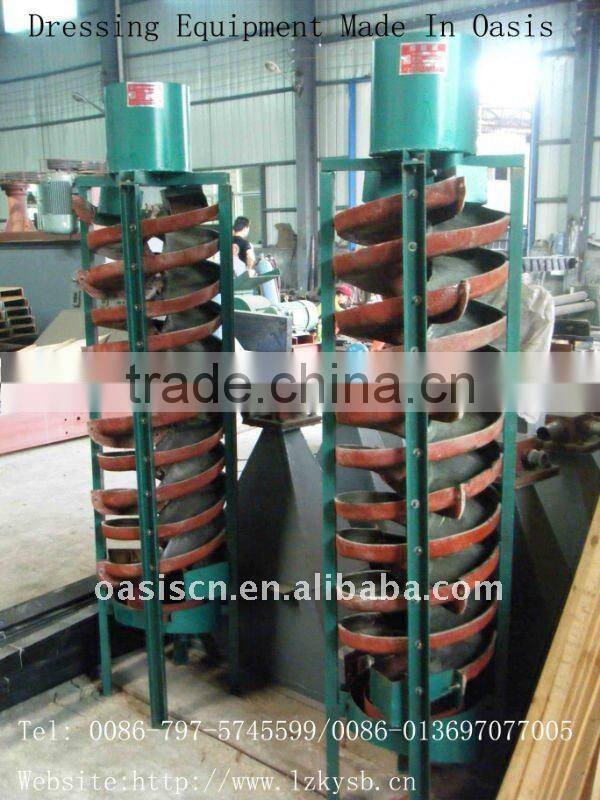

Spiral chute
- 1000 Set / Sets per Month
- xiamen
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | oasis | |
| Model Number | other | Condition | Used | |
| Year | 2011 |
Product Description
Specifications
Product Name: Spiral ChuteSpiral Chute is Beijing BGRIMM successful research has the domestic advanced level of high-performa
Product Name: Spiral Chute
Spiral Chute is Beijing BGRIMM successful research has the domestic advanced level of high-performance re-election of new equipment for particle size sorting of 0.3 - 0.05 fine-grained iron, tin, tungsten, tantalum, niobium, gold, coal mine , monazite,
Details: Glass Steel Spiral Chute is Beijing BGRIMM successful research has the domestic advanced level of high-performance re-election of new equipment for particle size sorting of 0.3 - 0.05 fine-grained iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon, as well as the proportion of the poor have enough other metal or non-metallic.
Model | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
Diameter (mm) | 1200 | 900 | 600 | 400 | |
Screw diameter (mm) | 900,720,540 | 675,540,405 | 450,360,270 | 240,180 | |
From the diameter ratio (pitch / diameter) | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.6,0.45 | |
Horizontal Inclination (degrees) | 90 | 90 | 90 | 90 | |
Installation of each screw head up to the number of | 4 | 3 | 2 | 2 | |
To the ore particle size (mm) | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
To the ore concentration (%) | 25-55 | 25-55 | 25-55 | 25-55 | |
Production capacity (t / h) | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
Dimensions | Length (mm) | 1360 | 1060 | 700 | 460 |
Width (mm) | 1360 | 1060 | 700 | 460 | |
Height (mm) | 5230 | 4000 | 2600 | 1500 | |
Weight (kg) | 600 | 400 | 150 | 50 | |
