Pump for Water -borne Solids Belt/Slurry Pump/sand Pump

Shicheng Oasis Mineral Equipment Manufacturing Co., Ltd.
Pump for Water -borne Solids Belt/Slurry Pump/sand Pump thumbnail-1
Pump for Water -borne Solids Belt/Slurry Pump/sand Pump thumbnail-2
Pump for Water -borne Solids Belt/Slurry Pump/sand Pump thumbnail-3
Pump for Water -borne Solids Belt/Slurry Pump/sand Pump thumbnail-4
Pump for Water -borne Solids Belt/Slurry Pump/sand Pump photo-1

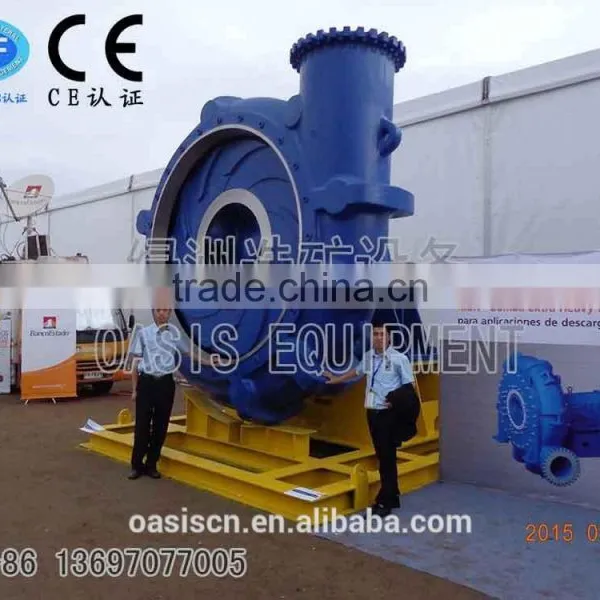

Pump for Water -borne Solids Belt/Slurry Pump/sand Pump photo-2
Pump for Water -borne Solids Belt/Slurry Pump/sand Pump photo-3
Pump for Water -borne Solids Belt/Slurry Pump/sand Pump photo-4
US$ 480 - 4,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangxi, China
Brand Name:
OASIS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangxi, China
Brand Name OASIS
Model Number OTHER
Voltage 380V
Power(W) 1.1-110kw
Weight differnet weight
Dimension(L*W*H) different type
Certification ISO9001:2008
Warranty 3year
After-sales Service Provided Engineers available to service machinery overseas

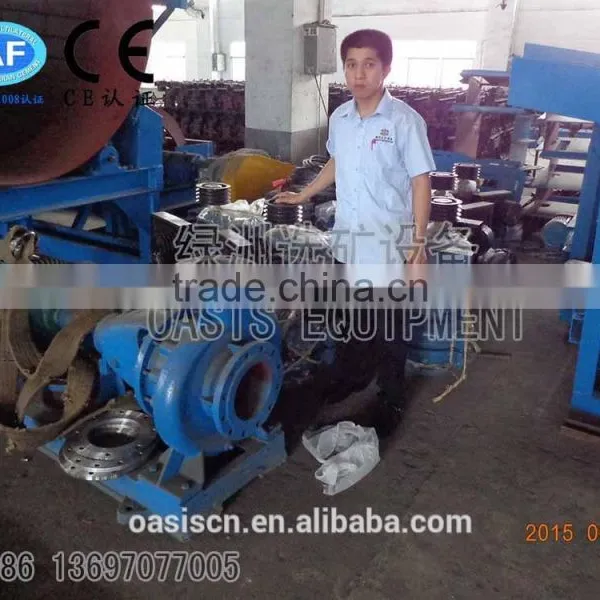

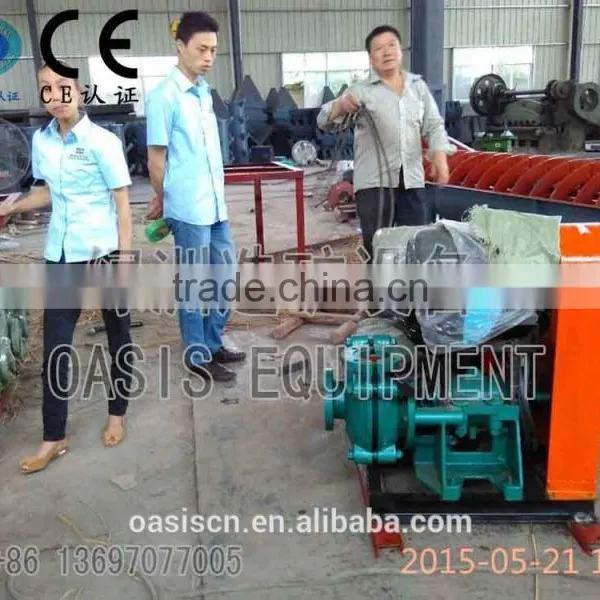

ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD pump for water -borne solids Belt/Slurry Pump/sand pump

The wear-resisting parts in horizontal and vertical pumps and sand pump

The wear-resisting parts in horizontal and vertical pumps are used high intensity hardness material so the pumps have features as time endurable, reliable performance and convenient operation. The pumps are mainly used in transporting concentrate, discharging tailing and coal separating plant besides, it can be used in the high temperature and easily crystallizable pulp in Aluminum Factories and pulp conveying in Cement Plants also.

Product Name

Pumping Head

(m)

Current Capacity
 (m3/h)

Feed Ore Size

(m)

Electromotor

Model

 Power

(KW)

1" Vertical Pump

9

5

0-5

Y100L-4

2.2

1.5"Vertical Pump

12

10

0-4

Y100L-4

3

2" Vertical Pump

15

15

0-4

Y132M-4

7.5

2.5 Vertical Pump

21

70

0-5

Y160M-4

11

1"Vertical Pump

9

5

0-5

Y90L-4

1.5

 1.5"Vertical Pump

12

10

0-4

Y100L-4

3

2" Vertical Pump

18

22

0-4

Y132M-4

7.5

 pump for water -borne solids Belt/Slurry Pump/sand pump

They are designed for the hand-lind highly abrasive, high concentration slurries.They are widely used in metallurgy industry,mining industry and so on.The pumps of this model also can be installed as multi-stage series pumps



Model

Max power Kw

Capacity(m³/h

Feed density(%

Head(m)

type

weight(kg

LZSL13(1/2)

0.75

20-30L/min

10-40

5

vertical

65

LZSL19(3/4)

1.1

55L/min

10-40

6

vertical

110

LZSL25(1)

1.5

110L/min

10-40

9

vertical

157

LZSL38(3/2)

3

250L/min

10-40

12

vertical

200

LZ150ZJL-35

37

199-364

10-40

12-17

vertical

800

LZ100ZJL-34

45

157-293

10-40

22-36

vertical

630

LZ80ZJL-36

45

105-201

10-40

32-45

vertical

650

LZ65ZJL-30

18.5

38-98

10-40

26-34

vertical

440

LZ40ZJL-25

5.5

10.1-22.9

10-40

16-21

vertical

225

LZ50ZJL-20

4

17-38

10-40

5-10

vertical

240

150ZJ-60

160

135-550

10-40

14-63

horizontal

2203

150ZJ-57

110

95-427

10-40

13-56

horizontal

2023

150ZJ-50

75

115-460

10-40

9-43

horizontal

1735

150ZJ-42C

132

142-550

10-40

12-62

horizontal

1605

100ZJ-50

160

85-360

10-40

20-100

horizontal

1475

100ZJ-42

90

66-275

10-40

14-70

horizontal

1075

100ZJ-36

55

61-245

10-40

9-49

horizontal

1010

80ZJ-52

160

51-242

10-40

22-109

horizontal

1465

80ZJ-42

75

61-204

10-40

14-70

horizontal

1053

65ZJ-30

15

23-79

10-40

7-34

horizontal

504

50ZJ-50

90

27-111

10-40

22-110

horizontal

1378

50ZJ-46

55

23-94

10-40

17-85

horizontal

1082

50ZJ-33

18.5

12-54

10-40

7-42

horizontal

537

40ZJ-19

15

8-35

10-40

12-57

horizontal

173

40ZJ-17

7.5

4-23

30

9-44

horizontal

120

 pump for water -borne solids Belt/Slurry Pump/sand pumppump for water -borne solids Belt/Slurry Pump/sand pumppump for water -borne solids Belt/Slurry Pump/sand pumppump for water -borne solids Belt/Slurry Pump/sand pump
