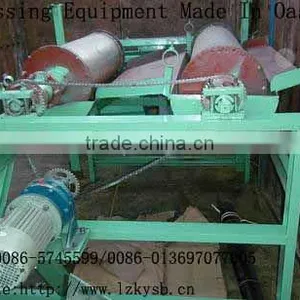

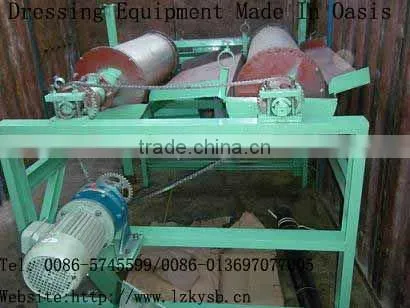

lab intensity magnetic separator/ Small Magnetic Ore Separator / Small Size Magnetic Ore Separator / Laboratory Magnetic Tube/ L

Specifications

1)High quality/reliability;
2)Easy to operate;
3)Best service;

ShiCheng Oasis Mineral Equipment Manufacturing Co.,  )is production Technical Parameter of laboratory Wet Strong-intensity Magnetic Separator

XCQS Wet High Intensity Magnetic Separation Machines for metal mineral processing laboratory, mining engineering experiment, the middle experimental plant, which uses fine-grained wet method magnetic ore separator, only a small amount of sample can be tested technical indicators of mineral iron content. Separator small size, easy to operate. The device is not suitable for beneficiation test with a corrosive liquid. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.
The role of large area magnetic machine, processing capacity, tooth plate made of Poly magnetic media, magnetic field intensity and magnetic field gradient is high, the low-grade iron ore oxidation experiments very effective.

Model		Uite	XCSQ 50/70
Size of separating tank		mm	50/70/220
Coil cooling method		r/min	Forced air cooling
Caparating size		kg/h	4-5
Feed size		mm	1
Intensity		GS	23000(1840KA/m) Adjustable steplessly
Voltage		V	380
Overall consumed power		kw	0.4
Excitation power	input		220V,50HZ
	output		0-118V,1-25A
Overall dimensions		mm	783/600/1200
Weighe		kg	250
