Specifications

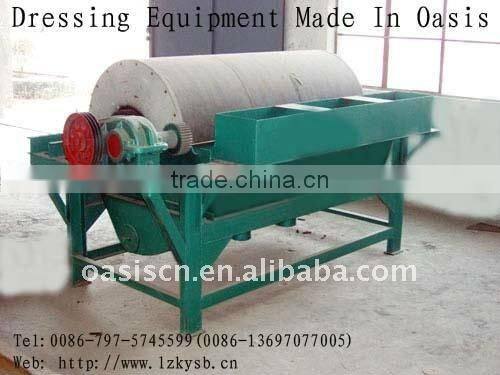

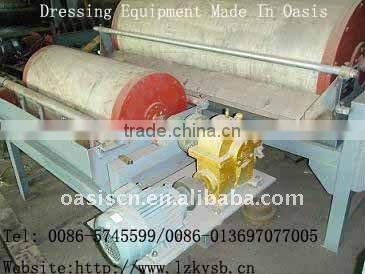

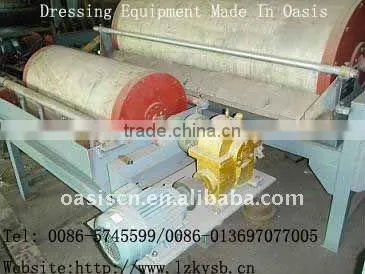

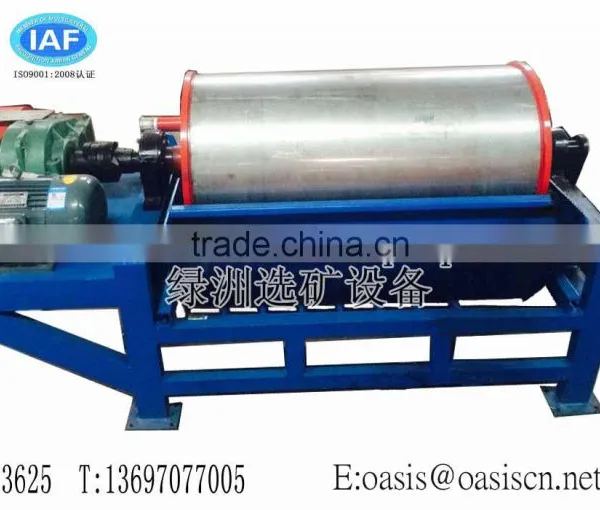

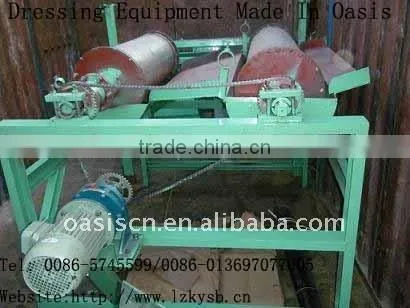

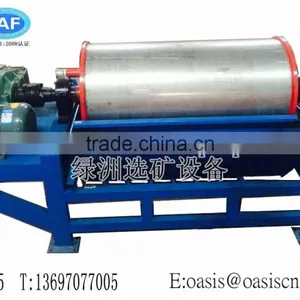

Wet drum separator1.Low price
2.High quality
3.Permanent style
4.Mining use drum separator
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599)is production
The Magnetic Separator can separate raw materials with different magnetic rigidities.
The Magnetic Separator can separate raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc.
In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix. It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain.
Technical Specifications
Model |
Shell diameter (mm) |
Shell length (mm) |
Shell rotation speed (r/min) |
Feeding size (mm) |
Capacity (t/h) |
Power (kw) |
CTB6012 |
600 |
1200 |
<35 |
2-0 |
10-20 |
1.5 |
CTB6018 |
600 |
1800 |
<35 |
2-0 |
15-30 |
2.2 |
CTB7518 |
750 |
1800 |
<35 |
2-0 |
20-45 |
2.2 |
CTB9018 |
900 |
1800 |
<35 |
3-0 |
40-60 |
3 |
CTB9021 |
900 |
2100 |
<35 |
3-0 |
45-60 |
3 |
CTB9024 |
900 |
2400 |
<28 |
3-0 |
45-70 |
4 |
CTB1018 |
1050 |
1800 |
<20 |
3-0 |
50-75 |
5.5 |
CTB1021 |
1050 |
2100 |
<20 |
3-0 |
50-100 |
5.5 |
CTB1024 |
1050 |
2400 |
<20 |
3-0 |
60-120 |
5.5 |
CTB1218 |
1200 |
1800 |
<18 |
3-0 |
80-140 |
5.5 |
CTB1224 |
1200 |
2400 |
<18 |
3-0 |
85-180 |
7.5 |
CTB1230 |
1200 |
3000 |
<18 |
3-0 |
100-180 |
7.5 |
