Washing Table/Table Separation/ Table Concentration/Sludge Mill/Slime Table

Specifications

1,Easy to Disassembly and fixing
2,Different Model and Sizes for Choice
3,High quality with best price.

ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599 is production

High quality ,precision manufacturing
High concentration ratio ,High recovery ratio

Shaking table which is also called table concentrator, is one of the main equipments of gravity concentration.

It is not only widely applied on separating Gold, Tungsten, Tin, Manganese, Iron, Titanium, Zircon, Tantalum, Barium, Chrome, Lead, Zinc, Mercury, Copper, Aluminum ,and other rare metals and the noble metal ore, also applied on sorting coal.

When dealing with the metal ore, the shaker effective recycling granularity scope is 2-0.037 millimeters.

Structure and  Style

Three major parts: Head motion, Deck and support device.

Head Motion:

We have three styles of Head motions:6-S Head motion, Yunxi Head motion and LY Head motion. They are made from cast iron machining. They are Easy installation and maintenance, Simple operation.

Deck:

We have three styles of deck depend on the different particle size of raw ore. Coarse Ore Deck, Fine Sand Deck and Slime Deck. The decks are constructed of steel framework and covered fiberglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, Corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.

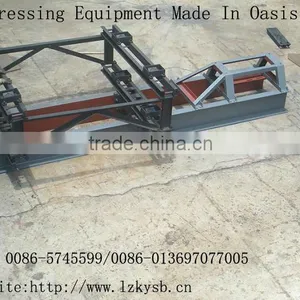

Support device:

We have three supporting device types: Tradition type, groove steel support and big channel steel support, The groove support and. Big channel steel support are easy to installation and move.

Features

High enrichment ratio,

High separation precision,

High efficiency beneficiation,

High recovery ratio,

Easy installation and maintenance,

Simple operation,

The work safe and reliable,

Long working life,

It can eventually get the concentrates and tailings.



Technical Parameters

Model		6-S	6-S	6-S	LY
Deck Size	Length(mm)	4500	3000	2100	1100
	Transmission end width(mm)	1850	1620	1050	500
	Concentrate end width(mm)	1560	1110	850	430
Beneficiation area(m2)		7.67	4.08	2	0.51
Feeding Size (mm)	Coarse sand Deck	2-0.5	2-0.5	2-0.5	2-0.5
	Fine sand Deck	0.5-0.1	0.5-0.1	0.5-0.1	0.5-0.1
	Slime Deck	0.1-0.037	0.1-0.037	0.1-0.037	0.1-0.037
Feeding amount (t/h)	Coarse sand Deck	1-2	0.6-1.5	0.4-0.8	0.1-0.2
	Fine sand Deck	0.5-1	0.3-0.8	0.2-0.5	0.05-0.1
	Slime Deck	0.3-0.5	0.2-0.4	0.1-0.2	0.03-0.05
Feeding Density (%)		10-30	10-30	10-30	10-30
Water Added (t/h)		0.5-3	0.3-1.5	0.2-1	0.1-0.5
Stroke (mm)		8-36	10-30	12-28	9-17
Frequency (F)		240-380	240-420	240-450	280-460
Transverse slope of Deck		0°-5°	0°-8°	0°-10°	0°-10°
Motor	Model	Y70L-4	Y100L-4	Y90L-4	Y80L-4
	Power (kw)	1.1	1.1	1.1	0.55
Weight (t)		650	550	350	150
