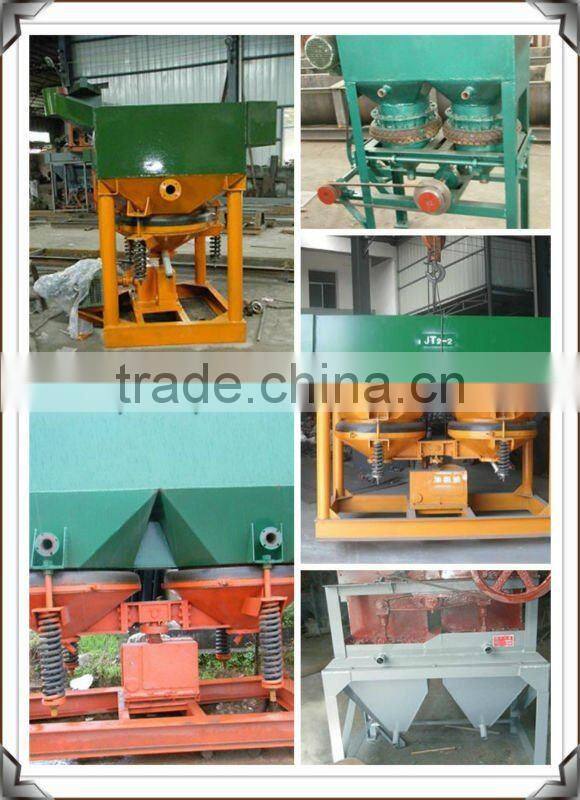

Lab saw tooth jigger/Laboratory ore mineral separation jigger
USD $1,300 - $5,100
/ Set
1 Set(Min.Order)
- 250 Set / Sets per Month
- Guangzhou
- T/T
You May Like
-
gold jigger stainless steel jigger
-
Laboratory Jigger/Laboratory mining equipment jigger machine
-
lab ore mineral concentration jigger machine/ good quality lab gold mineral jigger
-
hot supply lab saw tooth jigger machine for many mineral
-
best quality lab saw tooth jigger machine for many ore
-
top quality lab gold Jigger
Product Details
| Place of Origin | Jiangxi, China | Brand Name | oasis | |
| Model Number | XCT0.57-1 | Condition | New | |
| After-sales Service Provided | Overseas service center available |
Product Description
XCT diaphragm jig for gravity beneficiation, gravity dressing is based on the proportion of ore is different from re-settling velocity in the medium is also different, using the weight difference of mineral upon the completion of a mixture of layered mineral particles sorting work. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.
The device is suitable for sorting ferrous and nonferrous metals, chemicals, construction and metallurgical aspects of experimental research.
Model | Uite | XCT100/150 | XCT200/300 |
Length | mm | 150 | 300 |
Width | mm | 100 | 200 |
Stroke | mm | 20 | 32 |
Times of stroke | /min | 420 | 346 |
Jig chamber | 2 | 2 | |
Feed size | mm | 3 | 6 |
Area | m2
| 0.03 | 0.06 |
power | kw | 0.4 | 0.75 |
Water comsumption | L/S | 0.117 | 0.117 |
Water comsumption | L/S | 0.1 | 0.1 |
Caparating size | Kg/h | 700 | 700 |
Overall dimensions | mm | 752/520/1310 | 1110/520/1310 |
Weighe | kg | 150 | 175 |
