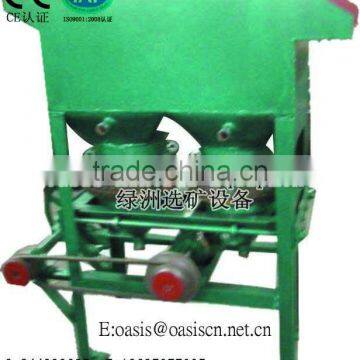

Laboratory Jigger/Laboratory mining equipment jigger machine

Specifications

Can achieve a good result in processing such as placer gold, tungsten, iron, tin, hematite, cope, tantalum-niobium

XCT diaphragm jig for gravity beneficiation, gravity dressing is based on the proportion of ore is different from re-settling velocity in the medium is also different, using the weight difference of mineral upon the completion of a mixture of layered mineral particles sorting work. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.
The device is suitable for sorting ferrous and nonferrous metals, chemicals, construction and metallurgical aspects of experimental research.





Model	Uite	XCT100/150	XCT200/300
Length	mm	150	300
Width	mm	100	200
Stroke	mm	20	32
Times of stroke	/min	420	346
Jig chamber		2	2
Feed size	mm	3	6
Area	m2	0.03	0.06
power	kw	0.4	0.75
Water comsumption	L/S	0.117	0.117
Water comsumption	L/S	0.1	0.1
Caparating size	Kg/h	700	700
Overall dimensions	mm	752/520/1310	1110/520/1310
Weighe	kg	150	175
