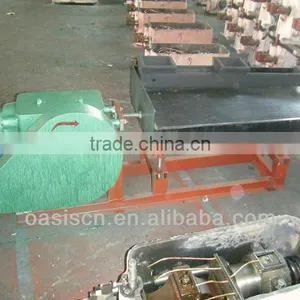

laboratory LY Shaking Table

Specifications

1.steel frame
2.high recovery as above 90%
3.high grade of gold ,iron, copper,chrome, Manganese ore
4.customers in goal

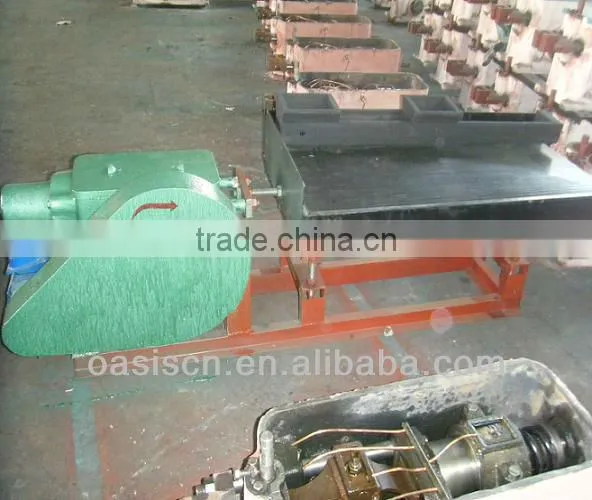

laboratory LY Shaking Table

Products Description

    LY shaking Table is one of the commonly used equipment to conduct gravity concentration for feasibility and test of ores for labs. and small beneficiation plant. It is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal, coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, crew separator, centrifugal separator and other equipment The device is based on the proportion of selected minerals deviation and asymmetry in the reciprocating movement and tilt of the bed was horizontal flow in layered performance of sorting. Have a different proportion of minerals in the bed surface obvious concentrate high quality, easy operation and adjustment and so on.
    Shaker surface structure of ore and mineral mud, steel and aluminum alloy material with a glass.

Technical parameters

Model	Unit	LY2100/1050	LY1100/500
Bed Size	mm	2100/1050/850	1100/500/430
Stroke	mm	12-28	9-17
Times of stroke	time/min	210-320	280-460
Slope	o	0-8	0-10
Feed size	Ore sand/ mm	2	2
	Slime/ mm	0.074	0.074
Feed density	%	10-30	10-30
t/h	t/h	0.2-1	0.1-0.5
power	kw	1.1	0.55
Capacity size	Ore sand/ t/h	0.4-0.8	0.1-0.2
	Slime //t/h	0.3-0.5	0.05-0.1
Overall dimensions	mm	3040/1050/1020	1530/500/700
Weight	kg	420	150
