laboratory shaking table features:
High quality, precision manufacturing
High quality of concentrates produced, high recovery

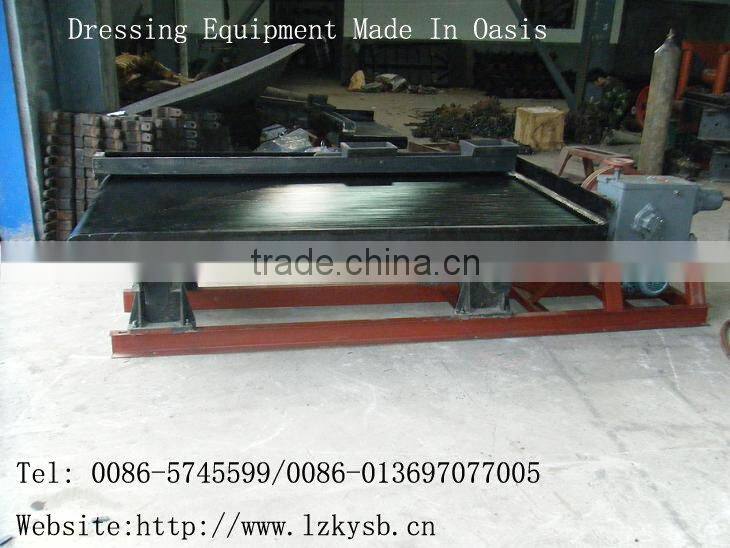

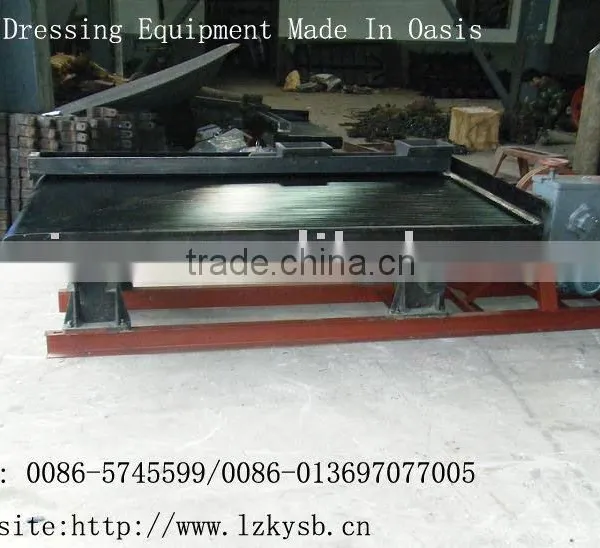

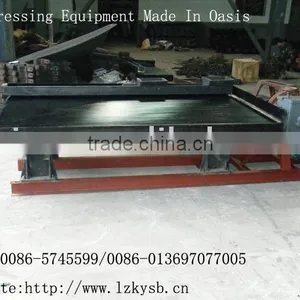

Laboratory shaking table is smaller than the ordinary shaking table, is one of the commonly used equipment to conduct gravity concentration for feasibility study and test of ores for labs and beneficiation plant. It is not only widely applied on separating Gold, Tungsten, Tin, Manganese, Iron, Titanium, Zircon, Tantalum, Barium, Chrome, Lead, Zinc, Mercury, Copper, Aluminum ,and other rare metals and the noble metal ore, also applied on sorting coal. It can carry out ore concentration operation independently and also can operate in conjunction with jig, spiral separator, centrifugal separator and other equipment. The performance is also the same as the ordinary shaking table.
Laboratory Shaking Table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, high recovery, convenient operation and adjustment and other features.
Laboratory shaking table Technical Parameters
Model | 6-S 3000×1620 | 6-S 2100×1050 | LY 1100×500 | |
Deck Size | Length(mm) | 3000 | 2100 | 1100 |
Transmission end width(mm) | 1620 | 1050 | 500 | |
Concentrate end width(mm) | 1110 | 850 | 430 | |
Beneficiation Area(m2) | 4.08 | 2 | 0.51 | |
Feeding Particle Size (mm) | Coarse sand Deck | 2-0.5 | 2-0.5 | 2-0.5 |
Fine sand Deck | 0.5-0.1 | 0.5-0.1 | 0.5-0.1 | |
Slime Deck | 0.1-0.037 | 0.1-0.037 | 0.1-0.037 | |
Feeding Amount (t/h) | Coarse sand Deck | 0.6-1.5 | 0.4-0.8 | 0.1-0.2 |
Fine sand Deck | 0.3-0.8 | 0.2-0.5 | 0.05-0.1 | |
Slime Deck | 0.2-0.4 | 0.1-0.2 | 0.03-0.05 | |
Feeding Density (%) | 10-30 | 10-30 | 10-30 | |
Water Added (t/h) | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
Stroke (mm) | 10-30 | 12-28 | 9-17 | |
Frequency (F) | 240-420 | 240-450 | 280-460 | |
Transverse slope of Deck | 0°-8° | 0°-10° | 0°-10° | |
Motor | Model | Y100L-4 | Y90L-4 | Y80L-4 |
Power (kw) | 1.1 | 1.1 | 0.55 | |
Weight (t) | 550 | 350 | 150 | |
