Product Details
| Place of Origin | Jiangxi, China | Brand Name | Oasis | |
| Model Number | XFD | Certification | ISO9001:2008 |
Product Description
Specifications
Shicheng Oasis Mineral Equipment Manufacturing Co., LTDTel:0086-13697077005Fax:0086-797-5791369

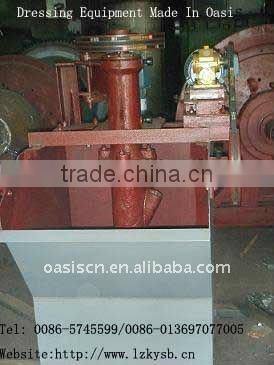

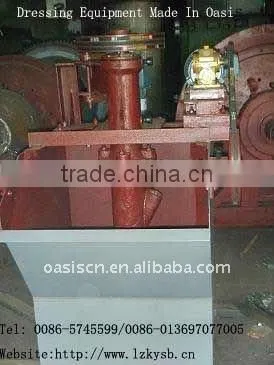

Lab Single flotation:
Cluster Series single slot-machine flotation, the company is development, development of the new generation products, the product design is reasonable, simple operation
It is very easy to use and maintenance, visual effects, accurate measurement is the geology, metallurgy, building materials, chemical industrial laboratory
Kind of a small amount of ore flotation devices ideal. The product line speed, a CVT impeller speed advantages can be shown
Model | Volume of tank | Impeller diamete | Impeller speed | Scraper speed | Power | Overall dimensions | Weight |
Granularity for 0.2 mm | L | mm | r/min | r/min | w | mm | kg |
XFD0.5L | 1.5 | 45 | 2130-2590 | 15/30 | 90 | 635/338/700 | 30 |
XFD0.75L | 0.75 | 45 | 2130-2590 | 15/30 | 90 | 635/338/700 | 30 |
XFD1L | 1 | 55 | 1700-2100 | 15/30 | 90 | 635/338/700 | 30 |
XFD1.5L | 1.5 | 60 | 1590-1910 | 15/30 | 90 | 635/338/700 | 33 |
XFD3L | 3 | 70 | 1544-1890 | 8/20 | 120 | 683/350/822 | 50 |
XFD8L | 8 | 100 | 1400 | 8.6/13/17 | 250 | 740/350/867 | 71 |
XJK3A | 420 | 300 | 483 | 12 | 2.2kw | 820/820/1360 | 320 |
