Detailed Product Description

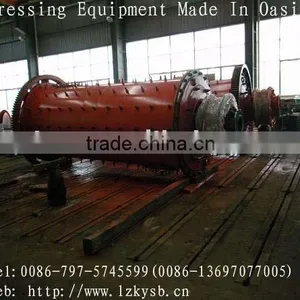

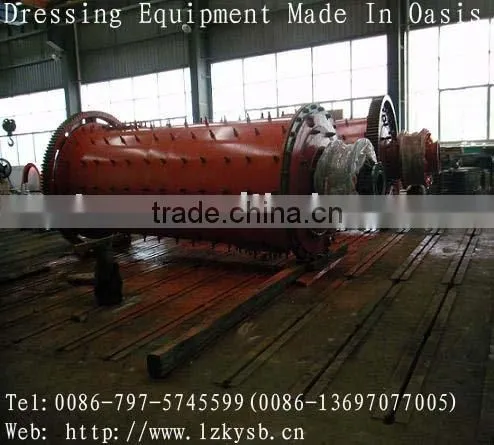

A equipment to grind the crushed materials.There aregrate type and overfall type ddue to different ways of discharging material.
Features
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
Technical Specifications
Model | Size | Shell rotation speed (r/min) | Ball load (t) | Discharging size (mm) | Feeding size (mm) | Capacity (t/h) | Power (kw) | Dimension | Weight (kg) |
MQG(Y)0918 | Φ900×1800 | 39.3 | 1.6 | 0.074~0.3 | 0~15 | 0.5~1.3 | 18.5 | 900×1920 | 7000 |
MQG(Y)1212 | Φ1200×1200 | 34.8 | 2 | 0.074~0.3 | 0~20 | 0.8~2.0 | 18.5 | 3987×2150 | 6650 |
MQG(Y)1224 | Φ1200×2400 | 34.8 | 4 | 0.074~0.3 | 0~20 | 1.5~3.7 | 30 | 5480×2335 | 8200 |
MQG(Y)1328 | Φ1300×2800 | 32 | 5.3 | 0.074~0.3 | 0~20 | 1.5~3.8 | 45 | 5620×2270 | 10365 |
MQG(Y)1515 | Φ1500×1500 | 27.6 | 5.9 | 0.074~0.3 | 0~25 | 1.8~4.5 | 45 | 4771×2755 | 11037 |
MQG(Y)1530 | Φ1500×3000 | 27.6 | 7.8 | 0.074~0.3 | 0~25 | 3.3~8.8 | 80 | 6984×3038 | 15522 |
MQG(Y)1826 | Φ1830×2600 | 25.2 | 10.2 | 0.074~0.3 | 0~25 | 3~9 | 110 | 7856×3845 | 30608 |
MQG(Y)1834 | Φ1830×3400 | 25.2 | 13.4 | 0.074~0.6 | 0~25 | 4~11 | 155 | 8756×3845 | 33583 |
MQG(Y)1836 | Φ1830×3600 | 25.2 | 14.2 | 0.074~0.6 | 0~25 | 5.6~13.7 | 155 | 8956×3845 | 34283 |
MQG(Y)2122 | Φ2100×2200 | 23.8 | 11.2 | 0.074~0.6 | 0~25 | 3.5~25 | 155 | 7455×3920 | 33035 |
MQG(Y)2130 | Φ2100×3000 | 23.8 | 15.5 | 0.074~0.6 | 0~25 | 4.5~33 | 180 | 8290×3970 | 37193 |
MQG(Y)2137 | Φ2100×3750 | 23.87 | 19.4 | 0.074~0.6 | 0~25 | 5.0~38 | 210 | 8388×3970 | 39000 |
MQG(Y)2140 | Φ2100×4000 | 23.8 | 20.7 | 0.074~0.6 | 0~25 | 5.0~40 | 210 | 8688×3970 | 39800 |
MQG(Y)2727 | Φ2100×2700 | 21.6 | 23 | 0.074~0.6 | 0~25 | 10~100 | 245 | 9485×5609 | 80100 |
MQG(Y)2736 | Φ2700×3600 | 21.6 | 30.8 | 0.074~0.5 | 0~25 | 15~118 | 380 | 10385×5609 | 88100 |
