Specifications
Oasis Mineral Equipment Manufacturing Co., LTD are produce Mineral Equipment / Ore Dressing Machinery86-797-5745599/13697077005
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599 )are production

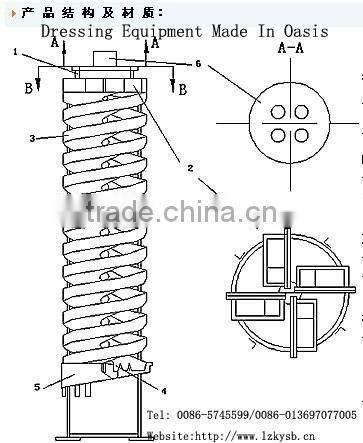

Spiral Chute which combines the advantages of spiral concentrator, shaking table and centrifugal concentrator, is a new beneficiation equipment with the advanced level.
It is applicable for separation of granularity ranged from 4mm to 0.02mm metallic minerals such as iron, ilmenite, chromite, tungsten-tin ore, niobium-tantalum ore, gold placer, seashore monazite, rutile and zircon as well as other metallic and non-metallic minerals with adequate difference of specific gravity.

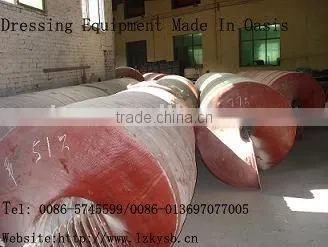

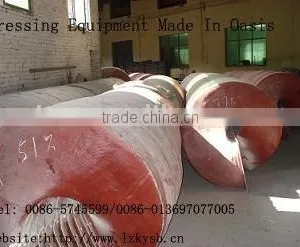

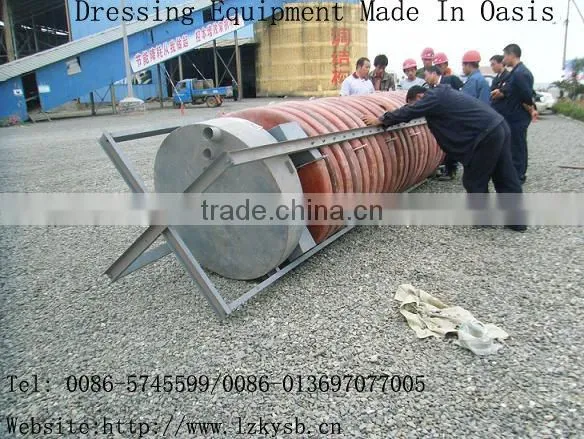

Spiral Chute is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are small footprint, without power, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes. it is especially for concentrating sand ore in beach, riverside, seashore and stream.
Features:
High recovery ratio, High efficiency beneficiation
Small footprint, Without power
Low operating cost and long working life
Widely use range
Simple installation and easy maintenance
Rust and corrosion resistant;
No noise and no pollution,
Model | BLL-2000 | BLL-1500 | BLL-1200 | BLL-900 | BLL-600 | BLL-400 | |
Spiral Diameter (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | |
Spiral Pitch (mm) | 1200 | 720/540 | 720/540 | 675/540 | 450/360 | 240/180 | |
Max Spiral Start | 3 | 4 | 4 | 4 | 3 | 2 | |
Max turn each start | 4 | 5 | 5 | 5 | 5 | 5 | |
Feeding Particle Size (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
Feeding Density (%) | 20-45 | 25-50 | 25-55 | 25-55 | 25-55 | 25-55 | |
Capacity (t/h) | 15-40 | 6-8 | 4-6 | 2-3 | 0.8-1.2 | 0.1-0.2 | |
Outline Size
| L(mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 |
W(mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
H(mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | |
Weight (kg) | 900 | 800 | 600 | 400 | 150 | 50 | |
