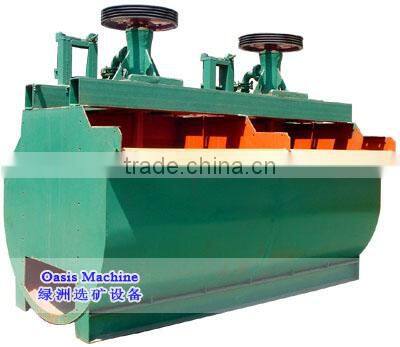

Help CenterMineral Air Flotation Machine for Gold,copper ,lead ,zinc Ore.High Efficiency Copper Air Flotation Machine Manufacturer
Related Products
-
Spontaneous Imbibe Flotation Machine Of Mechanical Agitation/Mineral Processing Flotation Machine/Gold Ore FlotatioUS$ 1,000 - 25,000MOQ: 1 Set -
Flotation Machine Separator Machine With Good Quality,Lead Zinc Ore Flotation MachineUS$ 200 - 20,000MOQ: 1 Set
-
Energy Saving Flotation Machine Price ,Gold Flotation Cell,Spontaneous Imbibe Flotation Machine Of Mechanical AgitationUS$ 200 - 20,000MOQ: 1 Set
-
Mineral Seperator Processing Mixing Agitator Tank,Stainless Steel Agitated Agitator Agitation Leaching Tank With Best PriceUS$ 200 - 20,000MOQ: 1 Set
-
Mineral Processing Plant Copper Ore Froth Flotation MachineUS$ 6,250 - 1,230,000MOQ: 1 Set
Air flotation machine works, slurry is inhaled from the bottom of the cell to the space between impellers. Meanwhile, the low-pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole cell. It is widely used in enrichment for non-ferrous metals, black metals and non-metals in medium and big flotation factories for the roughing and scavenging concentration.
Air flotation machine Technical Specifications
Model | Effective volume (m³) | Capacity (m³) | Diameter of impeller (mm) | Impeller rotation (r.p.m) | Pressure of blower (Kpa) | Maximum air inhalation (m3/m2.min) | Power of agitation (Kw) | Power of scrapper (Kw) | Weight of each cell (kg) |
LZBSK2 | 2.2 | 0.5-3 | 420 | 260 | ≥15 | 2~3 | 5.5 | 1.1 | 1750 |
LZBSK4 | 4 | 0.5-4 | 500 | 220,230 | ≥17 | 3~6 | 7.5 | 1.1 | 2568 |
LZBSK6 | 6 | 1.0-6 | 650 | 197 | ≥27 | 4~10 | 18.5 | 1.1 | 3570 |
LZBSK8 | 8 | 1.0-8 | 650 | 180,190 | ≥21 | 15 | 4539 | ||
LZBSK16 | 16 | 2.0-15 | 750 | 160,170 | ≥27 | 6~15 | 30 | 1.1 | 8131 |
LZBSK24 | 24 | 7.0-20 | 830 | 154,159 | ≥29 | 8~18 | 37 | 1.1 | 9546 |
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
