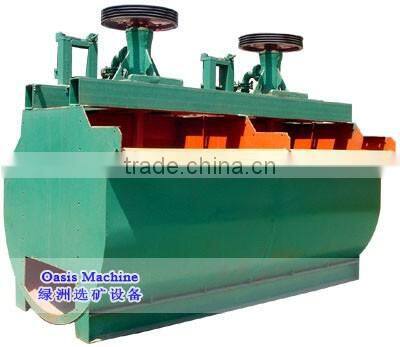

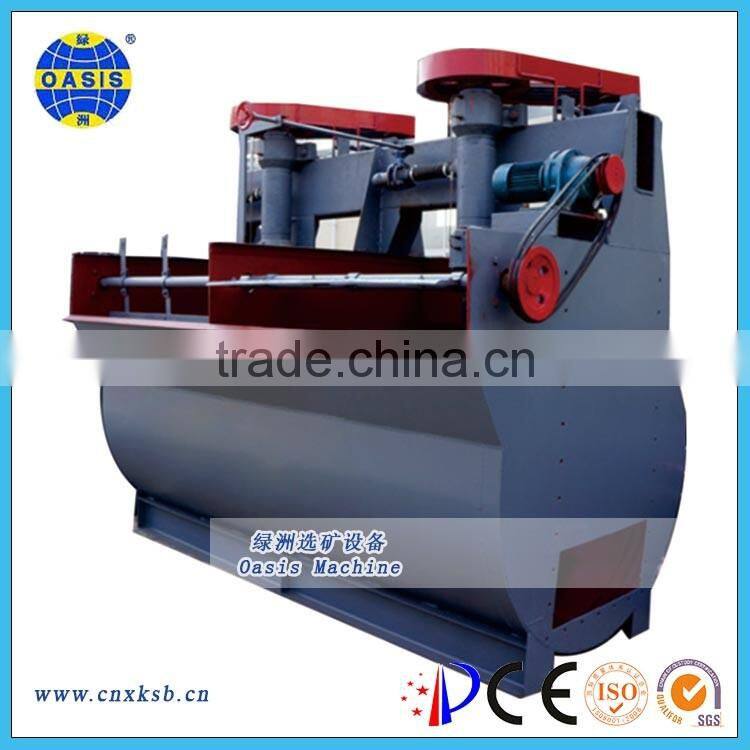

Flotation Machine Separator Machine with Good Quality,Lead Zinc Ore Flotation Machine
- 50 Set / Sets per Month
- xiamen
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Flotation Separator | Production Capacity: | refer to specification |
Place of Origin: | Jiangxi, China | Brand Name: | Oasis | Model Number: | air flotation machine |
Voltage: | refer to specification | Power(W): | refer to specification | Dimension(L*W*H): | refer to specification |
Weight: | refer to specification | Certification: | CE,ISO,SGS | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Air flotation machine works, slurry is inhaled from the bottom of the cell to the space between impellers. Meanwhile, the low-pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole cell. It is widely used in enrichment for non-ferrous metals, black metals and non-metals in medium and big flotation factories for the roughing and scavenging concentration.
Air Flotation Machine Technical Specifications
Model | Effective volume (m³) | Capacity (m³) | Diameter of impeller (mm) | Impeller rotation (r.p.m) | Pressure of blower (Kpa) | Maximum air inhalation (m3/m2.min) | Power of agitation (Kw) | Power of scrapper (Kw) | Weight of each cell (kg) |
LZBSK2 | 2.2 | 0.5-3 | 420 | 260 | ≥15 | 2~3 | 5.5 | 1.1 | 1750 |
LZBSK4 | 4 | 0.5-4 | 500 | 220,230 | ≥17 | 3~6 | 7.5 | 1.1 | 2568 |
LZBSK6 | 6 | 1.0-6 | 650 | 197 | ≥27 | 4~10 | 18.5 | 1.1 | 3570 |
LZBSK8 | 8 | 1.0-8 | 650 | 180,190 | ≥21 | 15 | 4539 | ||
LZBSK16 | 16 | 2.0-15 | 750 | 160,170 | ≥27 | 6~15 | 30 | 1.1 | 8131 |
LZBSK24 | 24 | 7.0-20 | 830 | 154,159 | ≥29 | 8~18 | 37 | 1.1 | 9546 |
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?
Oasis Mineral Equipment company's other mining machine:
