Help CenterUniversal Ring Type Crusher/Underground Crusher Machine
Related Products
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599
spring cone crusher descriptions:
Spring Cone crusher is suitable to crush various kinds of ores and rocks of medium or above medium hardness. Compare with jaw crusher, cone crusher is of stable structure, high efficiency, easy adjustment, and use economically, etc.

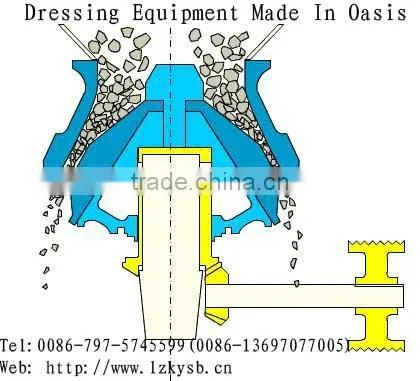

Working Principle of spring Cone Crusher:
The spring cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency than jaw crusher. The movable cone is supported by spherical bearing and fixed on an hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are drived by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is drived by motor through v-belts.The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials is discharged from the diacharge hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole, consequantly the output size is determined.
spring cone crusher specifications:
Type |
Max. input (mm) |
Adjusting range of output (mm) |
Capacity (t/h) |
Motor power (kW) |
weight (t) |
Overall dimensions (L×W×H)(mm) |
|
PYB |
600 |
65 |
12-25 |
12-25 |
30 |
5 |
2800×1300×1700 |
PYD |
35 |
3-15 |
5-23 |
5.5 |
|||
PYB |
900 |
115 |
15-50 |
50-90 |
55 |
10.2 |
3050×1640×2350 |
PYZ |
60 |
5-20 |
20-65 |
10.2 |
|||
PYD |
40 |
3-13 |
15-50 |
10.3 |
|||
PYB |
1200 |
145 |
20-50 |
110-200 |
110 |
24.7 |
4152×2300×2980 |
PYZ |
100 |
8-26 |
50-150 |
25 |
|||
PYD |
50 |
3-15 |
18-105 |
25.6 |
|||
PYB |
1750 |
215 |
25-60 |
280-480 |
160 |
50.3 |
4870×3800×4192 |
PYZ |
185 |
10-30 |
115-320 |
50.3 |
|||
PYD |
85 |
5-15 |
75-230 |
50.4 |
|||
PYB |
2200 |
300 |
30-60 |
590-1000 |
260-280 |
80 |
7705×3430×4852 |
PYZ |
230 |
10-30 |
200-580 |
80 |
|||
PYD |
100 |
5-15 |
120-340 |
81.4 |
|||
