Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > KDCL15 High Precision Cnc Lathe Machine Price

KDCL15 High Precision Cnc Lathe Machine Price

Name: KDCL15 High Precision Cnc Lathe Machine Price
Brand: MACH
SKU: 141436154
Availability: InStock

KDCL15 High Precision Cnc Lathe Machine Price thumbnail-1

KDCL15 High Precision Cnc Lathe Machine Price photo-1

Negotiable MOQ: 1 Quart (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Dalian Mach Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 360MM

Place of Origin Liaoning, China

Brand Name MACH

Model Number KDCL15

Voltage 380/220V

Power(W) 5.5/7.5kw

Dimension(L*W*H) 2700x1460x1680mm

Weight 3600kgs

KDCL15 High Precision cnc lathe machine price

Product Features:

1.Use Fanuc control system and servo motors
The cnc lathe machine can make high speed ,precision and high efficiency cutting parts.
2.An automatic timely lubrication device is supplied for the machine.
3.It has a stainless steel inner protection and a totally sealed outside protection.
4.Differrent control and parts can be combined according to customers’ requirement.

Product description:

ITEMS	KDCL-15
Max. swing over bed	Ø360 mm
Max. cutting dia. For disc parts	Ø250 mm
Max. cutting dia. For axle parts	Ø150 mm
Maximum turned length for axle parts	300 mm
Max. cross travel (X)	150 mm
Max. longitudinal travel (Z)	320 mm
Spindle bore	Ø56mm
Spindle nose	A2-5
Taper bore of spindle	M.T.No.5
Spindle speed	6000r/min
Chuck dia.	6″
Rapid feed for axis X	12m/min
Rapid feed for axisZ	20m/min
Number of tool post	8
Outside dia. Cutting tool shank	25×25mm
Max. inner dia. Cutting tool shank	Ø25 mm
Guiide ways X&Z	Precision linear ball rail
Servo mator for X axis	8Nm
Servo mator for Z axis	12Nm
Tailstock sleeve dia.	Ø80 mm
Tailstock sleeve travel	90 mm
Tailstock center type	M.T.No.4
Type of spindle motor	Servo
Spindle motor power	5.5/7.5KW
Bed structure	45° slant bed
Min. Input	0.001 mm
Repeatability	±0.003mm
Capacity for coolant	100L
Surface roughness	≤Ra0.8μm(Nonferrous)
	≤Ra1.6μm(Steel part)
Overall dimensions(L×W×H)	2700×1460×1680 mm
Net weight	3600 Kg

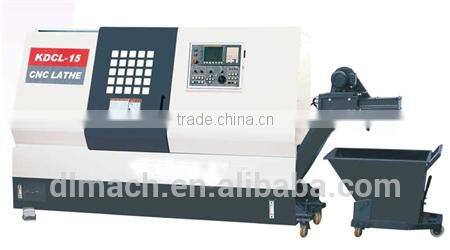

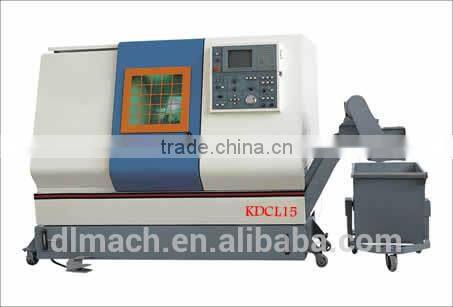

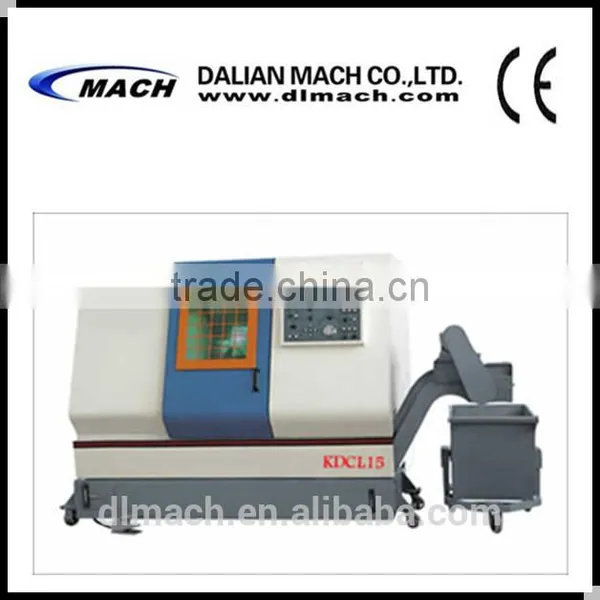

Pictures:

Certificate:

CE certificate & ISO Certificate

About our Company:

Our factory is one of biggest professional manufactuer of producing CNC lathe in China. Our CNC lathe are exported to many countries. Such as: USA, Canada, Portugal, Brazil, Chile, South Africa, Egypt, Ghana, Indonesia, Malaysia, India, Russia, Belarus,etc.
