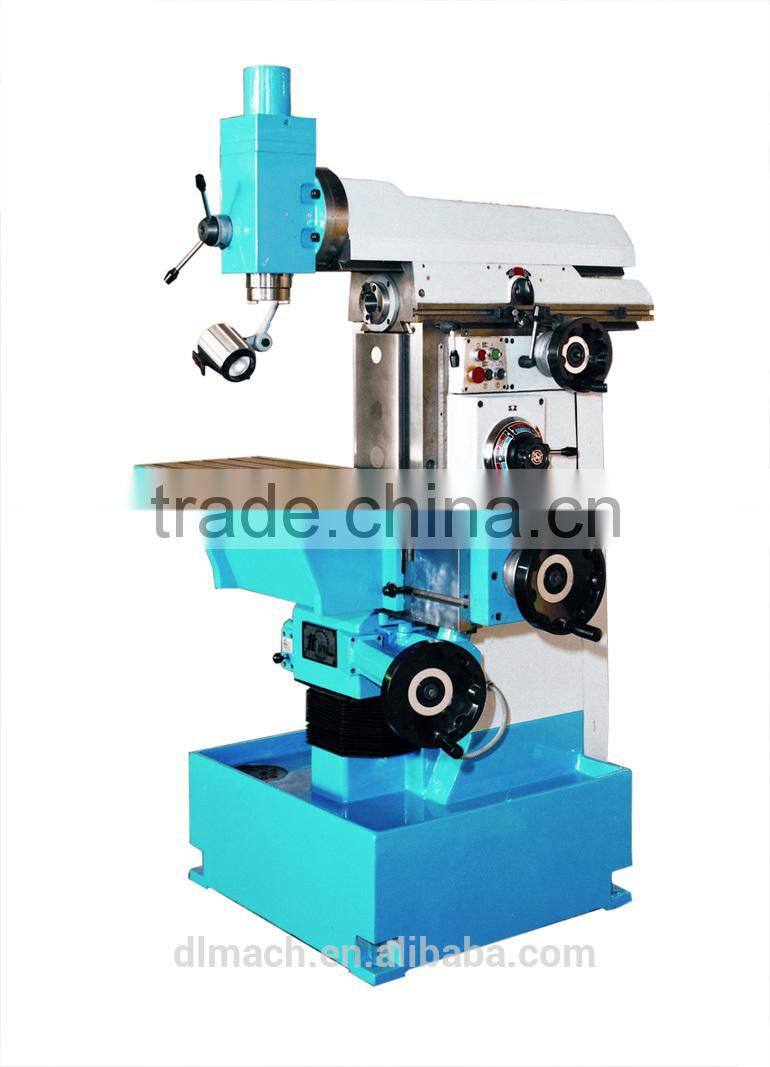

Universal tool milling machine X8130A
Main Features for Machine :X8130A
This machine is a versatile machine of better universality,extensively used for milling flat,inclined surfaces and slots on metal parts and is suitable for machining tolls,fixtrues and moulds as well as machine parts of complicated shapes in instruments and meters manufacturing jplants and machinery building works
Main specifications
| X8130A | |
| Horizontal working surface | 320x750mm |
| T slot no./width/distance | 5 /14mm /60mm |
| Vertical working surface | 225x830mm |
| T slot no./width/distance | 2 /14mm /126mm |
| Max. longitudinal travel( by hand/power) | 405/395mm |
| Max. vertical travel( by hand/power) | 390/380mm |
| Max. cross travel | 200mm |
| spindle taper bore | ISO40 7:24 |
| Max. swivel of vertical milling head | ±60° |
| Distance from axis of horizontal spindle to table surface (Min./Max.) | 35/425mm |
| Distance from vertical table to guideway | 188mm |
| Quill movement | 80mm |
| Number of spindle speeds | 12 |
| Range of spindle speeds | 40-1600r/min |
| Main drive motor power | 2.2kw |
| Speed of Main drive motor | 1430r/min |
| Overall dimension | 1170x1210x1600mm |
| Net weight | 1100kgs |
Pictures of machine
Standard Equipments
complete tool
1 pce each-spring collet
1 pce each-reducing sleeves
1 pce each-cutter arbors
Special equipments
universal dividing head
machine table
rotary table
universal boring head
universal angular table
chip tray
30% downpayment by T/T in advance.
70% by T/T before shipment.
CE certificate & ISO9001 certificate
We will supply enough spare parts and accessories with our cnc lathe when shipment. Within one year after receiving our cnc lathe, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
About our company:
We have a group of professional engineers in charge of technology, manufacturing, installing, testing of cnc lathe. So we can guarantee that our cnc lathe will be runned on good performance based on high quality.
Founded in 1948, Our factory entered the top 8 cnc lathe and lathe machine builders in the world. Turly a leader in the cnc lathe and lathe machine industry worldwide. Our CNC lathe sell to more than 100 countries and regions worldwide. Our main products are CNC Lathe, Gap-bed Lathe, Universal Lathe, Vertical Machining Centers,etc.
