120T Servo Motor Energy-saving Plastic
Injection Moulding Machine
Main Specifications of Plastic Injection Moulding Machine
Machine Type | BL120EK | |||||
Injection Unit | International specification | UNIT | 430/1200 | |||
Screw diameter |
| A | B | C | ||
mm | 36 | 40 | 45 | |||
Screw ratio |
| 23 | 20 | 18 | ||
Theoretical injection capacity | cm3 | 205 | 255 | 320 | ||
Shot weight(PS) | g | 190 | 235 | 295 | ||
oz | 6.6 | 8.2 | 10.3 | |||
|
|
| ||||
Injection rate | g/s | 106 | 131 | 166 | ||
Injection pressure | Mpa | 211 | 171 | 135 | ||
Injection stroke | mm | 200 | ||||
Max. Screw speed | r/min | 240 | ||||
Clamping Unit | Clamping force | Ton | 122 | |||
kN | 1200 | |||||
Opening stroke | mm | 420 | ||||
Space between tie bar | mm×mm | 460×410 | ||||
Min. mould height | mm | 180(145) | ||||
Max. mould height | mm | 460(425) | ||||
Max. distance Platen | mm | 880(845) | ||||
Ejector stroke | mm | 130 | ||||
Ejector force forward | kN | 45 | ||||
Ejector force back | kN | 34 | ||||
Number of ejector bar | PC | 5 | ||||
Electric Power
| Sys. Pressure | MPa | 16 | |||
Pump Motor | kW | 17 | ||||
Heater power | kW | 7.8 | ||||
Others |
| Number of temp. control zones | 3+1 | |||
Oil tank capacity | L | 180 | ||||
Machine dimensions(L×W×H) | m×m×m | 4.35×1.35×1.85 | ||||
Machine weight | Ton | 3.5 | ||||

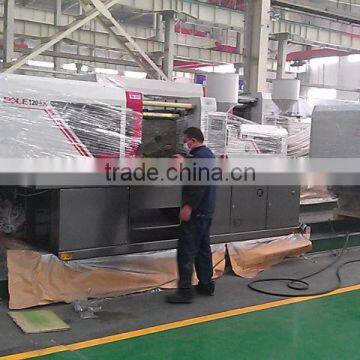

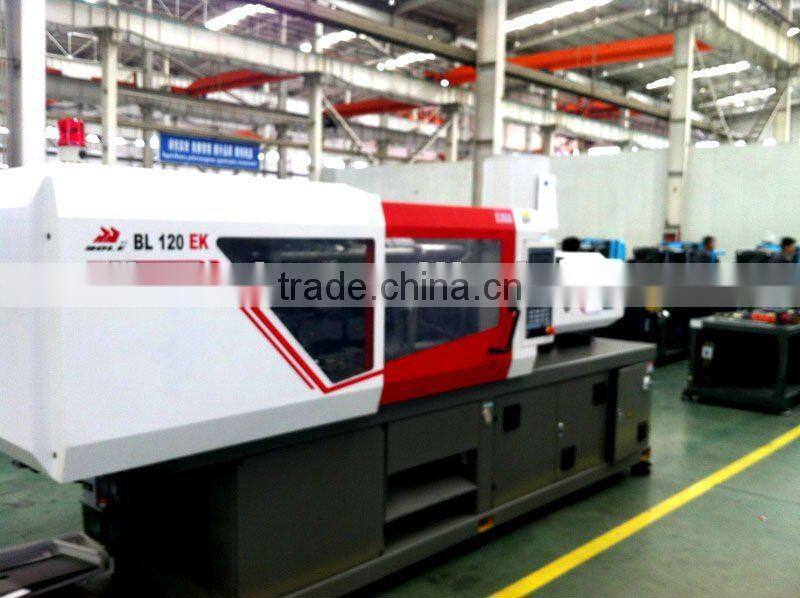

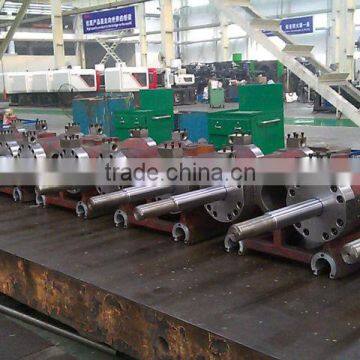

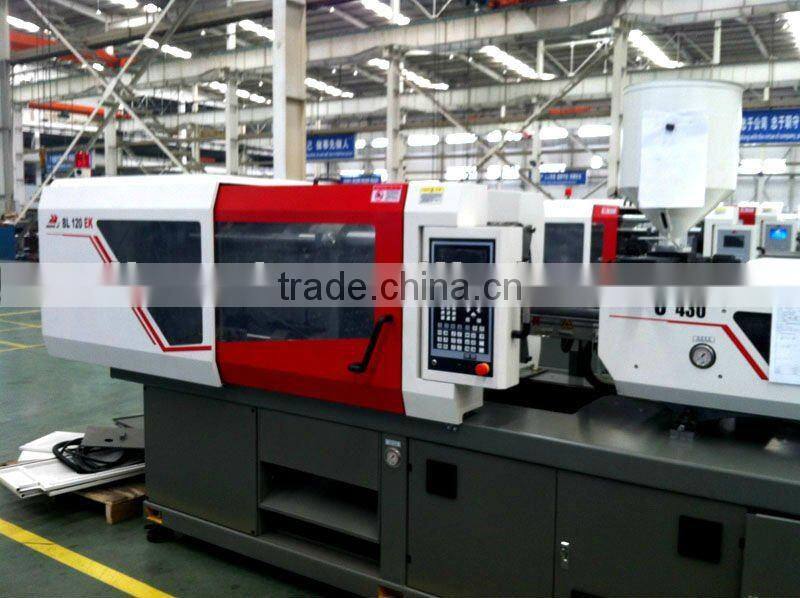

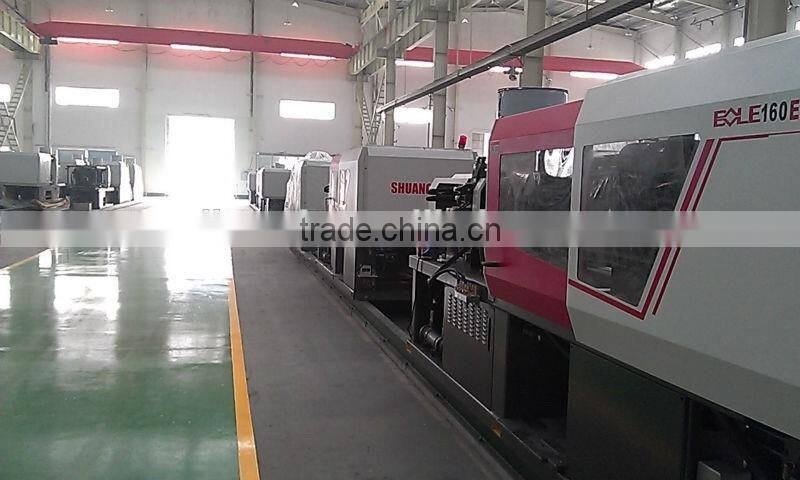

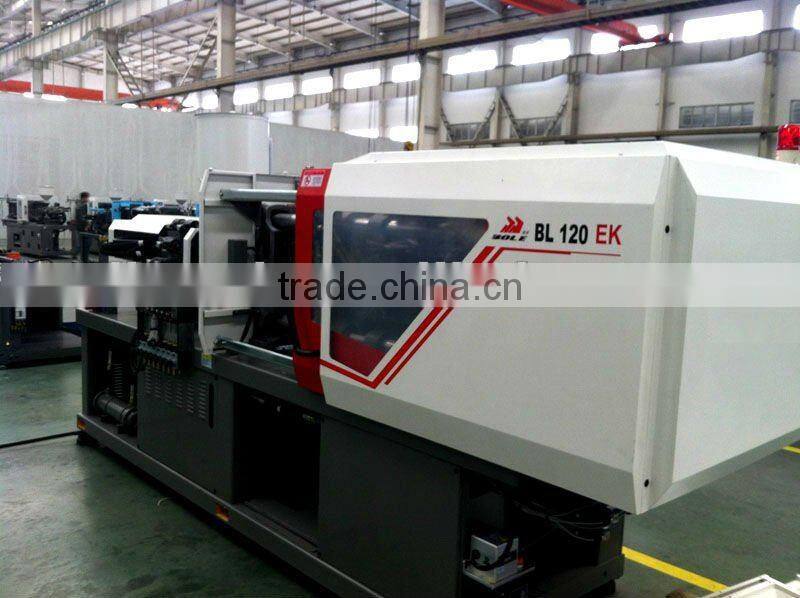

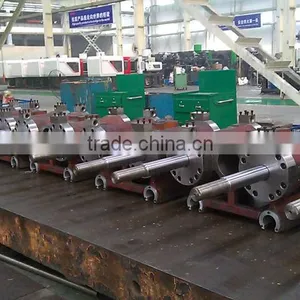

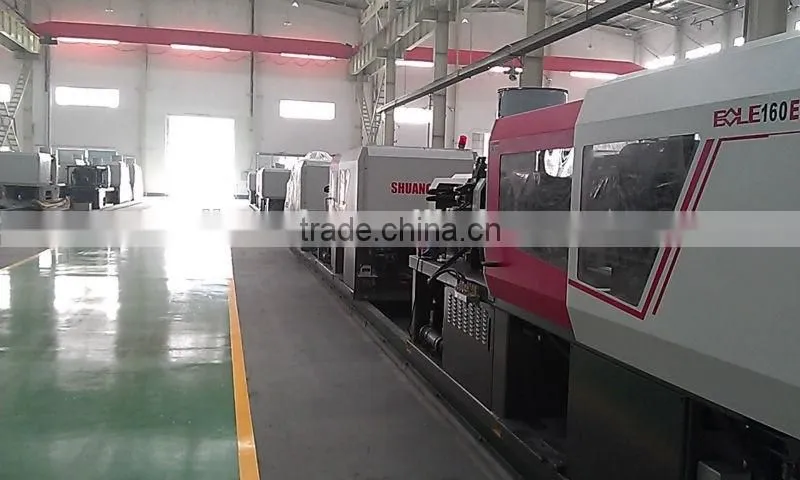

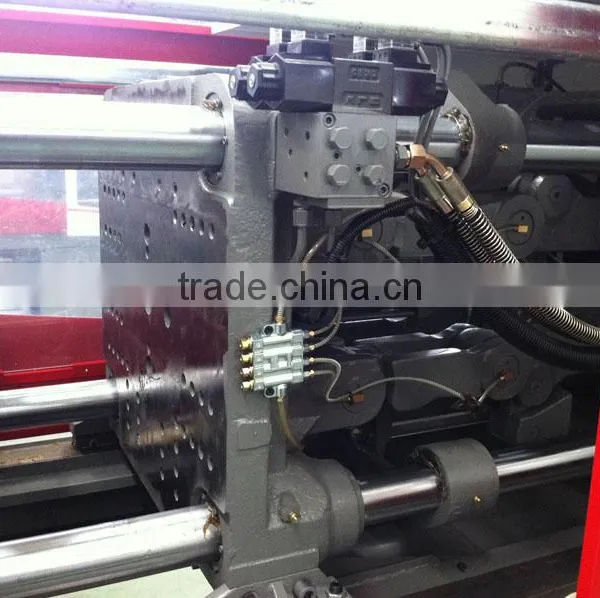

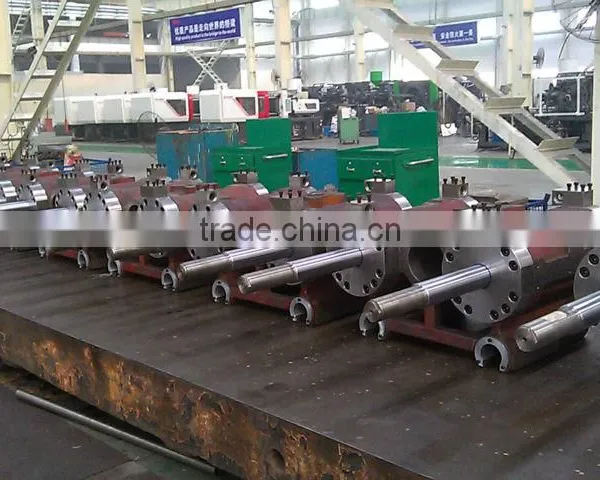

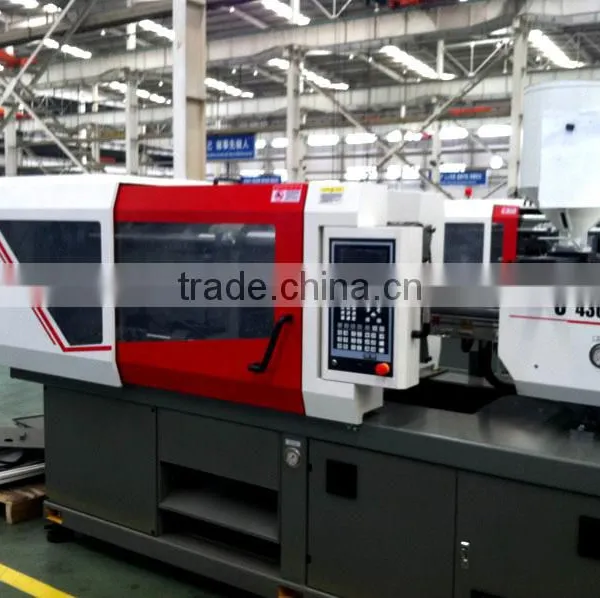

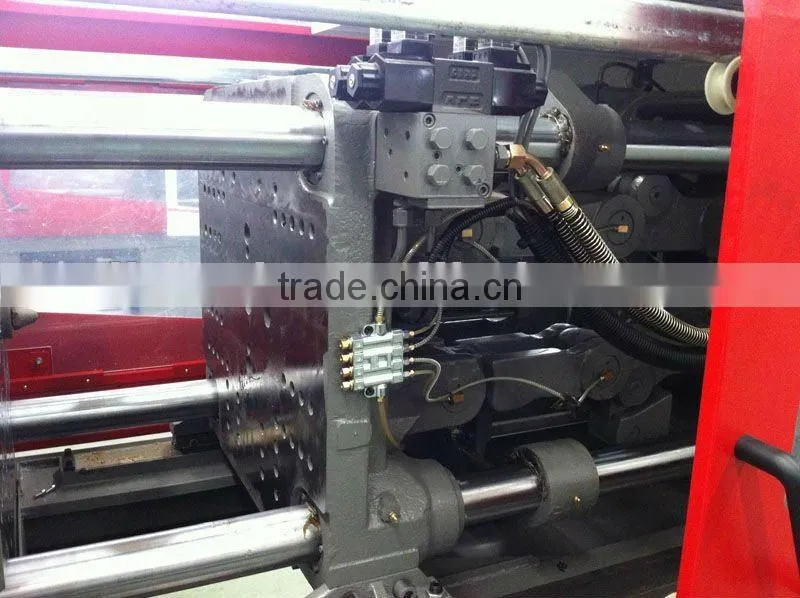

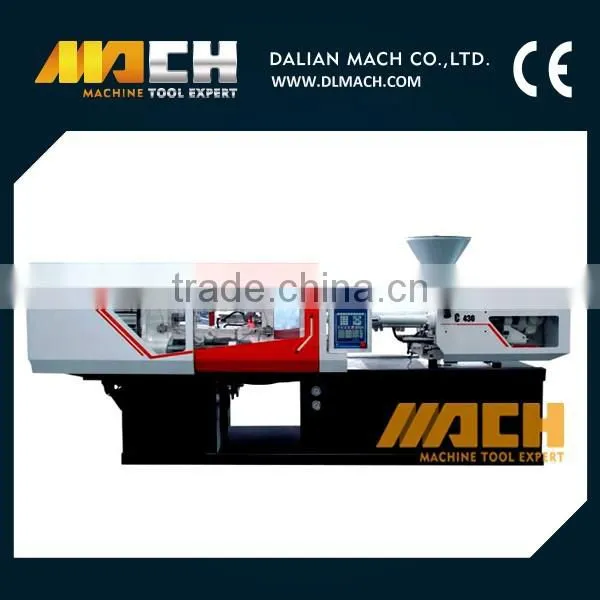

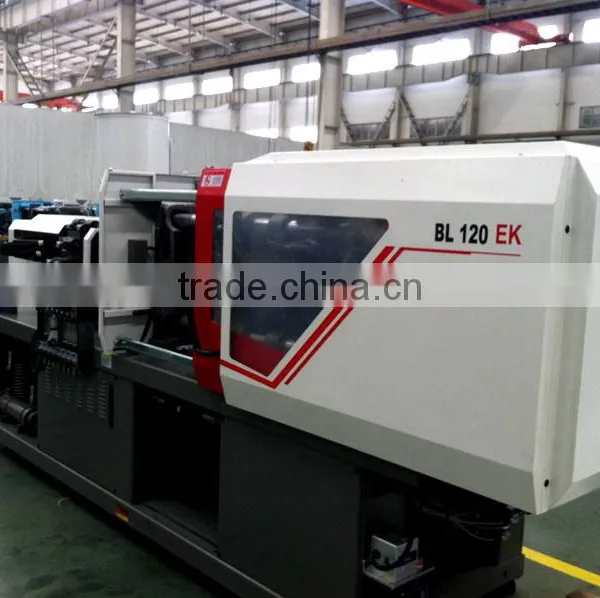

Pictures of Plastic Injection Moulding Machine

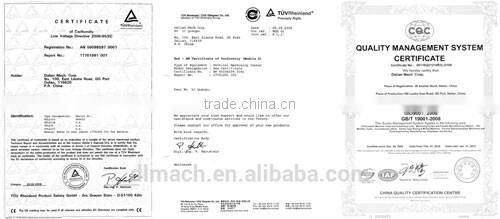

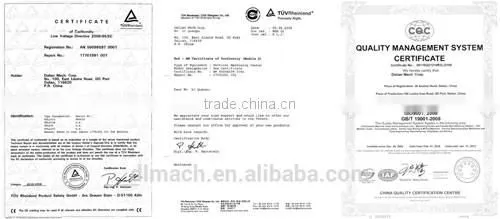

CE certificate & ISO9001 certificate

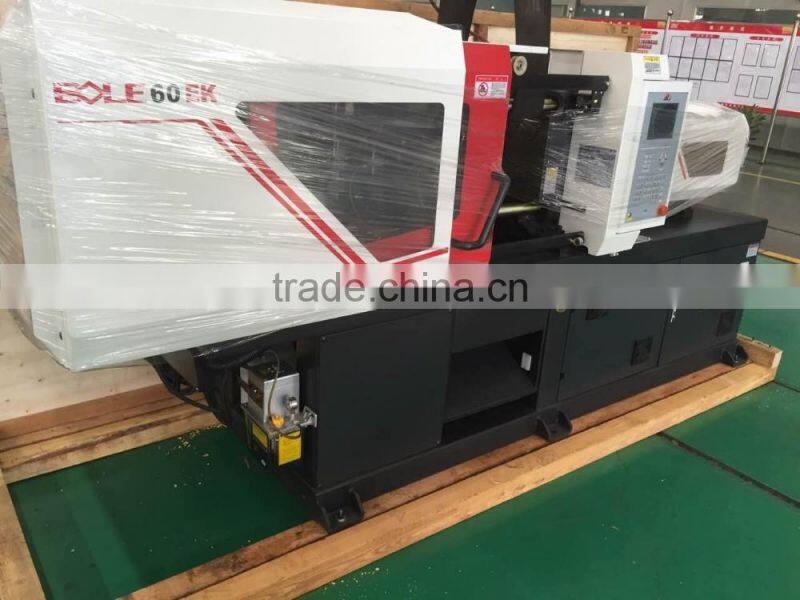

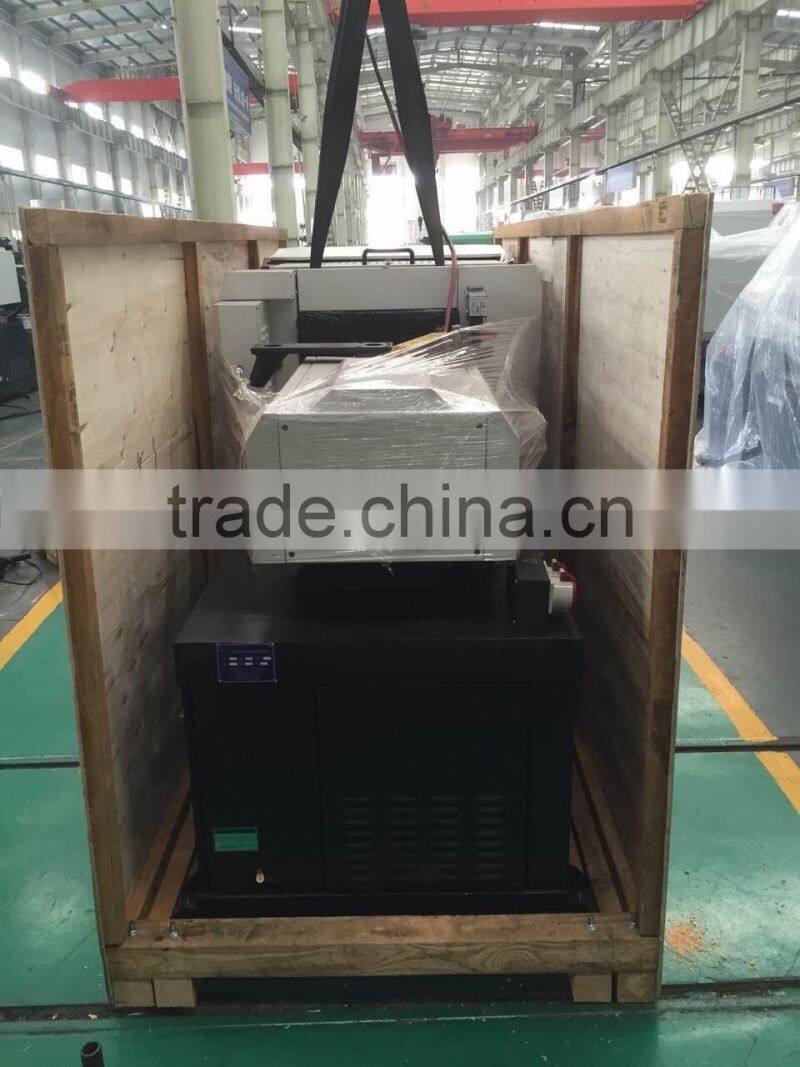

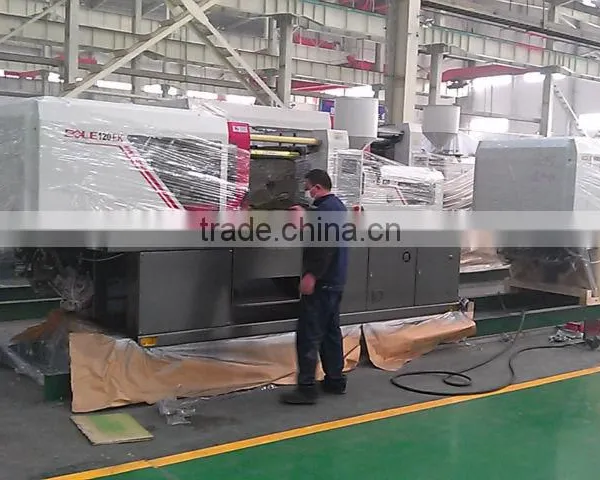

Packaging of Plastic Injection Moulding Machine
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the plastic injection moulding machines. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.
- The plastic injection moulding machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the plastic injection moulding machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the plastic injection moulding machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the plastic injection moulding machines, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the plastic injection moulding machines within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.

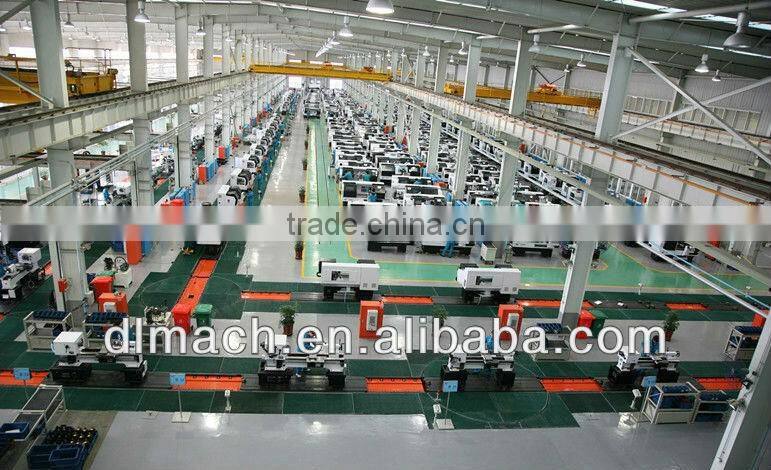

About Our Company
We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our Plastic Injection Moulding Machine will be runned on good performance based on high quality.
Our plastic injection moulding machines are widely exported to more than 70 countries & regions, including U.S.A., Canada, Germany, Italy, Spain, G.B., France, Turkey, Australia, Korea and so on, especially Europe & American cover the main part of the market.
Q:Why choose our plastic injection moulding machine?
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving

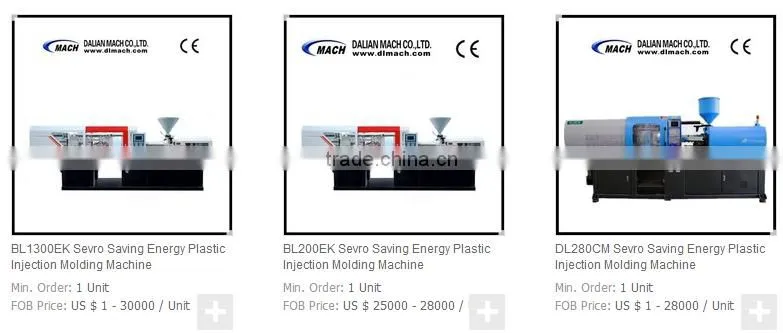

Similar Products: More Plastic Injection Moulding Machine Please Click The Image Below
