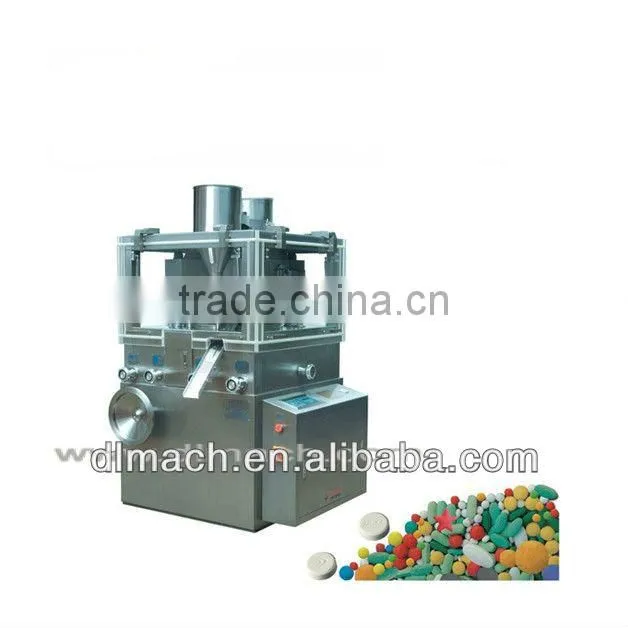

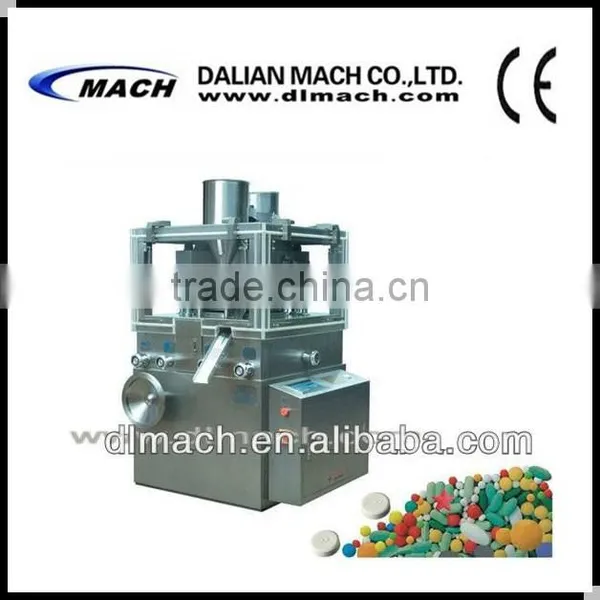

ZPY-23E Rotary Tablet Press

ZPY-23E Rotary Tablet Press

1. Brief Introduction:
This machine is belong to double-press automatic rotary model,it press
granular materials into round-shaped tablets and irregular-shaped
tablets(including double-sides carving tablets).It is widely suitable
for the industries such as medicine, food and electronic etc.This
machine conforms to "GMP"standard.

2. Features:
a. Full-enclosed stainless cover with dust collector device.
b. All drive device are sealed inside the stand,and fimmersed in the
oil and run.
c. Adopts frequency control and electro-magnetic clutch and the
machine will stop automatically if it overload.
d. The hydraulic system can assure the stable of the system.
e. The turret rotation surface is specially antisepticised to avoid pollution.

3. Main Specification:
Max. Production Capacity:      83,000 pcs/hour  ( 46 tablets/ per
rotary , It's double press )
Max. Filling  Depth:               17mm
Max. Working Pressure:          80KN ( hydraulic pressure )
Max. Pressing Diameter:         26mm
Max. Thickness of Tablet:        6mm
Speed of Rotary Tablet:           20-35 rpm
Motor:                                    4kw, 380V, 50Hz, 3 Phase
Overall Dimension:                  1080 x 910 x 1700 mm
Weight of machine:                 1800 Kgs

We can also supply Automatic Tablets/Capsules Blister Packing Machine, Automatic Capsule Filling Machine, Sugar Coating Machine,etc. Welcome to contact us.
