Pharmaceutical Packaging Production Line
US$ 1 - 60,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Medical
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DPP150D Automatic Capsule Blister Packing MachineUS$ 10,000 - 15,000MOQ: 1 Twenty-Foot Container -
NJP800A Pharmaceutical Automatic Capsule Filling MachineUS$ 20,000 - 25,000MOQ: 1 Unit
-
NJP1200A High Quality Automatic Capsule FillerUS$ 20,000 - 25,000MOQ: 1 Unit
-
DXD-ZB-III Automatic Alcohol Pad Folding & Making MachineUS$ 17,880 - 21,080MOQ: 1 Unit
-
DXD-ZB-III Automatic Alcohol Pad Folding & Making MachineUS$ 17,880 - 21,080MOQ: 1 Unit
Condition
New
Application
Medical
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
15KW
Place of Origin
Tianjin, China
Brand Name
MACH
Model Number
DPP260-ZH120
Dimension(L*W*H)
4800x1250x2000mm
Weight
3000kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Pharmaceutical Packaging Production Line
Features

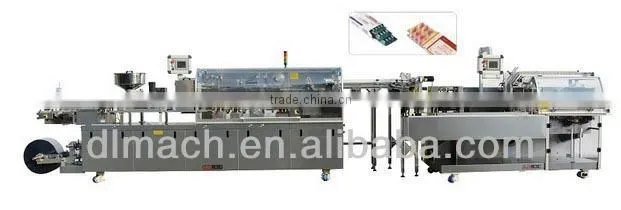

This Medical Blister Packaging Line is combined with the DPP260K Blister Machine and ZH120 Cartoner.
·Processes all common solid dose products and all types of forming material.
·The machine can achieve 180 minutes of uninterrupted production thanks to Blister module with forming material reels of up to 600mm in diameter and waste material trimming cutter (optional).
·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.

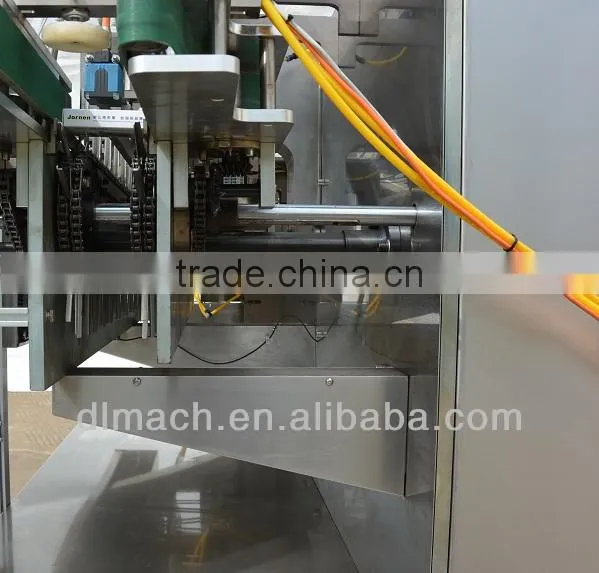

·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to two vacuum arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed.
·Since this Line adopts transfer belt to connect the Blister Machine and Cartoner, it provides easy changeover for different sizes of formats and cartons.
·This line can be connected to subsequent machines, e.g., Stretch-Banding Machine (Overwrapper) and Case Packer to form a whole production line.
·The machine can achieve 180 minutes of uninterrupted production thanks to Blister module with forming material reels of up to 600mm in diameter and waste material trimming cutter (optional).
·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.
·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to two vacuum arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed.
·Since this Line adopts transfer belt to connect the Blister Machine and Cartoner, it provides easy changeover for different sizes of formats and cartons.
·This line can be connected to subsequent machines, e.g., Stretch-Banding Machine (Overwrapper) and Case Packer to form a whole production line.
Specifications

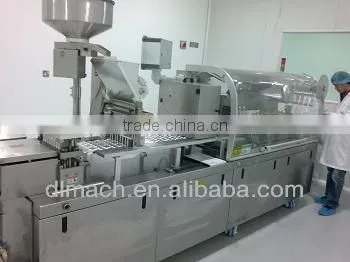

DPP260K Blister Machine's Main Technical Parameters:
Max. Speed: alu/pvc:70punches/min. alu/alu:40punches/min.
Machine Power: 9.6kw
Machine Dimension: 4200x740x1700mm
Machine Weight: 1800kg
Machine Power: 9.6kw
Machine Dimension: 4200x740x1700mm
Machine Weight: 1800kg

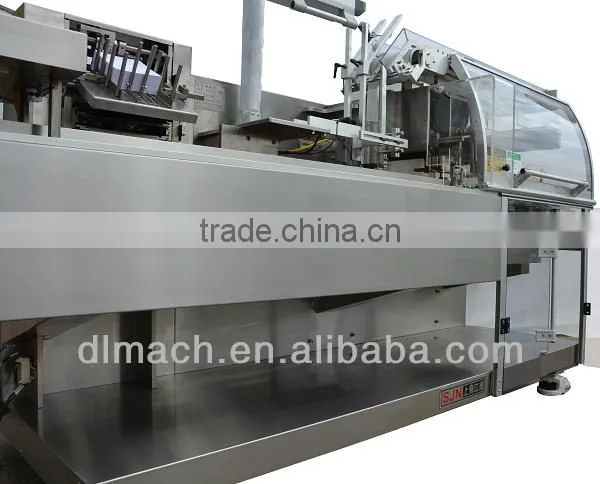

ZH120 Cartoner's Main Technical Parameters:
Max. Output: 120 cartons/min.
Range of Carton Size: Max.: 150x115x50mm Min.:55x30x15mm
Machine Power: 1.8kw
Machine Dimension: 3500x1500x1800mm
Machine Weight: 1200kg
Range of Carton Size: Max.: 150x115x50mm Min.:55x30x15mm
Machine Power: 1.8kw
Machine Dimension: 3500x1500x1800mm
Machine Weight: 1200kg
About our company:
Our factory is a professional pharmaceutical machinery manufacturer integrating development, production, marketing and service. We were named as one of the "Top 10 Packaging Machinery Enterprises" in China, We are dedicated and driven to provide the best equipment to meet our customers' requirements that come from pharmaceutical, food, cosmetic and chemical industries. Up to now we have delivered outstanding, innovative and high quality equipment to customers in more than 80 countries around the globe.
...
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2006
Factory Size
Above 100,000 square meters
Total Employees
Fewer than 5 People
