Automatic Toilet Paper Machine 1575B
- 50 Unit / Units per Month
- Dalian Port China
- T/T L/C D/P D/A Credit Card PayPal
- Best quality factory price jumbo roll paper machine
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- N Fold Hand Paper Towel Dispenser Packaging Machinery Manufacturer
- Automatic paper recycling machine for produce craft paper from www.frdpapermachine.com
- Durable and sturdy spiral paper tube machine
- Durable and sturdy corner protectors
Product Details
Condition: | New | Product Type: | Paper Napkin Machine | Processing Type: | Paper Slitting and Rewinding Machine |
Place of Origin: | Fujian, China | Brand Name: | MACH | Model Number: | 1575B |
Voltage: | 380V | Power(W): | 8.5KW | Dimension(L*W*H): | 530 0x 2700 x 1800mm |
Weight: | 4000kgs | Certification: | CE | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

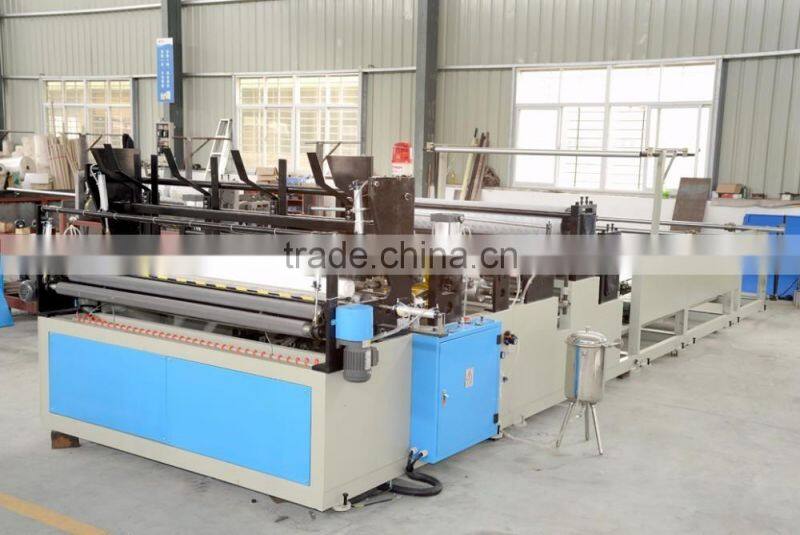

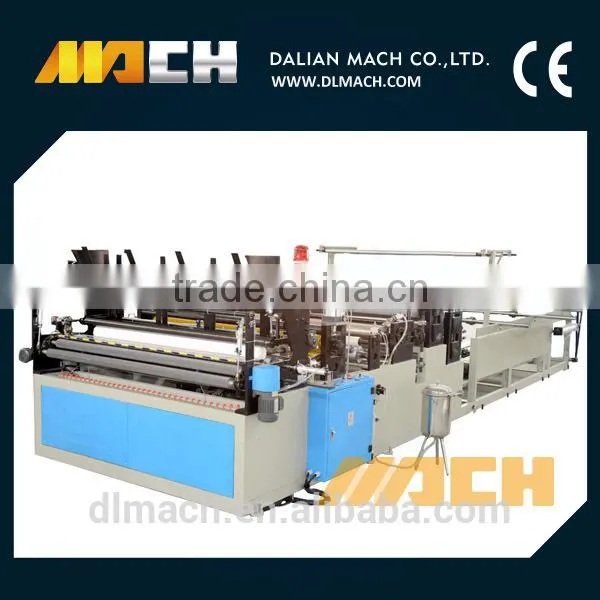

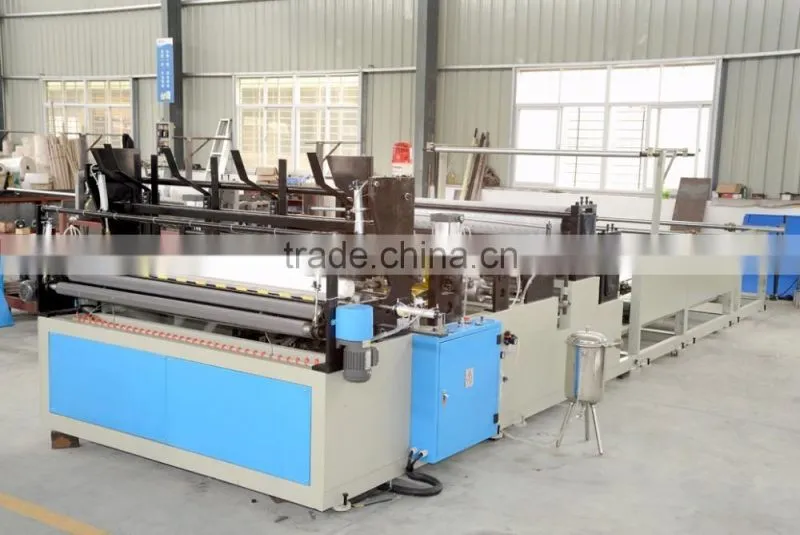

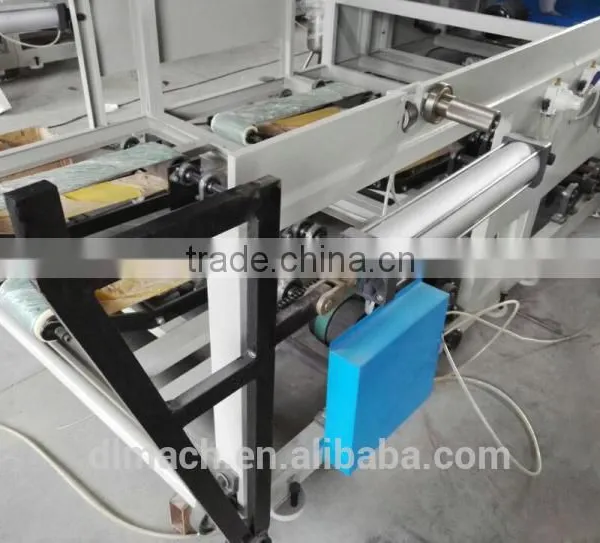

Automatic Toilet Paper Machine 1575B
Main Specification:
Diameter of finished toilet paper roll | 80-150mm |
Inner Core Diameter | 25-55mm |
Capacity | 180-200meter/min ( 40,000 rolls per 8 hours) |
Perforating Space | 100-200mm (Adjustable) |

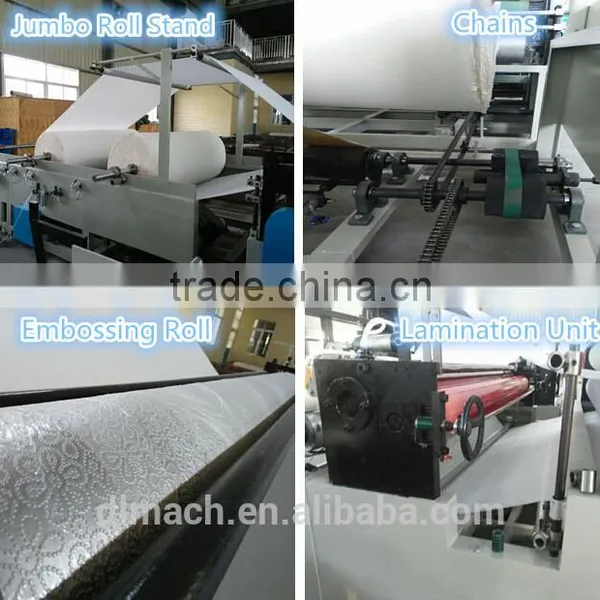

Embossing Rolls | Steel Roll / Wool Roll |
Size of Jumbo Toilet Paper Roll | Width: 1750mm, Max. Diameter: 1200mm; 13-22gsm; 1 ply or 2 ply |
Power | 8.5kw (380V, 50Hz) |
Pneumatic system | 3HP air compressor. Mini pressure: 5kg/cm2 |
Overall Dimension of machine | 5.30 x 2.70 x 1.80 (M) |
Weight | 4000 Kgs |

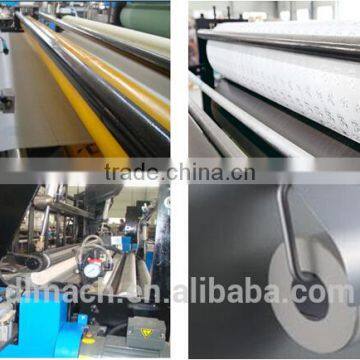

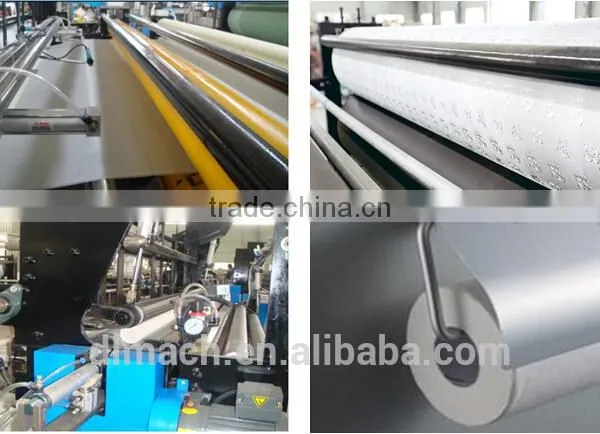

Features:
1. the machine is with international advanced plc programmable controlling technical, frequency conversion speed-regulator, electronic brake and man-machine interface operation table. the multi functions mounting on this machine has won the favor and credit among users by their profound practicability.
2. under european ce standard designing, passed ce certificate, with ce or ul certificate for electric parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. most of parts are precisely processed by numerical-control machine; the key mechanical parts are under cnc processing; while the main outsourcing parts are world famous brand.

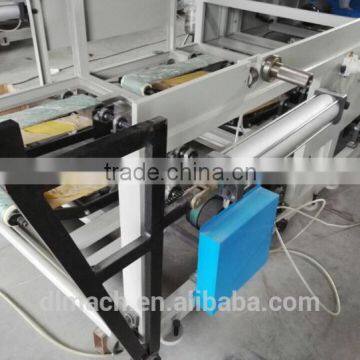

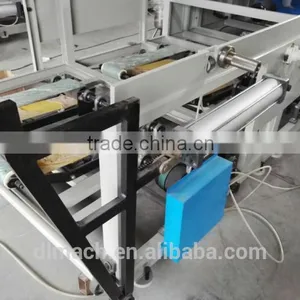

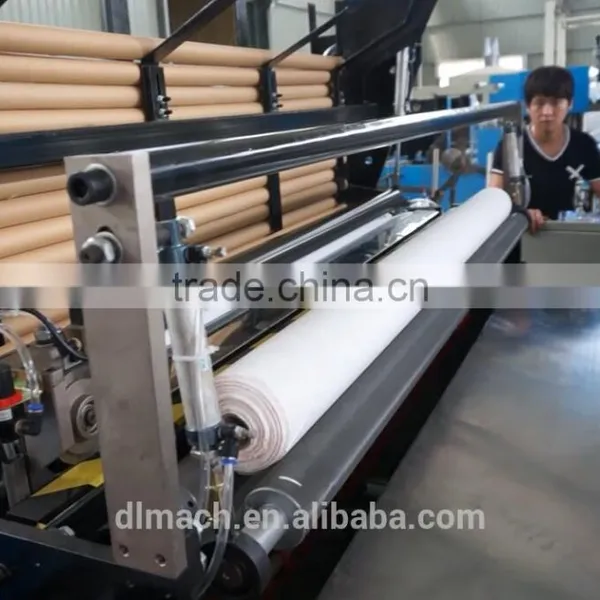

4. automatic roll core splicing unit without manual core feeding; auto edge trimming, glue spraying and sealing synchronously in one time, which had materialized the popular technique of edge-trimming and tail-gluing as well as auto pushing out the final products after rewinding;
5. monitoring system on broken paper or torn edge under high-speed running the equipment; jumbo roll tension controlling system; pneumatic lifting the jumbo roll.
6. it can work together with color printing and rewinding machine or glue laminating unit to produce kitchen towel.
Machine Models and Sizes:
1. machine model: 1092/1575/1760/2200/2500/2800
2. raw material width (mm): 1350/1750/1900/2150/2450/2750
Exporting History:
We got CE certificate for this machine and export it to England, Turkey, U.S.A, Guatemala, South Africa, Ghana, Nigeria, Egypt, Kenya, Saudi Arabia, Australia, Indonesia, Thailand, Singapore, etc.
About our company:
Our company specialize in exporting toilet paper making machine, napkin tissue machine, face tissue machine,etc for more than 20 years and export them to many countries. Such as: South Africa, Ghana, Kenya, Nigeria, Indonesia, Vietnam, UAE, Saudi Arabia,etc
....
