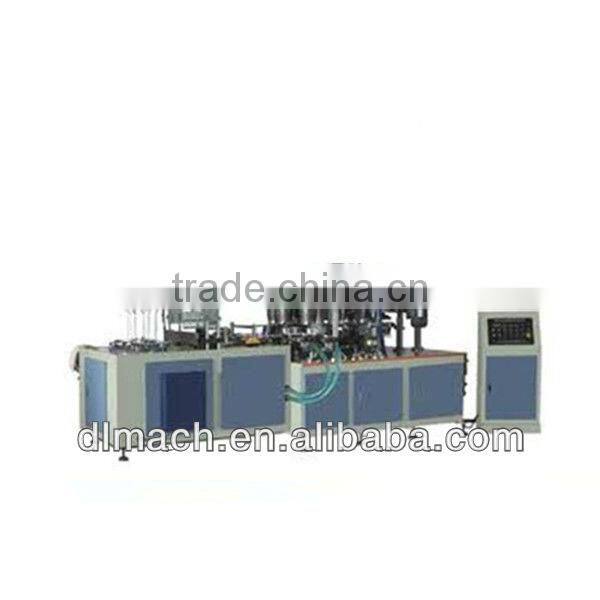

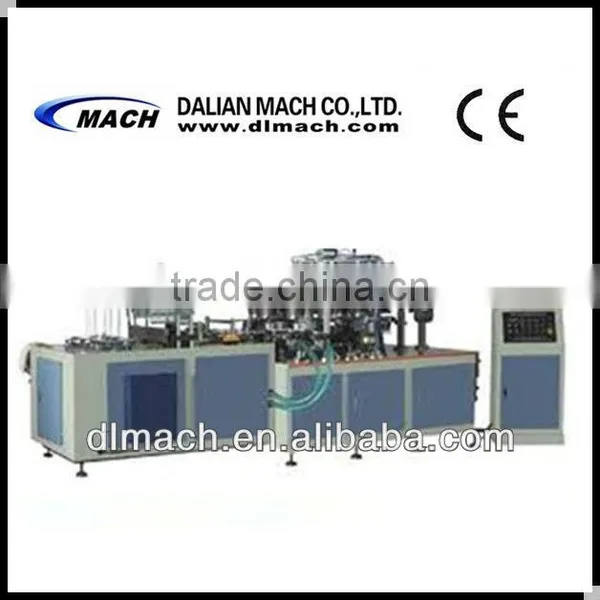

Automatic High Speed Popcorn Cup Forming Machine
The characteristic of the machine:
1. Bottom sealing by Swiss hot air devices, so you can get non-leakage cup.
2. Cup side sealing by Taiwan Evergreen ultrasonic; If you will not change mould, only one mould work with the machine, you can take hot air sealing as option.
3. Cup top curling and bottom knurling are finished by separate turnplates.
4. It is easy to make cups with different sizes by changing moulds.
5. With automatic cup delivery system with counter.
Techincal Data:
Cup Use |

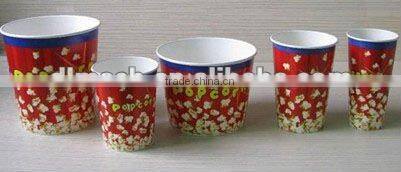

Popcorn Cups, large cups |
Cup Size |
28-190 Oz
|
Raw material |
250~~400gsm Single or Double PE coating paper |
Output |
25-35 pcs/min |
|
Maximum cup dimensions -max. top diameter -max. cup height |
220mm 220mm |
|
Minimum cup dimensions -min. top diameter -min. cup height |
120mm 100mm |
Electrical requirement |
380V or 220V, 50Hz |
Electric consumption |
13Kw |
Air consumption |
1cbm/min |
Machine dimensions |
4600mm×2100mm×1700mm |
Machine Weight |
3300kgs |
Certificate:
CE certificate
About our company:
Our company specialize in exporting toilet paper making machine, wet tissue machine, paper cup machine,etc for more than 20 years and export them to many countries. Such as: South Africa, Ghana, Kenya, Nigeria, Indonesia, Vietnam, UAE, Saudi Arabia,etc.
....
