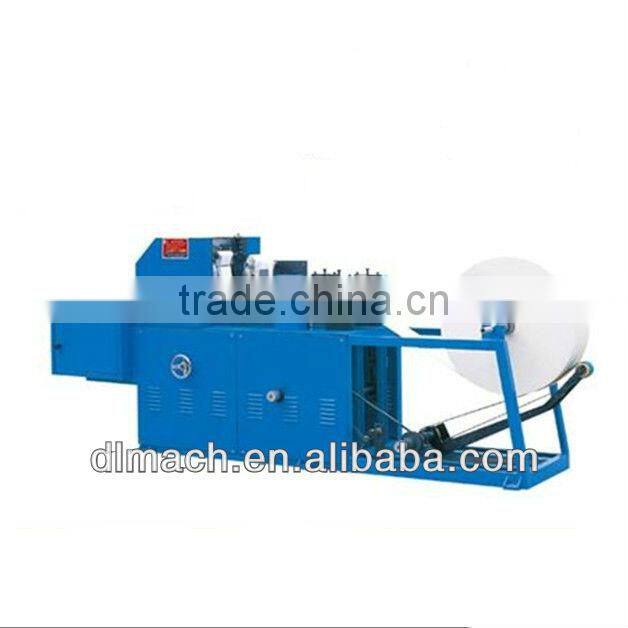

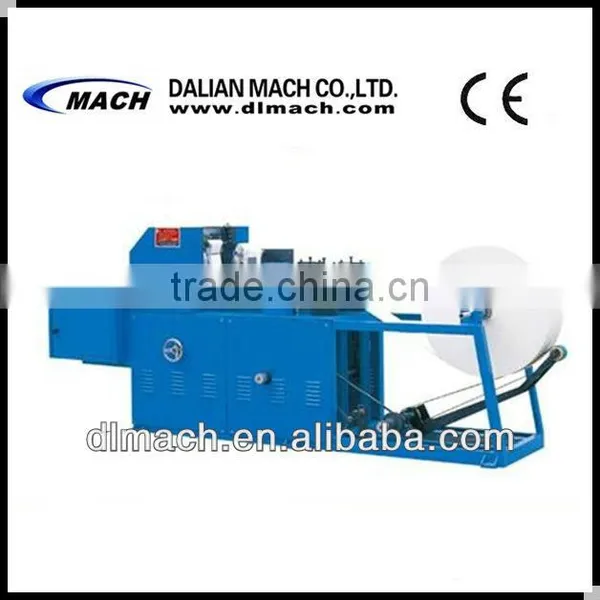

DL-SPZ-(CY)ZD210 Vacuum Mini Type Face Tissue Machine
Equipment Function & Character
1. This machine adopts folding through vacuum absorption, under embossment and cutting, the tissue is auto-folded into mini type and portable handkerchiefs tissue. This machine is stable in running, fast in speed and trim in folding, Multi sizes can be adjustable if tissue length is in the range of 68mm¬110mm.
2.Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. Most of parts are precisely processed by numerical-control machine;the key mechanical parts are under CNC processing; while the main outsourcing parts are world famous brand.
4. As per requirement, 1¬4 color printing for pattern or logo can be added.
Main Technical Parameter
Machine model:PX-SPZ-(CY)ZD200/210
Finished products size(mm): A.L*W=75*52mm, B.L*W=105*52mm
Jumbo roll size: The width is as per machine model, Roll diameter<=1100mm
13¬15g/m2(3 layers) 16¬20g/m2 (2 layers)
Folding speed: 500¬550 pcs/min
Power: 5kw (380V, 50Hz)
Vacuum system power: 3KW
Embossment down roller : Steel to rubber, steel to steel (ordered separately)
Overall size(m): L*W*H=3.5*1.0*1.5m
Weight of equipment: 1.0T
About our company:
Our company specialize in exporting napkin tissue making machine, wet tissue machine, paper cup machine,etc for more than 20 years and export them to many countries. Such as: South Africa, Ghana, Kenya, Nigeria, Indonesia, Vietnam, UAE, Saudi Arabia,etc.
...
