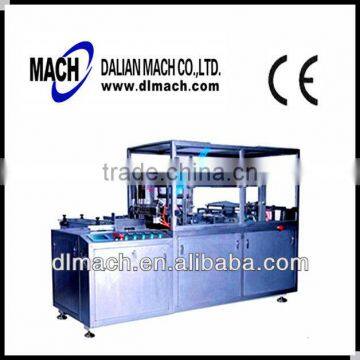

TMP300D-Z Table Napkin Wrapping Machine

TMP300D-Z Table Napkin Wrapping Machine thumbnail-1
TMP300D-Z Table Napkin Wrapping Machine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Handkerchief Machine
Processing Type:
Other, Wrapping machine
Contact Supplier Request Quote Chat Now
Dalian Mach Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Paper Handkerchief Machine
Processing Type Other, Wrapping machine
Place of Origin Zhejiang, China
Brand Name MACH
Model Number TMP300D-Z
Power(W) 6.5kw
Dimension(L*W*H) 2300x910x1850mm
Weight 750kg
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

TMP300D-Z Table Napkin wrapping machine





Applications

The machine is mainly use to packing the facial tissue of square shape. And also can punch the window as tear line for easy take out tissues. This kind of packaging make the products’ surface more beautiful, and save the human cost.





Features

Compact structure, stable performance, easy to operation and maintenance.
PLC control, easy to operate

All the machine use the air driving, easy to maintain
Touch screen and friendly interface.
Auto feeding the film use theservo motor. Control the film exactly.
Multifunction diagnose software, provide friendly and powerful help.
High grade security protect device, protect the safety of machine and operator.
Special design, save cost.
High precision transducer, step less variable speed.





Specification

Model

TMP-300D-Z

Packaging material

BOPP film, PVC film.OPP,CPP

Production capacity

15-20 packs/min.

Bag size

L(50-300)*W(40-220*H(20-120)mm

Power supply

AC380V 50Hz, 6.5Kw

Working pressure

0.6 Mpa

Air consumption

400L/min.

Weight

750kg

Overall dimension (L*W*H, mm)

2300x910x1850

Input table dimension (L*W*H, mm)

1650x320x930





TMP-300D-Z Cellophane over wrapping machine——configure list

No. Name Model & specification manufacture quantity
1 Servo motor   SANYO Japan 3
2 Driver   SANYO Japan 3
3 planetary reduction gear PG60L2-50 VGM Taiwan 1
4 Touch screen DOP-A57BSTD Easy view Taiwang 1
5 PLC DVP-32EH Delta 1
6 electromagnetic valve 3V210-08DC24V AIRTAC Taiwan 2
4V210-08DC24V 3
4V220-08DC24V 3
7 Cylinder Single bearing and couple bearing AIRTAC Taiwan 8
8 Filter of air pressure BC400·AFR2000 AIRTAC Taiwan 3
9 Power supply S-100-24 Mingwei Taiwan 1
10 Button   Germany Schneider 8
11 AC contactor STF30-10-0X Siemens 3
12 Temperature controller NG6000-2 Yatai Shanghai 5
13 solid state relay SSR-25DA Omron 5
14 Relay 08Y2W8 Omron 14
15 Chain   Jindun China
16 Air switch 1P Siemens 7
3P 1
17 Eye mark GDJ-211 Yatai Shanghai 1





TMP300D-Z Table Napkin wrapping machineTMP300D-Z Table Napkin wrapping machine
