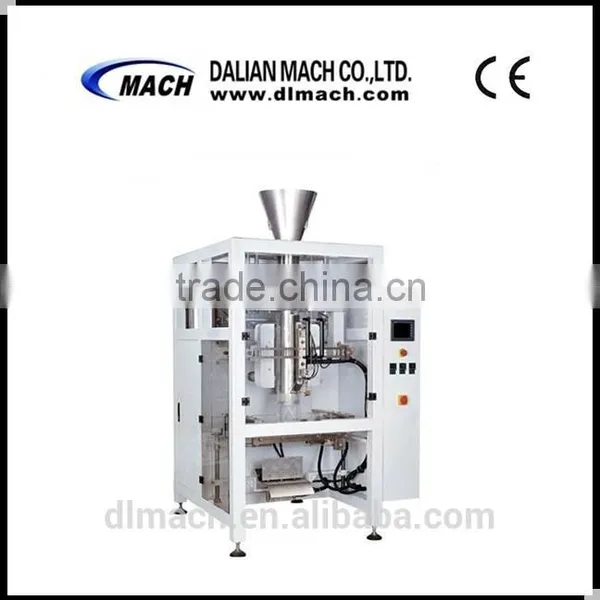

DBIV-6848 Large Vertical Automatical Box Packaging Machine
Features:
1. PLC control with stable£¬reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. Double servo control, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple .
7. Close down type mechanism , defending powder into inside of machine.
Specifications:
Bag length : 100-480mm(L)
Bag width : 180-320mm(W)
Max width of roll film: 680mm
Packing speed: 5-50bags/min
Measuring range: 6000ml(Max)
Air consumption: 0.65mpa
Gas consumption: 0.4m3/min
Power: 5KW
Dimension: 1780(L)×350(W)×1950(H)mm
Net Weight: 900Kg
Application:
Suitable for many kinds of measuring equipment,and package different kinds of products.
About Our Company:
Dalian Mach Co., Ltd. specializes in exporting all kinds of machinery such as Metal Processing Machines, Paper Processing Machines, Packaging Machines, Rubber Machinery, Pharmaceutical Machines, Daily Product Making Machines and Forklifts. With more than twenty years' experience, our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality.
Our products have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
...
