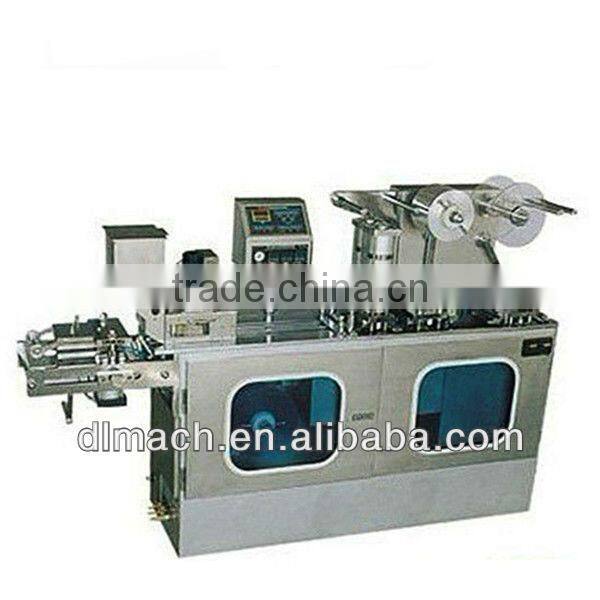

DPP-150C Automatic Capsule & Tablet Blister Packing Machine
Features
- 150Cis high speed blister packing machine with PLC and touch screen auto control system; the stroke length can be adjusted expediently through the interface; feeding into the mechanism by rubber roller manipulator (pneumatic, friction) which is controlled by servo motor independently assures the stability and synchronous running; more convenient in changing moulds when adopts orientation type moulds and unitary guild orbit.
- The heating plate in forming station can auto open and close, when the forming material did not reach set temperature the machine will automatically delay the start of machine, to reduce waste of material. Adopting the contacting heating type, lower the heating power saves energy meanwhile lower the temperature strengthen the stability of formed blister.
- Sealing with pneumatic cushion: the cylinder lift up the upper sealing moulds (web plate) when machine stops which avoids deformation of the blister bubbles caused by the heat radiation during the stop, meanwhile serves a buffer against the excess pressure and thus extends the life span of machine.
- All the parts including feeding hopper which will contact with material are all made from stainless steel and innocuity material process. This machine also serves emergency stop mechanism, alarm and auto stop when run out of PVC and broken PVC.
Specifications
| Punch Frequency | 35time/min |
| PVC width | «150mm(57x82mm)2sheets/time |
| Production capacity C | 50-90 thous.pcs./h |
| Adjustable range of stroke | 40-120mm |
| Air Consumption | »0.2m3/min 1.5kw |
| Total power | 380V 50Hz 3.2KW |
| Weight | 800kg |
| Dimensions(LxWxH) | 2200x570x1380mm |
| Packaging case (LxWxH) | 2310x800x1700mm |
About our company:
DALIAN MACH CO.,LTD specialize in manufacturing and exporting all kinds of machinery. Such as: Metal Processing Machine, Paper Processing Machine, Packaging Machine, Rubber Machine, Pharmaceutical Machine, Daily Product Making Machine, Forklift, etc. With more than twenty-year experience, Our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our machines will be runned on good performance based on high quality.
Our products have been exported to more than 60 countries. Such as: Canada, U.S.A, Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, U.A.E, Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya, Ghana,etc.
We sincerely hope to establish long-term cooperative relationship with you and become a true partner who is always available when you need our service
...
