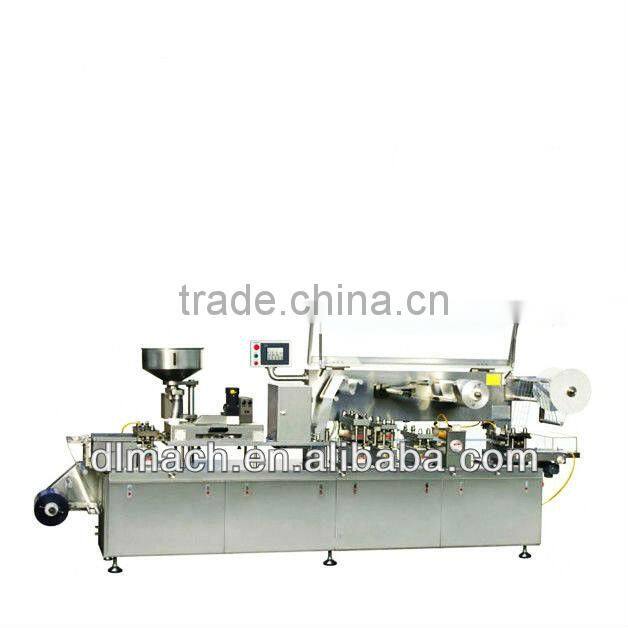

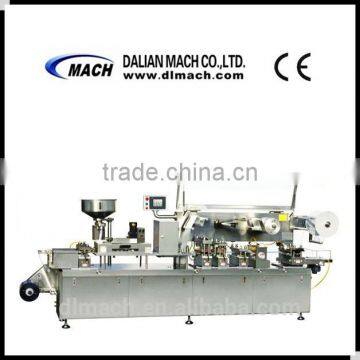

DPP-260K2 Automatic Capsule & Tablet Blister Packing Machine
Features
1.260K2 is high speed blister packing machine with PLC and touch screen auto control system; the stroke length can b e adjusted expediently through the interface; feeding into the mechanism by rubber roller manipulator (pneumatic, friction) which is controlled by servo motor independently assures the stability and synchronous running; more convenient in changing moulds when adopts orientation type moulds and unitary guild orbit.
2.The heating plate in forming station can auto open and close, when the forming material did not reach set temperature the machine will automatically delay the start of machine, to reduce waste of material. Adopting the contacting heating type, lower the heating power saves energy meanwhile lower the temperature strengthen the stability of formed blister.
3.Sealing with pneumatic cushion: the cylinder lift up the upper sealing moulds (web plate) when machine stops which avoids deformation of the blister bubbles caused by the heat radiation during the stop, meanwhile serves a buffer against the excess pressure and thus extends the life span of machine.
4. All the parts including feeding hopper which will contact with material are all made from stainless steel and innocuity material process. This machine also serves emergency stop mechanism, alarm and auto stop when run out of PVC and broken PVC.
Specifications
Max. Punch Speed | Alum/PVC: 60 times/min(standard type) | |
Alum/Alum: 40 times/min | ||
Max. Production Capacity | Alum/PVC|: 350 thousand. Pieces/hour | |
Alum/Alum:150thousand. Pieces/ hour | ||
Adjustable range of stroke | Standard dispose≤120mm(according to the customers′Requirement) | |
Max. Forming Area | 245x112mm | |
Max. Forming Depth | Alum/PVC: 14mm | |
Alum/Alum: 14mm | ||
Specification of packaging material | Note: the width of the material 130-260mm | Medicine PVC: 260x0.25(0.15-0.5)mm |
Heat-sealing PTP: 260x0.02mm | ||
Power Connection: | There Phases Four Wires: 380V , 50Hz (220V 60Hz) | |
Total Power | 6.4KW | |
Main Motor Power | 2.2KW | |
Forming Upper and Lower Heat power | 1.5KW(x2) | |
Heat-sealing Heat Power | 1.2KW | |
Air Pump(Air Compressor)Volume | ≥0.38m3/min | |
Dimensions of overall machine(L×W×H) | 3940x720x1580mm | |
Dimensions of packing case(L×W×H) | 4100x880x1740mm | |
Dimensions of separate packing cases(L×W×H) | 2000x880x1740mm & 1550x880x1740mm | |
Weight | 1800kg | |
About Our Company:
Dalian Mach Co., Ltd. specializes in exporting all kinds of machinery such as Metal Processing Machines, Paper Processing Machines, Packaging Machines, Rubber Machinery, Pharmaceutical Machines, Daily Product Making Machines and Forklifts. With more than twenty years' experience, our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality.
Our products have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
...
