XH7132A 3 axis CNC Vertical Machining Center
Features of Vertical Machining Center
1.Adopt Taiwan Ball screws.
2.Adopt Japan NSK Bearing.
3.We use Taiwan famouse brand high speed and high precision spindle.
4.We use Taiwan famouse brand umbrellla type tool magazine, Tool magazine capability: 16.
5.Cooling system use water pump in big Flow and high head ensure to be cooled fully under turning in high speed.
Technical Specification of Vertical Machining Center
Specifications | Unit | XH7132A |
Table travel (X,Y,Z) | mm | 620×350×500 |
Table size | mm | 920×320 |
Number/Width/Distance of T-slot | mm | 3-14-85 |
Distance from spindle nose to table surface | mm | 100-600 |
Distance from spindle axis to vertical guideway | mm | 395 |
Taper of spindle |
| BT40 |
Spindle speed range | rpm | 60-6000 |
Spindle motor power | kW | 3.7 |
Rapid feed speed (X,Y,Z) | mm/min | 18000 |
Feed speed (X,Y,Z) | mm/min | 2.5-3000 |
Tool magazine capability | qty | 16 |
Max. dimension of tool | mm | Φ120×200 |
Max. weight of tool | kg | 8 |
Positioning accuracy | mm | ±0.015 |
Repeat positioning accuracy | mm | ±0.0075 |
Overall dimension | mm | 2100×1970×2170 |
Machine weight | kg | 2750 |
Standard Accessories of Vertical Machining Center
1. GSK 25I CNC system.
2.Drum-type tool magazine capability 16 tools.
3.RS232 interface.
Optional Accessories of Vertical Machining Center
1. FANUC oi mate-MD, SIEMENS 828D or HNC-22M, KND-2000M CNC system
2. Disc-type tool magazine capability 16 tools.
3. NC A axis
4. Automatic chip conveyor.
Pictures of Vertical Machining Center

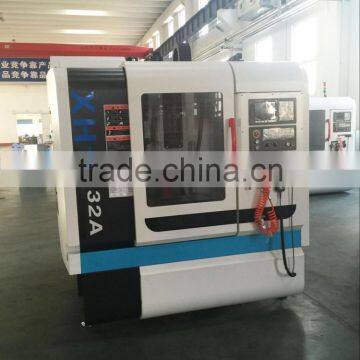

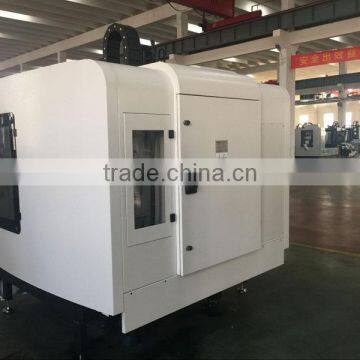

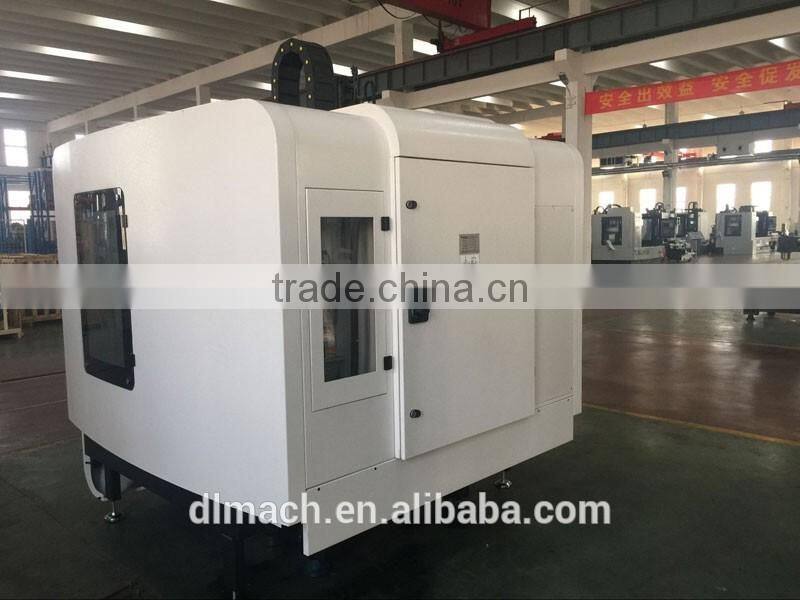

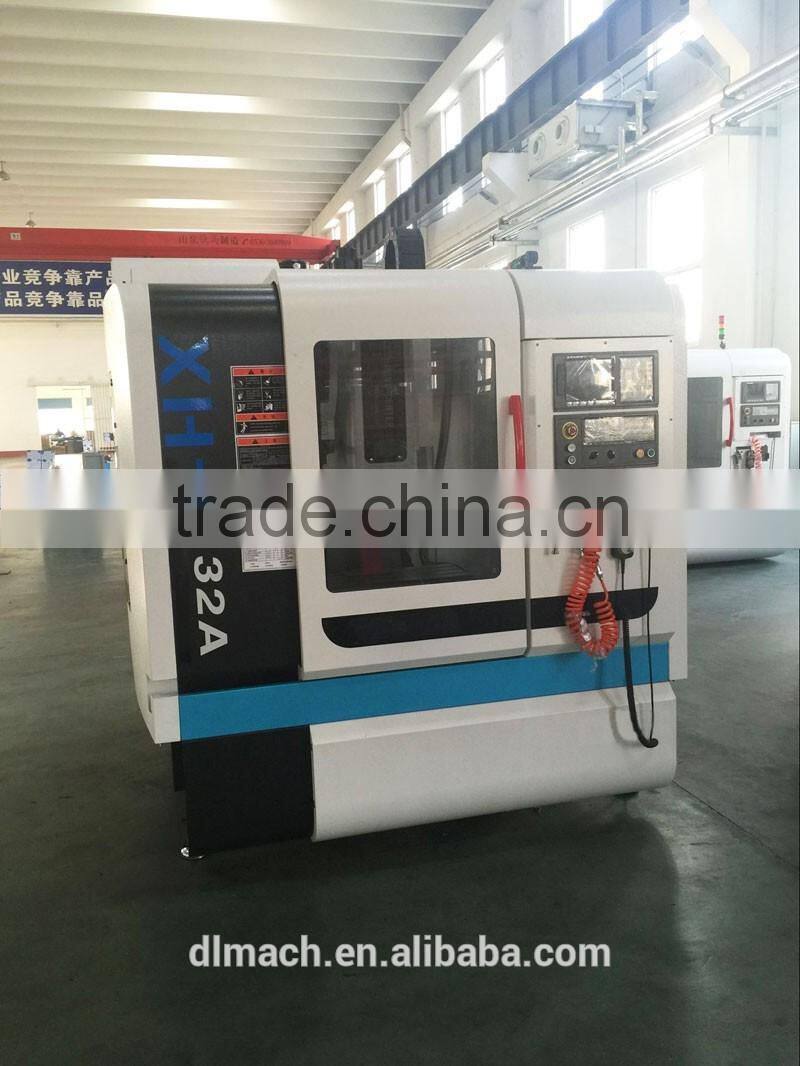

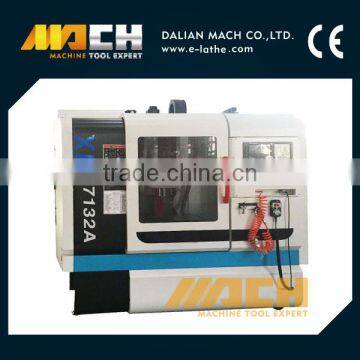

Whole machine Picture of XH7132A Vertical Machining Center

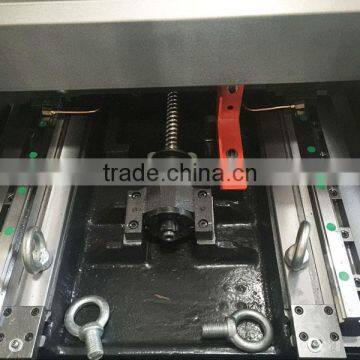

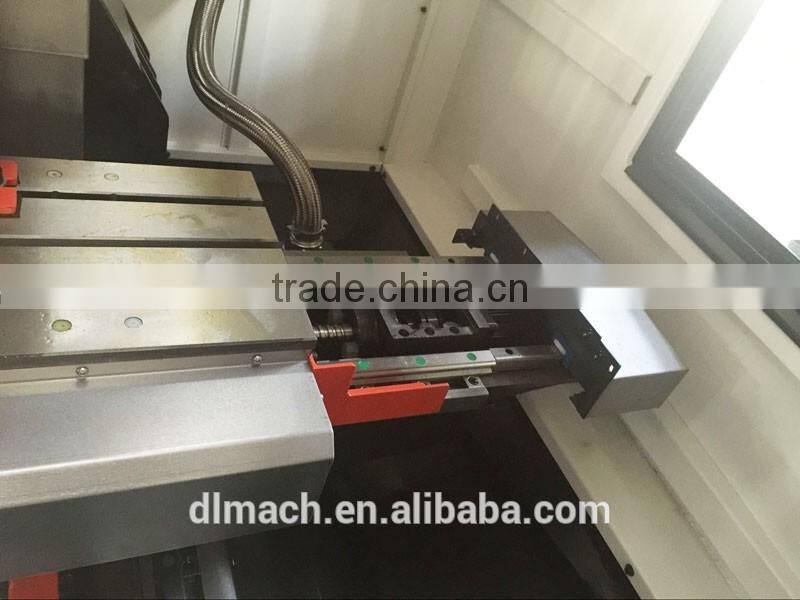

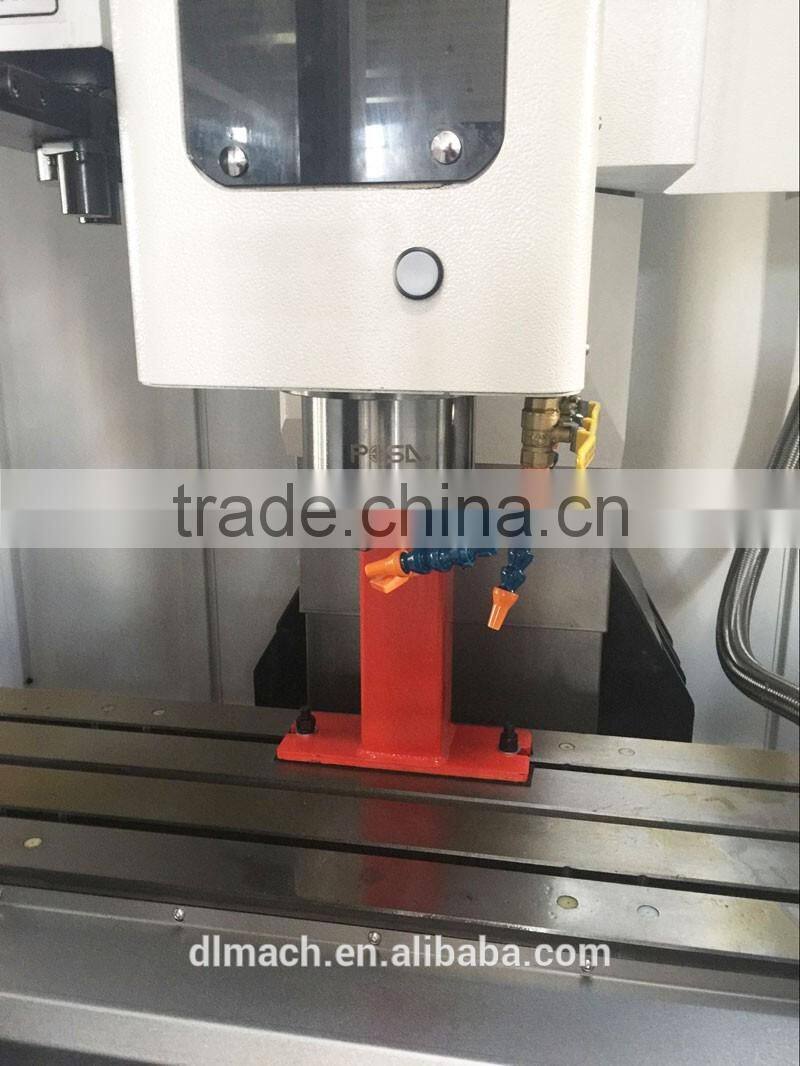

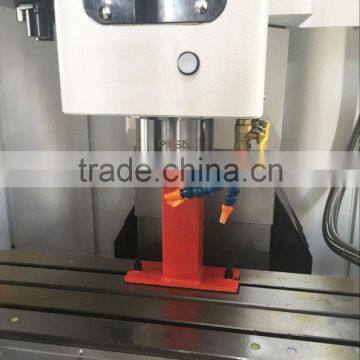

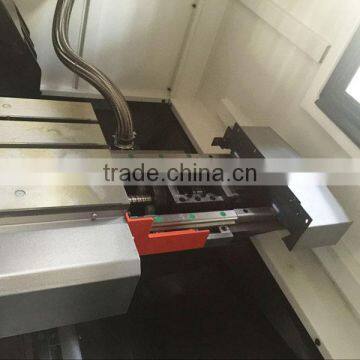

Detailed Machine Picture of XH7132A Vertical Machining Center
CE certificate & ISO9001 certificate
We will supply enough spare parts and accessories with our vertical machining center when shipment. Within one year after receiving our vertical machining center, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.

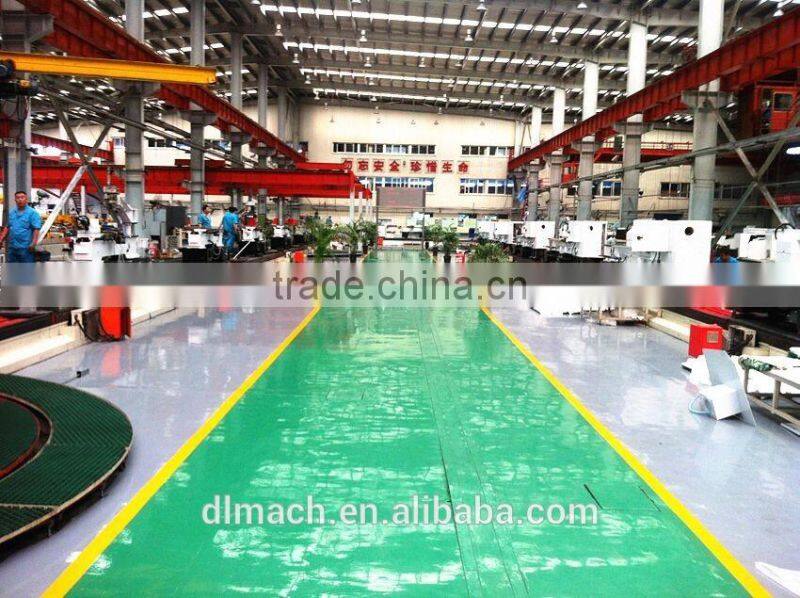

About our company
We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our machines will be runned on good performance based on high quality.
Founded in 1948, Our factory entered the top 8 vertical machining center builders in the world. Turly a leader in the machine tool industry worldwide. Our vertical machining centers sell to more than 100 countries and regions worldwide. Our main products are Vertical Machining Center, Gap-bed Lathe, Universal Lathe, CNC Lathe ,etc.
Export History
Our Model: XH7132A 3 axis CNC Vertical Machining Center widely exported to more than 70 countries & regions, Including South Africa, Kenya, Ghana, Egypt, Nigeria, Guatemala, Brazil, U.S.A., Canada, Germany, Italy, Spain, France, Turkey, Australia, Korea, and other countries.
Q:Why choose our Vertical Machining Center?
A: 1 . High quality with competitive price
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
Q:Can we start with small quantity? What's the MOQ?
A: We can accept orders with any quantity. The MOQ is 1 unit.
Q: Do you have QC or any safety standards for your Vertical Machining Center?
A: Yes,we have established a highly strict quality control department to guanrantee good quality.
Q: How can we learn to operate the Vertical Machining Center?
A: Operation teaching video and instructions even engineer are available.
