Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > XK6040 CNC Knee-type Horizontal Milling Machine

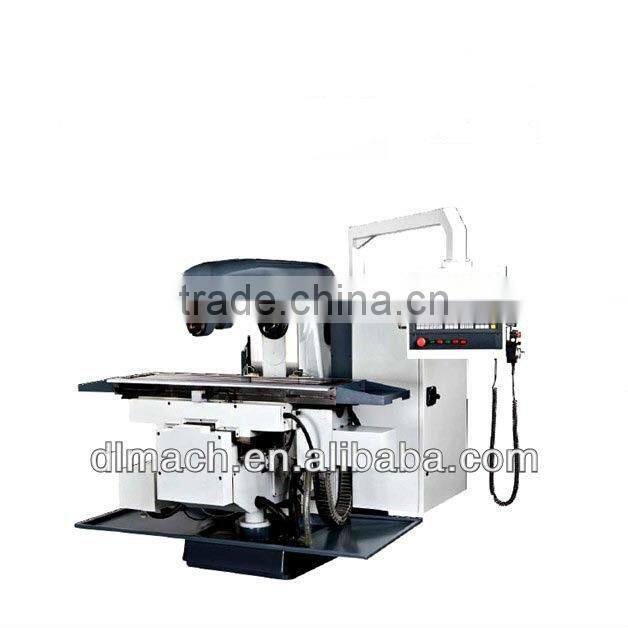

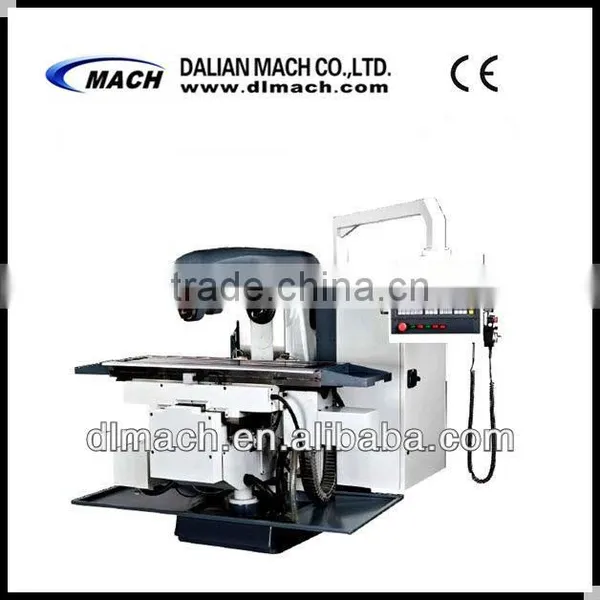

XK6040 CNC Knee-type Horizontal Milling Machine

Name: XK6040 CNC Knee-type Horizontal Milling Machine
Brand: MACH
SKU: 141435322
Availability: InStock

XK6040 CNC Knee-type Horizontal Milling Machine thumbnail-1

XK6040 CNC Knee-type Horizontal Milling Machine photo-1

US$ 1 - 20,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

MACH

Contact Supplier Request Quote Chat Now

Dalian Mach Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Main Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name MACH

Model Number XK6040

Type Horizontal

CNC or Not CNC

Voltage 380V

Power(W) 11KW

Dimension(L*W*H) 2310X2200X2394MM

Weight 4250KGS

Certification CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

XK6040 CNC Knee-type Horizontal Milling machine

Technical Data

Specifications	Unit	XK6040
Table travel (X,Y,Z)	mm	920×380×350
Table size	mm	1700×400
Number/Width/Distance of T-slot	mm	3-18-90
Distance from column vertical guideway to the center of table	mm	275-625
Distance from spindle axis to table	mm	30-410
Taper of spindle		ISO50(7:24)
Spindle speed range	rpm	30-1500
Spindle motor power	kW	11
Vertical feed motor torque	N.m	22
Feed speed (X,Y,Z)	mm/min	6-3200/3-1600/6-3200
X, Y, Z rapid feed speed	mm/min	6000/3000/6000
Max. spindle torque	N.M	1000
Max. load of table	kg	500
Vertical feed motor torque	N.M	22
Longitudinal, transverse feed motor torque	N.m	12
Overall dimension	mm	2310×2200×2394
Machine weight	kg	4250

Standard configuration:

HNC-18iM CNC system.

Optional configuration

1. FANUC oi mate-MD

2. GSK 980M CNC SYSTEM

3. KND 1000II CNC SYSTEM

About our company:

We are one of biggest manufacturer of producing CNC Milling Machine, Vertical machining Center, Universal Milling Machine, CNC Lathe,etc in China. We entered the top 8 machine tool builders in the world. Our CNC Milling Machine sell to more than 100 countries and regions worldwide.

...
