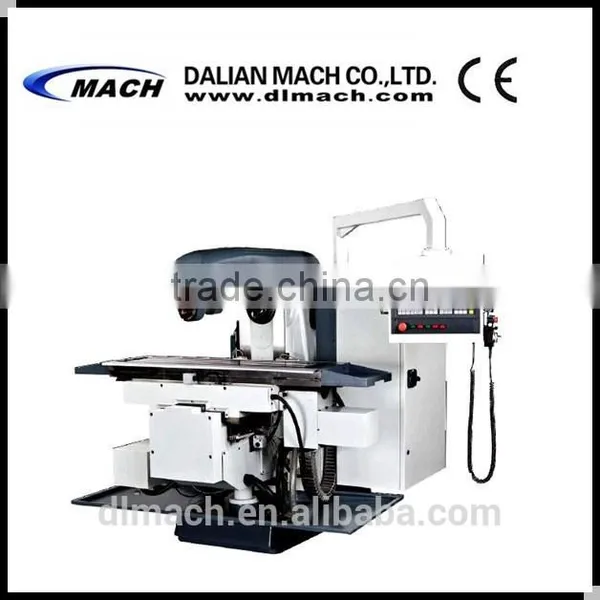

XK6032 CNC Knee-type Horizontal Milling machine
Technical Data
Specifications | Unit | XK6032 |
Table travel (X,Y,Z) | mm | 800×350×280 |
Table size | mm | 1320×320 |
Number/Width/Distance of T-slot | mm | 3-18-70 |
Distance from column vertical guideway to the center of table | mm | 225-505 |
Distance from spindle axis to table | mm | 20-370 |
Taper of spindle |
| ISO50(7:24) |
Spindle speed range | rpm | 30-1500 |
Spindle motor power | kW | 7.5 |
Vertical feed motor torque | N.m | 22 |
Feed speed (X,Y,Z) | mm/min | 6-3200/3-1600/6-3200 |
X, Y, Z rapid feed speed | mm/min | 6000/3000/6000 |
Max. spindle torque | N.M | 1000 |
Max. load of table | kg | 320 |
Vertical feed motor torque | N.M | 22 |
Longitudinal, transverse feed motor torque | N.m | 12 |
Overall dimension | mm | 1929×2055×1960 |
Machine weight | kg | 2800 |
Standard configuration:
HNC-18iM CNC system.
Optional configuration
1. FANUC oi mate-MD
2. GSK 980M CNC SYSTEM
3. KND 1000II CNC SYSTEM
About our company:
We are one of biggest manufacturer of producing CNC Milling Machine, Vertical machining Center, Universal Milling Machine, CNC Lathe,etc in China. We entered the top 8 machine tool builders in the world. Our CNC Milling Machine sell to more than 100 countries and regions worldwide
...
