Home > Products > Metal Processing Machine > CKE6140i New Type High Quality Flat Bed CNC Lathe
CKE6140i New Type High Quality Flat Bed CNC Lathe
- Dalian Port China
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 400mm | Place of Origin | Liaoning, China | |
| Brand Name | MACH | Model Number | CKE6140i | |
| Voltage | 380V | Power(W) | 5.5KW | |
| Weight | 1953kgs | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

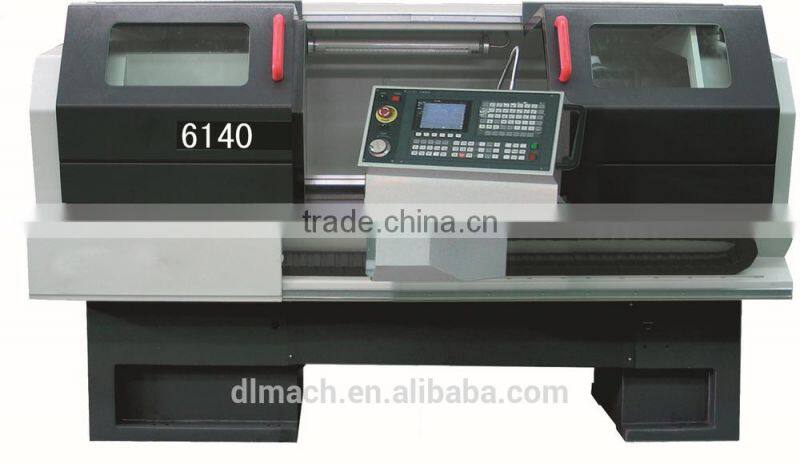

CKE6140i New Type High Quality Flat Bed CNC Lathe
Specifications:
| Item | mm | CKE6140i | CKE6150Z | CKE6163Z | CKE6180Z |
| Max. swing over bed | mm | 400 | 500 | 630 | 800 |
| Width of bed | mm | 300 | 400 | 550 | 550 |
| Max. length of work piece | mm | 750/1000 | 750/1000/1500/2000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
| Max. swing over slide | mm | 200 | 280 | 320 | 490 |
| X travel | mm | 225 | 280 | 320 | 420 |
| Z travel | mm | 620/870 | 680/930/1430/1930 | 785/1235/1835/2735 | 785/1235/1835/2735 |
| Spindle nose | mm | A2-5 | D8 | C11 | C11 |
| Chuck size | mm | 165 | 250 | 320 | 400 |
| Taper of spindle bore | mm | M5 | 1:20 | 1:20 | 1:20 |
| Spindle bore | mm | 40 | 82 | 100 | 100 |
| Spindle speed Frequency conversion motor | r/min | 200-3500 | 7-135 | 40-178 | 40-178 |
| 30-550 | 71-310 | 71-310 | |||
| 110-2200 | 124-556 | 124-556 | |||
| 222-1000 | 222-1000 | ||||
| Steps of spindle speed | stepless | 3-step actuator | 4-step actuator | 4-step actuator | |
| Frequency conversion motor power | kw | 5.5 | 7.5 | 11 | 11 |
| Rapid traverse X/Z | m/min | 4/5 | 6/10 | 4/8 | 4/8 |
| Repeatability of tool post | mm | 0.008 | 0.008 | 0.008 | 0.008 |
| Diameter of tailstock quill | mm | 63 | 75 | 100 | 100 |
| Travel of tailstock quill | mm | 130 | 150 | 240 | 240 |
| Taper of tailstock quill | M4 | M4 | M6 | M6 | |
| Net weight | kg | 1800/1953 | 2500/2600/2700/2800 | 4700/4800/5300/5600 | 5200/5300/5800/6100 |
Features:
- Automatic Forced Lubrication
- Hardened and Ground Guideways
- Brand-New Design Eterior
- Advanced gearbox, non-stop

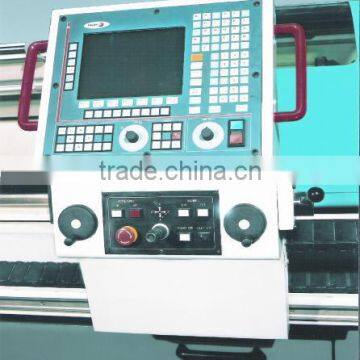

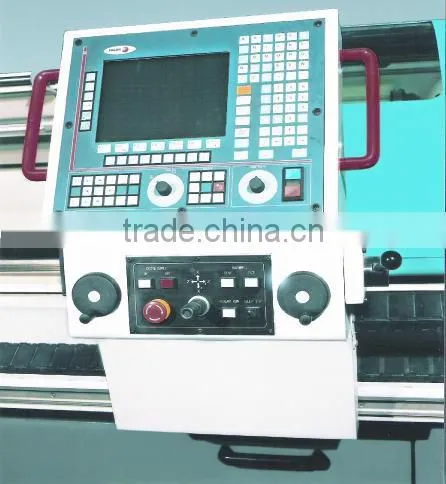

- FAGOR control system
We need to increase the accuracy and efficiency? Our competitiveness is poor? Reducing the production costs will make customers more interested in. We can solve these problems by using CKE6140i CNC Lathe .Production center would be more efficient, accurate, But it is not worth for small batch production . CKE6140i CNC Lathe has a much lower cost and it is very suitable for single piece or small batch production. When you need a lathe machine, you emphasize the quality, function, the price should reasonable, then CKE6140i CNC Lathe machine is the most correct choice .

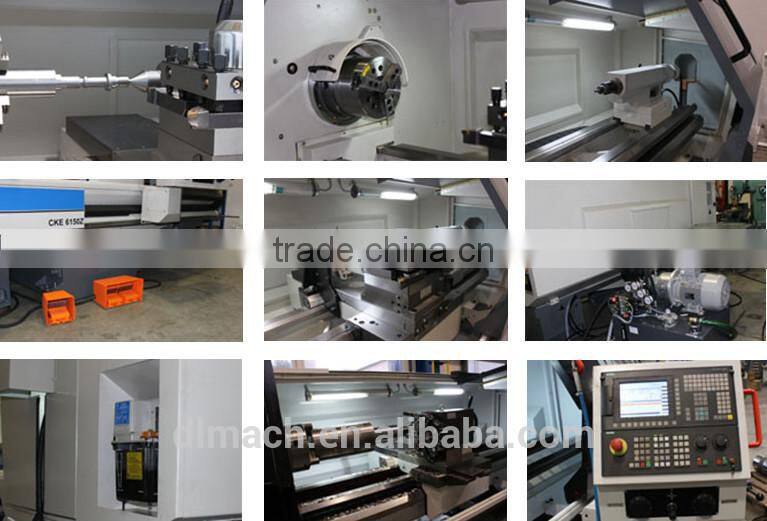

Pictures:

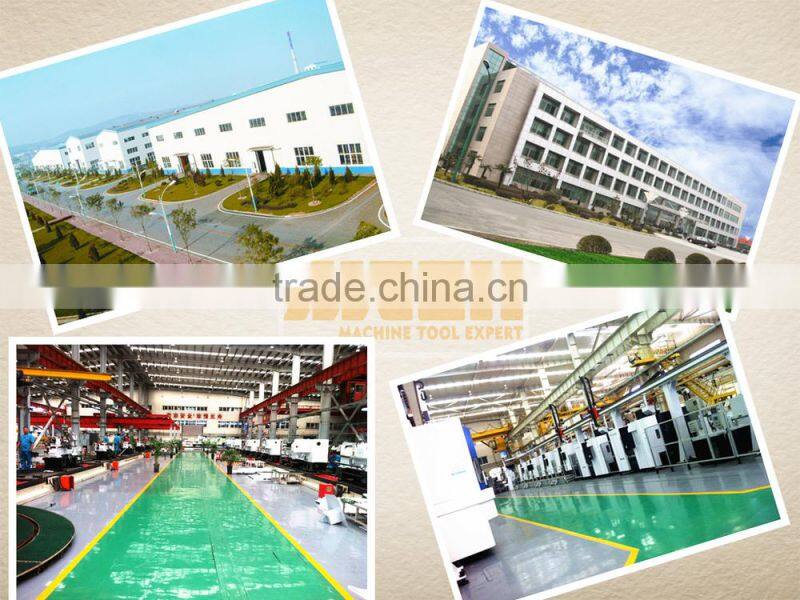

About our company:
Founded in 1948. Our factory already entered the TOP 8 machine tool builders in the world. truly a leader in the machine tool industry worldwide. Our machines sell to more than 100 countries and regions worldwide
...
Similar Products: More Lathe Machine Please Click The Image Below:
Why Choose Our Machine:
1) High quality with competitive price
2) 25 years export experience
3) CE,ISO Certificates
4) 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6) 12 months quality warranty
7) Oversea engineers available for problem resolving
...
