X6325A Low Price Turret Milling Machine

Name: X6325A Low Price Turret Milling Machine
Brand: MACH
Availability: InStock

FOB Price

US$ 3,550 - 3,950 / Unit

1 Unit(Min. Order)

Port Dlian Port China
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	MACH	Model Number	X6325A
Type	Vertical	CNC or Not	Normal
Voltage	380V	Power(W)	2.25KW
Dimension(LWH)	1516 x 1550 x 2080 mm	Weight	1280KGS
Certification	CE	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

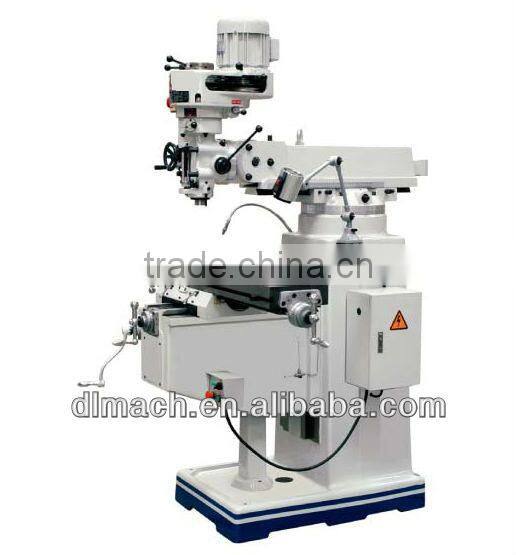

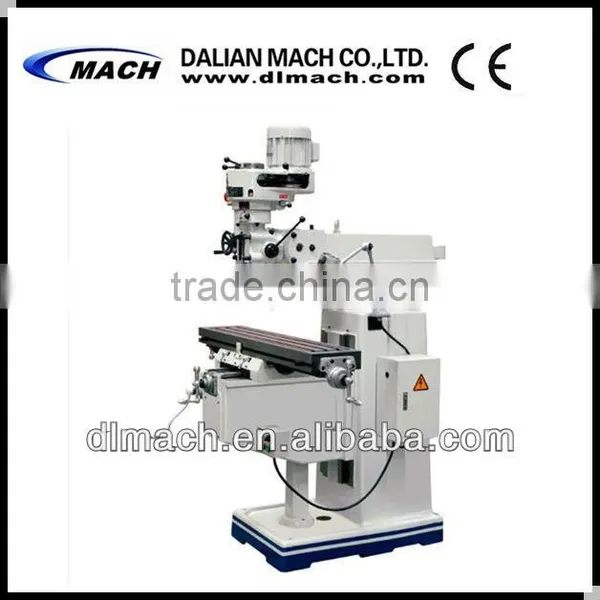

X6325A Turret Milling Machine

Specification:

MODEL	X6325	X6325A	X6325B	X6325C	X6325D
Table Size	254x1270 (10" x 50") or 254x1370 (10" x 54")
Long travel	850mm or 950mm
Cross travel	380mm	400mm	400mm	420mm	420mm
Vertical travel	400mm
T-slot No. and size	3x16
Ram travel	470mm
Distance from spindle nose to table surface	0---400mm
Distance from spindle center to column	140---609mm
Spindle hole taper	Standard: R8 Optional: ISO30/ ISO40			Standard: ISO40
Spindle travel	127mm
Spindle speed	Standard: 16 shift grades Optional: variable	50Hz: 66---4540 60Hz: 80 --- 5440		Standard: 16 shift grade Optional: variable
Auto. quill feed	Three steps: 0.04(0.0015")/ 0.08 (0.003")/0.15 (0.006") mm/revolution
Spindle motor	2.25kw/3HP			3.75kw/5HP
Head swivel	90 degree
Head tilting	45 degree			FIX	45 degree
Pacing Dimension	One set packing: 1516 x 1550 x 2080 mm Two sets packing: 1650 x 1790 x 2170 mm Three sets packing: 1650 x 2285 x 2235 mm
Gross Weight	1280kgs	1380kgs	1420kgs	1590Kgs	1590Kgs

If assemble power feed on X axis,the table long travel would be shorten about 100mm.

The design and specification of machine are subject to change without notice.

Features:

a. 6325: Rectangular guideway on Y - and Z- axis is featured a good rigidity and stability. The guideway on saddle is lined with TF wearable material.

b. 6325A: Double 55 degree swallowtail guideway is adopted on both Y- and Z-axis. So it is easy to adjust. The guideway on saddle is lined with TF wearable material.

c. 6325B Rectangular guideway on Y-axis and 55 degree swallowtail guideway on Z-axis. makes the machine stably and easy to adjust. The guideway on saddle is lined with TF wearable material.

d. 6325C: Fixed structure is used to connect the mill head without addapter.which makes the cut intensity well. Rectangular guideway on Y- and Z-axis makes the machine stably and rigidly. The guideway on saddle is lined with TF wearable material.

e. 6325D: Rectangular guideway is adopted both on Y- and Z- axis. The guideway on saddle is lined with TF wearable material. which makes the machine stably and rigidly. also makes it beautiful and easy to operate.

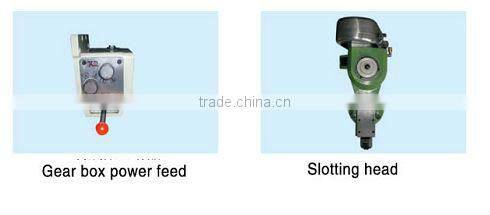

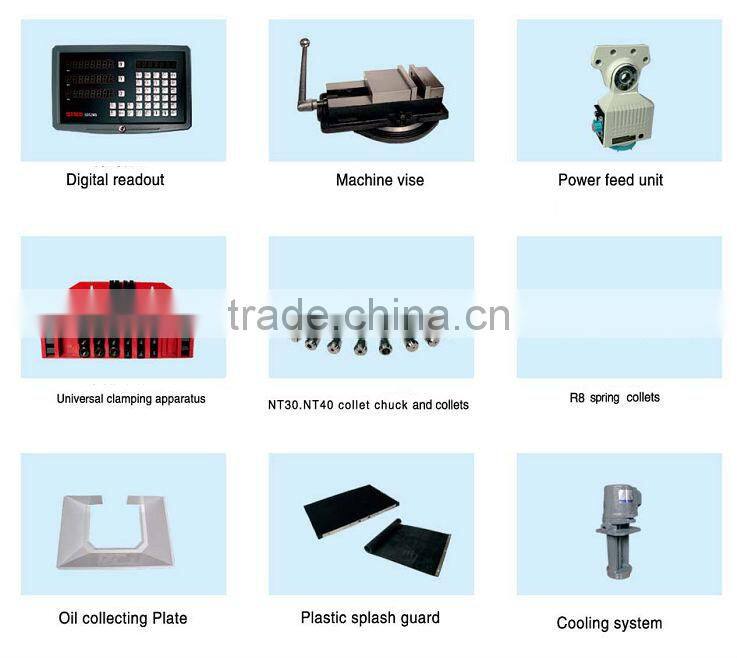

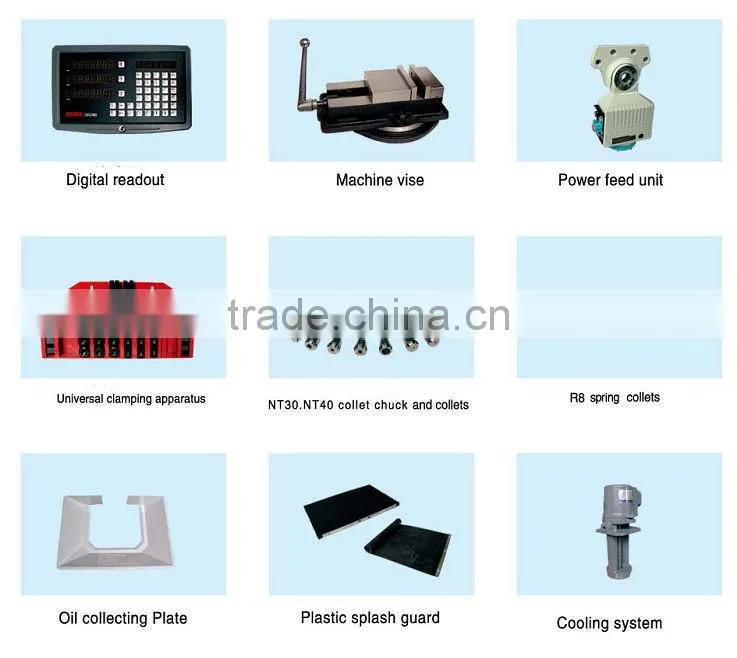

Optional Accessory

About our company:

We are one of biggest manufacturer of producing CNC Milling Machine, Vertical machining Center, Universal Milling Machine, CNC Lathe,etc in China. We entered the top 8 machine tool builders in the world. Our CNC Milling Machine sell to more than 100 countries and regions worldwide

...

Contact Us

Dalian Mach Co., Ltd.: Contact nameCharles Yin
Chat Now; Phone86-411-39647619, 83617286; AddressRoom 2-503, No. 136, Taigong Street, Xigang District, Dalian, Liaoning, China
