Lollipop Stick Making Machine

Lollipop Stick Making Machine photo-1
US$ 8,980 - 9,780 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Pipe
Plastic Processed PP
Screw Design Single-screw
Automatic Grade Automatic
Place of Origin Jiangsu, China
Brand Name MACH
Model Number CY01
Voltage 380V
Power(W) 25KW
Dimension(L*W*H) 3000 x2000 x 1550 mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Lollipop Stick Making Machine





It can make lollipop sticks in different diameters and lengthes with notch at one end. It can also make cotton bud stick and drinking straw using the same machine.





1. Brief Introduction:
Model CY01-1 is a tubing extrusion line. It is composed of extruder and die, Vacuum calibration and cooling unit, haul-off and rotary cutter or coiler, all the machine's controls base with the control elements ergonomically adapted to permit easy operation. The machine is ideal for  small production, the system is also suitable for extruding straws, refiltubes and most small diameter tubing and a wide range of industrial applications.


2. Characteristics:
Food Industry:Hollow Plastic Lollipop Sticks , Drinking Straw, etc.


3.Main Specification:
Typical Capacity:
30,000 -- 40,000pcs/hr
Dia of extruder screw:   45mm
Min. Diameter:               2.5mm
Max.Diameter:               12.00mm
Min. Length:                   90mm
Total Power:                  25 KW
Working Power:            10 KW
Material:                        PP
Operator:        One operator is sufficent to run the line
Area Requirement:        Length: around 8 meter.    Width:  around 2 meter.
Packing Dimension:      3.00 x 2.00 x 1.55 (M)


4. Multi-Usages
This machine can also manufacture Drinking Straws, Cotton bud sticks by changing extruder dies.

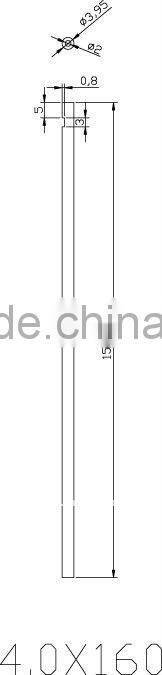

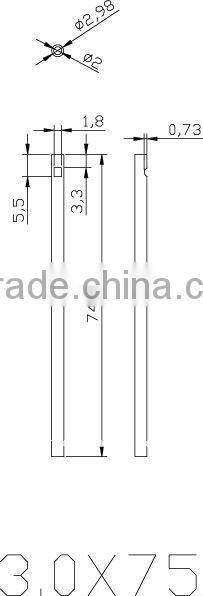

5. Design Drawing of Lollipop Stick
We can make design drawing of Lollipop Stick according to your requirement.
See attachments.

Lollipop Stick Making Machine

Lollipop Stick Making Machine

Lollipop Stick Making Machine

Lollipop Stick Making Machine

Lollipop Stick Making Machine
