China Supplier Plastic Drinking Straw Making Machine
Brief Introduction of Plastic Drinking Straw Making Machine:
The Model CY01 is a tubing extrusion line. It is composed of extruder and die, Vacuum calibration
and cooling unit, hauloff and rotary cutter or coiler, all the machine's controls base with the control
elements ergonomically adapted to permit easy operation. The system is also suitable for extruding straws, refiltubes and most small diameter tubing and a wide range of industrial applications.
Main Specification of Plastic Drinking Straw Making Machine:
Typical Capacity:
Drinking Straws 30,000 -- 40,000pcs/h
Cotton swab sticks 60,000pcs/h
Pen Refills 40,000pcs/h
Min. Diameter: 3.0mm
Max.Diameter: 12.00mm
Min. Length: 90mm
Max.Length: 300mm
Total Power: 25 KW
Working Power: 10 KW
Material: PP
Ends: 90°/90°, 90°/45°, 90°/60°, 45°/45°, 60°/60°
Colors: Single,Two or Three, SPIRAL STRIPES,STRAIGHT STRIPES.
Operator: One operator is sufficent to run the line
Area Requirement: Length: around 8 meter. Width: around 2 meter.
Raw Material: Polypropylene (P.P )
Grade: Extrusion & Drawing
Shape: Pellet
Melt Index: 2.5
Drawing Intensity: 380/ 350
Kneading Modulus: 17000
Rockwell Hardness: 100
Vica Soften Temperature: 160 C

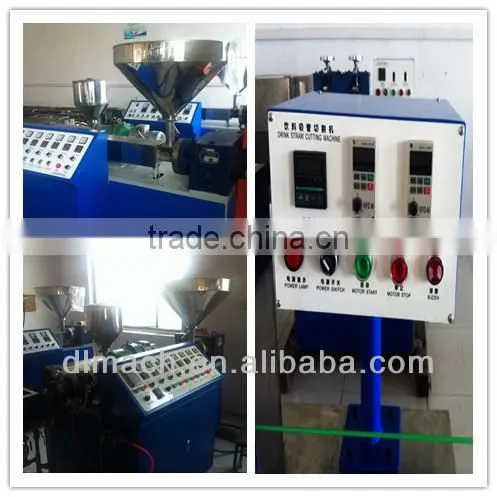

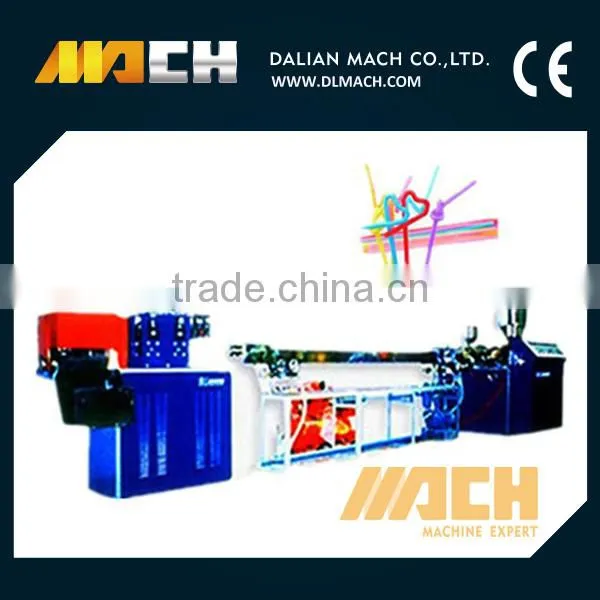

Picture of Plastic Drinking Straw Making Machine:
Rotary Cutter of Plastic Drinking Straw Making Machine:
Fitted with either single or double rotary cutter, suitable for light duty applications driven by variable speed gearbox. Inclides cutting and quick bushes with necessary guarding. Inverter control
Hall-off and Rotary Cutter:
Hall-off be combined with Rotary cutter.
We can supply straight drinking straw making machine in one color, two colors, three colors.
