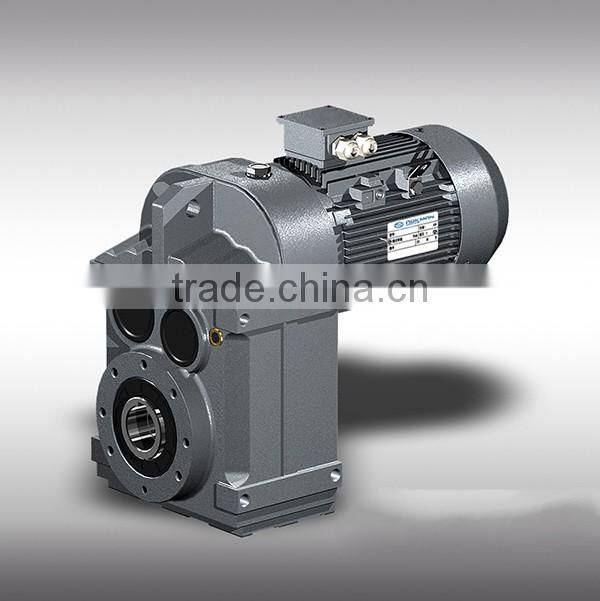

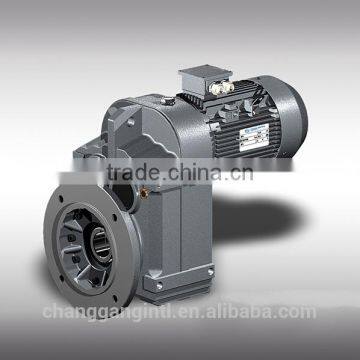

Help CenterSale SEW Equivalent Parallel-shaft Helical Gearbox F Series Gear Box
Related Products
-
Large Working Capacity Corn Shelling MachineUS$ 1,000 - 1,000MOQ: 1 Set -
New Design!!! Farm Corn Sheller MachineUS$ 1,000 - 1,000MOQ: 1 Set
-
New Design Corn Peeler Machine in ChinaUS$ 1,000 - 1,000MOQ: 1 Set
-
Dual Purpose!! Corn Sheller for SaleUS$ 1,000 - 1,000MOQ: 1 Set
-
Low Breaking Rate Electrical Corn ShellerUS$ 1,000 - 1,000MOQ: 1 Set
It’s suitable for transmitting rotation of parallel.
F series gearbox have the feature of light weight, small volume, heavy transmission torque, steady startup, low consumption.It could be mounted in various types and the in-put and out-put flexible etc.
Structure:
F(-) | F(F) | The out-put | In-put | F(-) |
Foot-mounted | Flange-mounted | Solid out-put or Hollow out-put. | Solid in-out shaft, or In-put flange | Foot mounted solid shaft output |
Output mode: hollow shaft output or solid shaft output.
Average efficiency: 2-stage 96%, 3-stage 94%, combination 85%.
Input power rating and maximum torque
Size | 38 | 48 | 58 | 68 | 78 | 88 | 98 | 108 | 128 | 158 |
Structure | F FA FF FAF FAZ | |||||||||
Input power rating(kw) | 0.18~3.0 | 0.18~3.0 | 0.18~5.5 | 0.18~5.5 | 0.37~11 | 0.75~22 | 1.1~30 | 2.2~45 | 7.5~90 | 11~200 |
Ratio | 3.81~128.51 | 5.06~189.39 | 5.18~199.70 | 4.21~228.99 | 4.30~281.71 | 4.20~271.92 | 4.68~276.64 | 6.20~255.25 | 4.63~172.33 | 12.07~270.18 |
Maximum Torque(N.m) | 200 | 400 | 600 | 820 | 1500 | 3000 | 4300 | 7840 | 12000 | 18000 |
Gear unit weight
Size | 38 | 48 | 58 | 68 | 78 | 88 | 98 | 108 | 128 | 158 |
Weight | 13 | 18 | 34 | 55 | 90 | 150 | 260 | 402 | 700 | 950 |
The weights are mean values, only for reference.
Maximum torque means the biggest one of the maximum torque related to the different ratio for the specified size.
