2016hot sale extrusion blow molding machine price
- 1000 Set / Sets per Month
- Gangzhou/Shanghai/Tianjin/Xiamen
- T/T L/C D/P D/A Credit Card PayPal
-
2016 high speed stretch blow molding machine price
-
widely used small plastic blow molding machine
-
High quality and good quality extrusion blow molding machine
-
high quality pe blown film machine/plastic extruder for food packing
-
plastic PE extruder machine/film making extruder
-
blowing film extruder/plastic PE film extruding machine
Product Details
| Condition: | New | Application: | Film | Plastic Processed: | PVC |
| Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Henan, China |
| Brand Name: | CHANGGANG | Model Number: | CG-45*28 | Voltage: | 380V |
| Power(W): | 7.5kw | Dimension(L*W*H): | 5000*2300*4000mm | Certification: | CE ISO |
| Warranty: | 12 months | After-sales Service Provided: | Overseas third-party support available |
Packaging Details
Packing with soft plastic film and wooden box ,or Packed in carton box with foam.
we can also Pack the goods according to the requirements of customers
Product Description
2016hot sale extrusion blow molding machine price
Product description:
The plastic film blowing machine is used for blowing various low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) Plastic film, etc.cylinder and screw rods are made of quality ally steel that have been nitrized and processed in processed in a precision way. It has the best hardness and corrosion resistance.Auxiliary platform workbench, make operation more convenient, and configure the fixed bubble ring.The coiling device is double closed double cutting(single) , and the power adopts torque motor.can keep suitable tension,It is tidy to get roll,and it is convenient to change it.
Scope of application:
It is widely applied to producing the liquid packaging, printing, clothing textile packaging, industrial packaging.Its extruder.
Optional divice:
1. PLC full automatic roll change winder
2. Automatic material feeding
3. Traction up and down lifting
4. Hydraulic filter changer system
5. Double stations winder
The main technical parameters:
| model | CG-45*28 | CG-50*28 | CG-55*28 | CG-65*28 |
performance
| resin | Polyethylene:HDPELDPELLDPE | |||
Maximum width | 400mm | 550mm | 800mm | 1000-1200mm | |
Product thickness range |
0.008-0.08mm | ||||
Extrusion output | 30kg | 40kg | 50kg | 60kg | |
Screw diameter | 45mm | 50mm | 55mm | 65mm | |
Screw ratio | 28:1/32:1 | ||||
Extrusion machine
| The screw material | 38CRMOALA | |||
Cylinder material |
| ||||
Cylinder cooling | 1 | 1 | 1 | 2 | |
Horse power of transmission | 7.5kw | 11kw | 15kw | 22kw | |
Heating power | 11KW | 13KW | 13KW | 18KW | |
Die head | 60/80 | 80/100 | 120/160 | 160/220 | |
| Blower | 1.1kw | 2.2kw | 2.2kw | 3kw |
temperature control | 5 | 5 | 5 | 6 | |
Take -up unit/the leading device
| The leading wheel | 165*650 | 165*650 | *165*900 | 165*1400 |
The leading power | 0.75kw | 0.75kw | 0.75kw | 1.1kw | |
shape | Elevation type | ||||
Leading speed | 10-80 | 10-80- | 10-80 | 10-80 | |
Coiling apparatus
| shape | The friction type or central winding type | |||
The maximum curly diameter | 600mm | ||||
Curly power | 5N/m | ||||
| Mounting dimension/the container information | 5000*2300*4000 | 5000*2300*4000 | 5500*2400*4400 | 6000*3000*5100 |

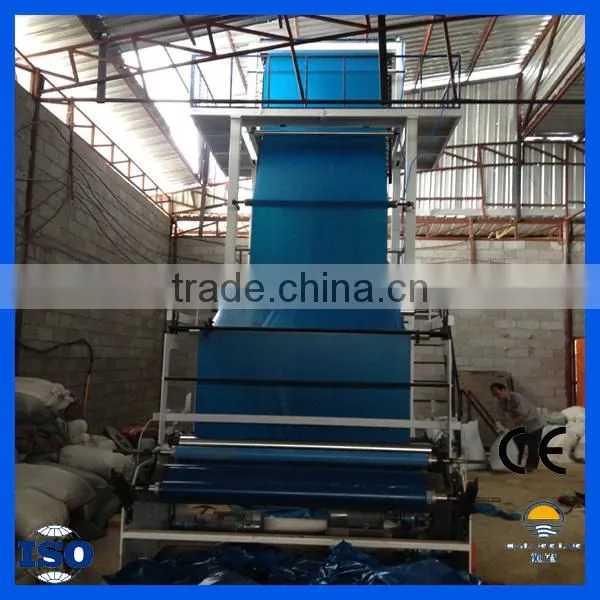

Products show:
Why choose us:
manufacture,not dealer:factory direct sale makes price more competitive.
we have rich experience in manufacturing construction equipment and Strict quality control;
Fast delivery;we promise the goods can be shipped out on the delivery date after confirmation of the order
Professional after-sale service:professional after-sale service.
