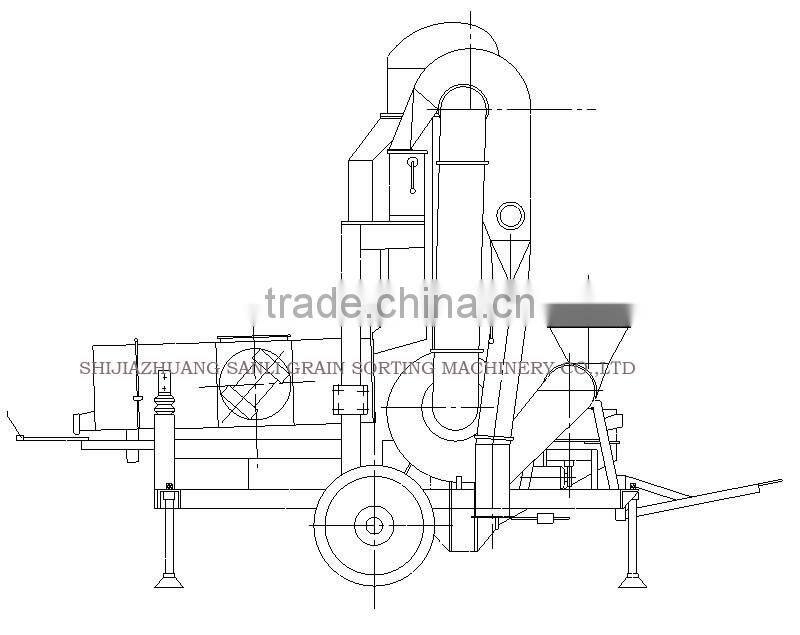

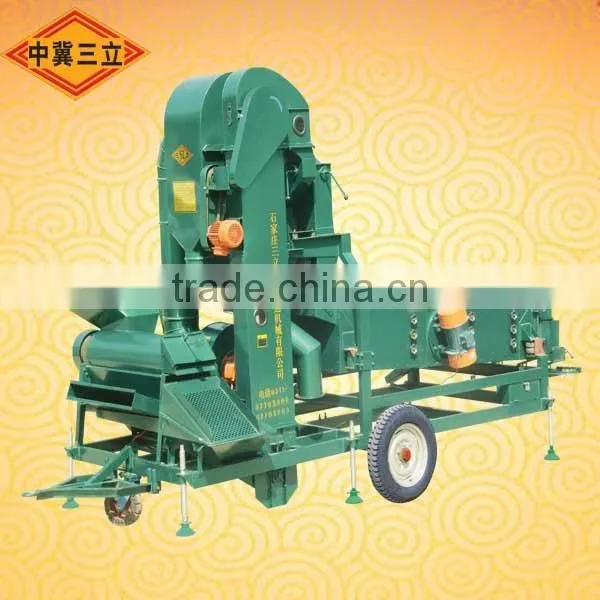

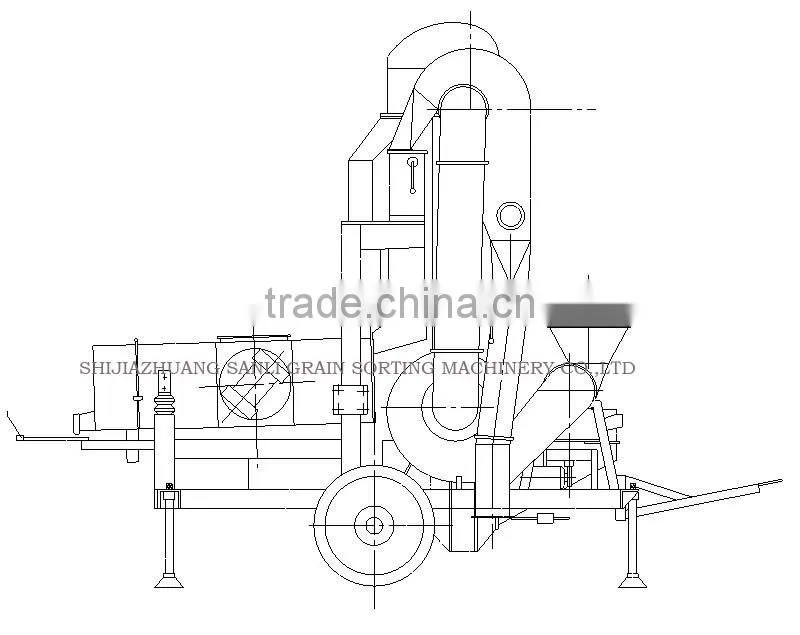

5XZC-5 Seed cleaner cum corn thresher
Features
1. The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating sift having passed through air sifting.
2. The vibrating is two layers sieves with three exits which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
3. The machines are used for seed and agriculture byproducts processing, It is ideal for corn, The 5XZC-5 model has corn threshing function.
4. The sieves used in the machine is made of high quality cool rolled galvanizing steel, with high precision and a long life span. The rubber ball sifting structure complies with international standards, SanLI’s patented rubber ball is highly elastic, endures, cold and is long lasting.
5. The machines use a vibrating motor as its vibrating source: the regulation of both scale and direction of vibration is convenient and accurate. Advanced technology. advanced specification, efficient, easy to operate and maintain, stable and cost effective.
The main performance indicators and technical parameters
| Model | 5XZC-5 |
| Productivity | 5000 Kg/h |
| Size (L×W×H) | 4320×2100×2960mm |
| Sieve Layers | 2 |
| Weight | 1600 Kg |
| Power supply | 380V 50Hz |
| Total power | 12.74 Kw |
| Selection rate | ≥96% |
| Clarity | ≥97% |
| Broken rate | ≤0.5% |
| Impurities rate | ≤2% |
| Remarks | With corn thresher |
Exhibitions:
Company Brief:
We produce Gravity separator, De-stoner, Seed cleaning machine, Grain cleaner and grader, Grain processing equipment, Wheat corn seed cleaning machine, Air screen seed cleaner, Seed Processing Machinery, seed coating machine.
Main markets:
Domestic Market, Africa, Eastern Asia, Southeast Asia, South America, Oceania.
After sales service:
We can send our technicians to guid equipment installation and operation
