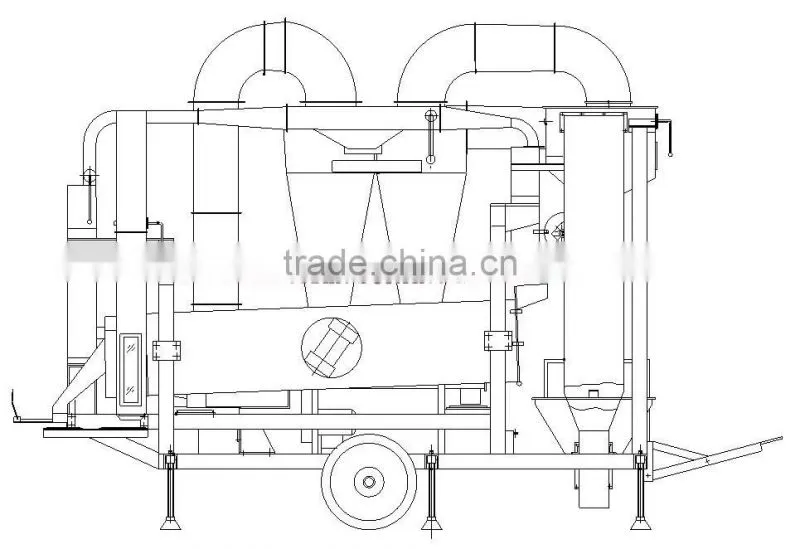

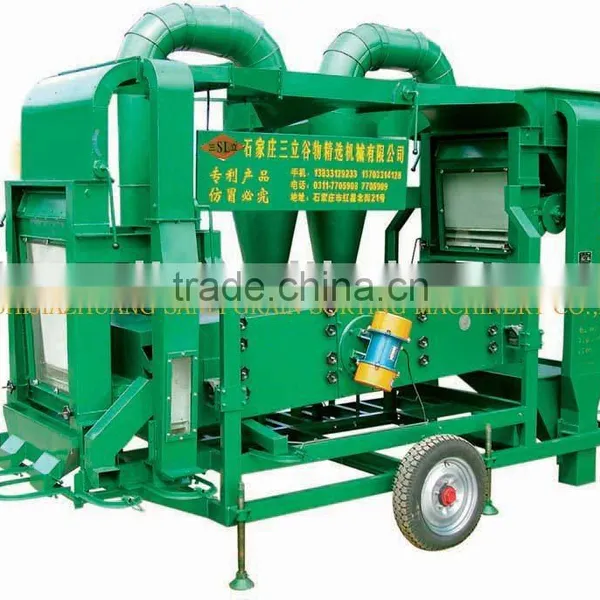

5XZC-10D Sunflower seed separating machine(ISO9001)

Specifications

5XZC-10D Sunflower seed separating machine
capacity:3000kg/h

5XZC-15D Sunflower seed separating machine








Brief Introduction:

The series has a large processing capacity when compared with other similar products available in China market. Besides seed processing. This series is also suitable for processing and grading agriculture byproducts including (sunflower seed, white melon seed, water melon seed, red water melon seed and beans). The series has a double wind-sieves technique that processes twice. Also combing one box two units with vibrating sieves ,the series of this machine is highly efficient and accurate. At present, 10C and 10D models have different characteristics from each other. The 10C and 10D model elevator are suction loading, and therefore used for processing sunflower seed, melon seed, buckwheat and rice grain with lowest broken rate.



Technical specification

Model	5XZC-10C	5XZC-10D
Productivity	3000kg/h	3000kg/h
Size(L×W×H)	3800×2265×2860mm	4400×2300×3500mm
Sieve size(L×W×layers)	2000×1000mm×3	2400×1000mm×4
Power	380V  50Hz	380V  50Hz
Weight	1600 kg	1800 kg
Total power	7.04 kw	11.1 kw
Selection rate	≥97.5%	≥97.5%
Clarity	≥ 97%	≥ 97%
Damaged rate	≤ 0.5%	≤ 0.5%
Impurities rate	≤ 2%	≤ 2%
