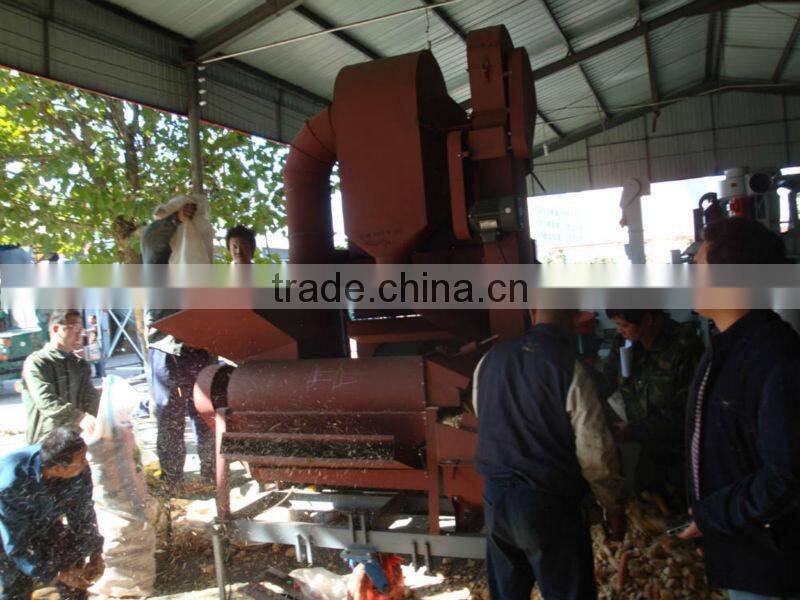

5XZC-5 Corn grain seed cleaner cum grader

Specifications

5XZC-5 Corn grain seed cleaner cum grader
MOQ: 1set
Delivery time: 20days after received the prepayment
Payment term:T/T

5XZC-5 Corn grain seed cleaner cum grader





Features

1. The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the ejection chamber, while seed is heavy and is transferred into a vibrating sift having passed through air sifting.

2. The vibrating is two layers sieves with three exits which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.

3. The machines are used for seed and agriculture byproducts processing, It is ideal for corn, The 5XZC-5 model has corn threshing function.

4. The sieves used in the machine is made of high quality cool rolled galvanizing steel, with high precision and a long life span. The rubber ball sifting structure complies with international standards, SanLI’s patented rubber ball is highly elastic, endures, cold and is long lasting.

5. The machines use a vibrating motor as its vibrating source: the regulation of both scale and direction of vibration is convenient and accurate. Advanced technology. advanced specification, efficient, easy to operate and maintain, stable and cost effective.



The main performance indicators and technical parameters



Model	5XZC-5
Productivity	5000 Kg/h
Size (L×W×H)	4320×2100×2960mm
Sieve Layers	2
Weight	1600 Kg
Power supply	380V  50Hz
Total power	12.74 Kw
Selection rate	≥96%
Clarity	≥97%
Broken rate	≤0.5%
Impurities rate	≤2%
Remarks	With corn thresher
