Shisha Charcoal equipment China supplier
Brief introduction of the shisha charcoal equipment China supplier
The machine can press many different kinds of chips/tablets (circle, square, irregular, etc) by
replacement of some spare parts. We produce the shisha hookah charcoal machine.The machine
can press dry powder into circle chips/tablets, square, rectangle, ring, taper and so on by changing
moulds. The finished products’ surface is smooth and its pressure as well as density can be adjusted.

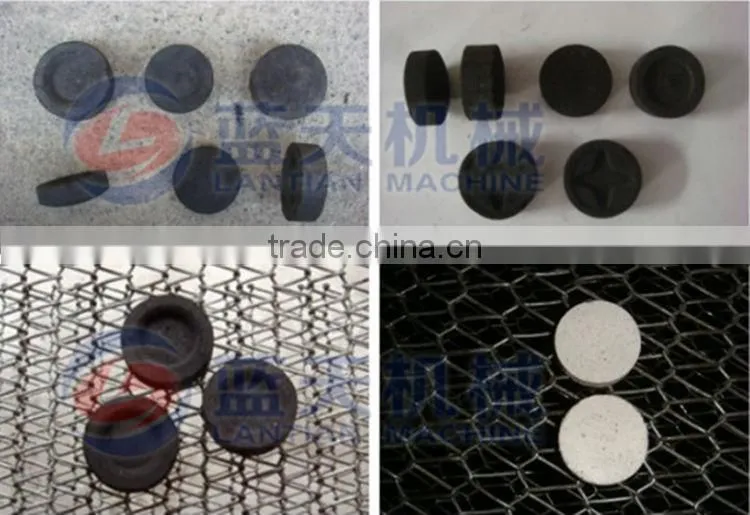

samples:
Main features of the shisha charcoal equipment China supplier
1)Special design is suitable for light powder materials.
2)Reasonable structure with easy clearance and maintenance.
3)Transmission system in main gear box below airtight is completely separated, reducing noise and wear.
4)The model of this shisha charcoal briquette machine is changeable.

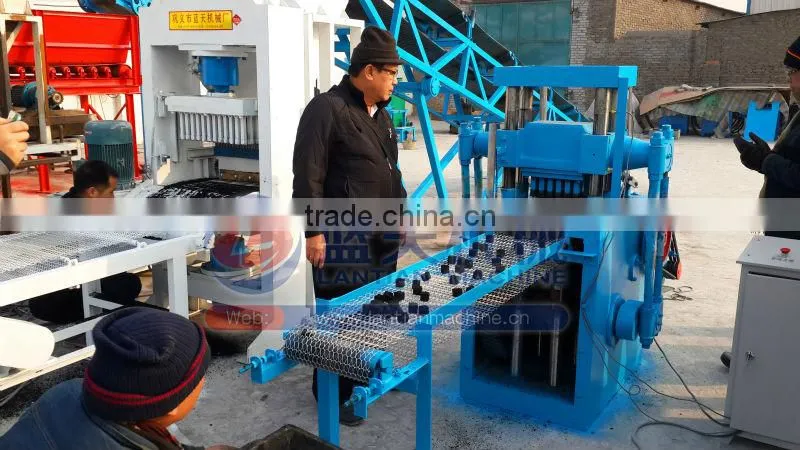

Pictures about the main parts of the shisha charcoal equipment

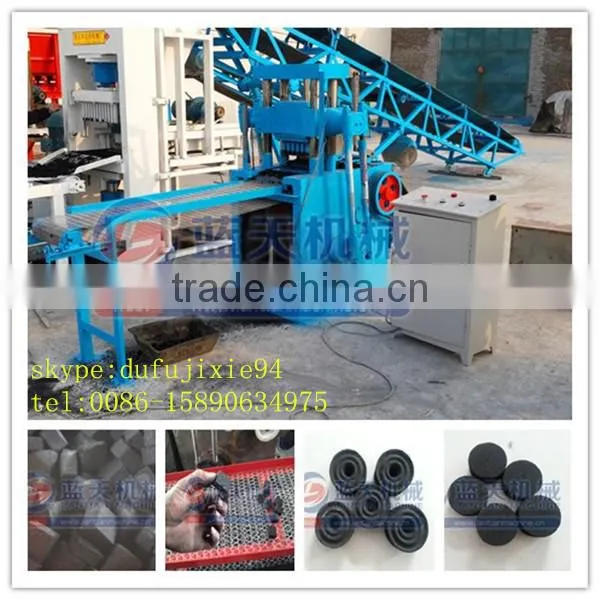

The whole production line related to the shisha charcoal equipment China supplier
Technical parameters of the shisha charcoal machine
| Model | LTYJ-9 | LTYJ-48 |
| Applicable materials | charcoal powders, coal powders, sawdust, any powders materials | |
| Capacity |
11-16pieces/time 20-40times/min |
48pieeces per time(30mm) 8-20times/min |
| Motor | 7.5kw(4 pole) | 18.5kw(4 pole) |
| Diameter of briquettes |
20, 25,30,33,35,38,40,43mm(round): 20-40mm(cubic) |
20,25,30,33,35,35,40,43mm(round)20-40mm(cubic) |
| Feeding materials | <3 mm | <3 mm |
| Briquette shap | Round shap and Cuib shap or as customers′ request | Round shap and Cuib shap or as customers′ request |
| Pressure | 40-60tons(adjustable) | 40-150tons |
| pressure type | Mechanical press | Hydraulic Press |
| Overall size |
2500*950*1550mm (includes conveyor) |
3500*2000*1800mm (includes conveyor) |
| Packing size | 1500*1200*1750mm | 2100*2100*1900mm |
| Weight | 15000kg | 5500kg |
Our promise about the shisha charcoal machine
Pre-sale service:
1.According to the customer needs to recommend relative models machine.
2.According to the customer's special requirements to customize equipments.
3.Our engineers will supply the site and equipment drawing.
After-sale service:
1.According to the purchase contract,our company can send engineers to help installation.
2.The quality guarantee is 1 year,not including the wearing parts.
3.Collecting customer feedback,solve the real problems faced by customers.
4.Our company supply sapre parts the whole year.

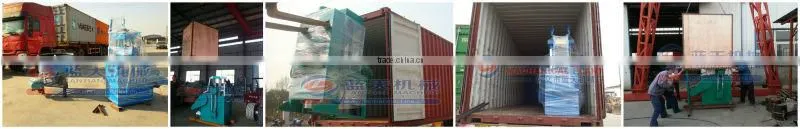

1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
Our working experience about the shisha charcoal machine China supplier
Lantian Mechanical Plant, which located in Gongyi, Henan province,is a modern enterprisewhich setsthe scientific research, production and sales as a whole.We have a modern management system,the first-class processing art, perfect detection means, high quality science and technology talent team and after-service system. Our company has been rated as "Quality Trustworthy Unit" "Brand-name and High-quality products" and "QualityManagement Advanced Unit".In order to meet the different requirements of customers, we designed and researched many types of charcoal processing
machine including charcoal & coal briquette machine, Shisha/hookah charcoal machine,sawdust charcoal briquette machine, tablet press machine, rotary dryer vertical dryer, belt mesh dryer and mixer, crusher, blinder, etc.
Other assistant equipments of the shisha charcoal machine China supplier
1) Charcoal crusher:
the first step of hookah hisha machine is to crush raw material into fine charcoal powder. The smaller the charcoal powder's size is, the better.( shisha charcoal machine)
2) Mixer:
The second step of hookah shisha machine is to mix charcoal powder with natural binder evenly. The reason why we use wheel mixer is that wheel mixer can not only improve charcoal powder's density, but also press charcoal powder into smaller size.( shisha charcoal machine)
4) Box dryer:
The last step of hookah shisha machine is to dry shisha charcoal in box dryer. Due to the liquid binder, shisha hookah shisha machine will have 15-20% water content, so we need to dry the material.(shisha charcoal machine)
Welcome to our factory to check performance of the shisha charcoal machine or contact with me at any moment.
