Specifications
iron ore fines briquette making machine1.Capacity:4-6t/h
2.Briquette Size:30-70mm(or custom made)
3.Low consumption

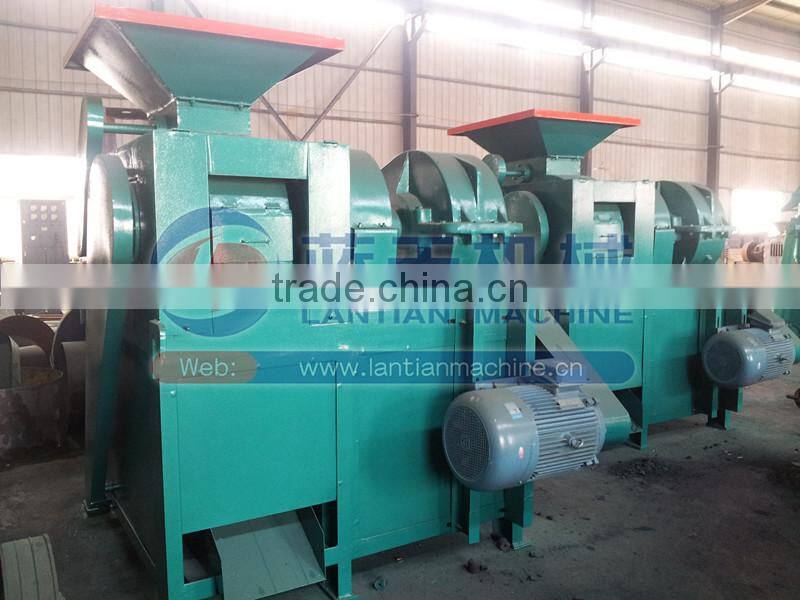

iron ore fines briquette machine
brief introduction of iron ore fines briquette making machine
lantian machinery plant is a professional iron ore fines briquette machine manufacturer,with more than 30years of manufacturing experience,the products are exported to all over the world .All powdery material, need to be on the stove or for special purposes, need to be pressed into to ball,Ball Press Machine can be used to press coal , iron ore fines, coke , aluminum powder, iron , iron oxide skin, toner , toner , slag , gypsum, tailings , sludge , kaolin , activated carbon, coke powder and other end , Powder , waste, waste residues, are widely used in refractory , power plants , metallurgy , chemical , energy , transportation, heating , etc. , produced by the compression molding machine after the ball materials , energy saving , easy to transport , we can customized products according to customer demand.

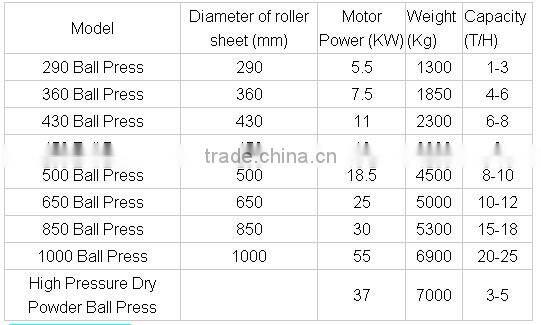

main technical parameters:

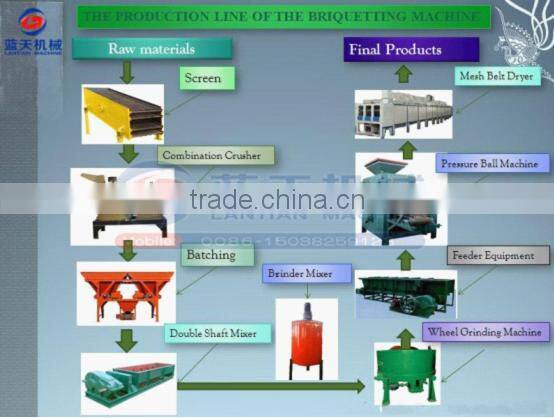

working process:
The iron ore fines must be powder,the size is less than 1mm,if the material need to crush,our factory can provide the crusher,after crush we put the iron ore power into the mixer,then add the adhesive into the mixer ,through the mixer making the material and the adhesive to fully mix,the iron ore irons through the convery belt to the iron ore fines briquette iron ore powder naturally enter the roller molds,with the rollers rotation.when the material reach the two rollers rotating line contact point,the pressure of materials has reached the peak.tremendous pressure in the role of line,the materials become a finished product from the iron ore powder to the ball.the whole production line is fully automatic.
Related equipments:
Apart from the charcoal briquette macine,we provide other related equipments,such as crusher,feeder,dryer and mixer ect.even the whole production line.

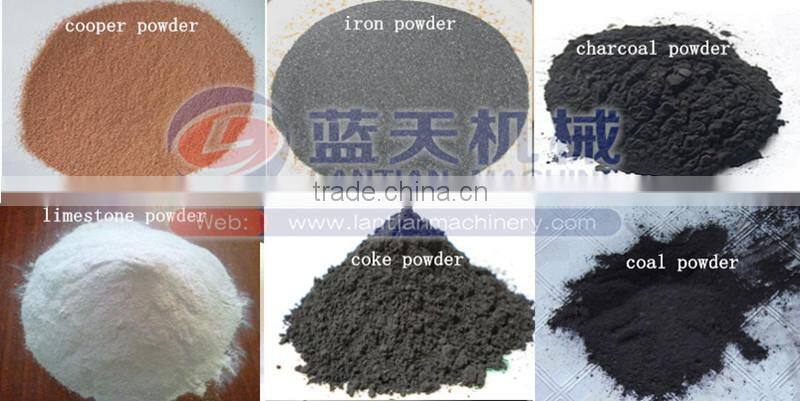

Raw materials:
It can press a variety of materials
1.iron ore fines /coal fine/coal dust
2.Charcoal powder/charcoal fine/charcoal dust
3.Activated carbon/carbon black/coke powder
4.All kinds of metal powder/Manganese/magnesium/copper/iron
5.Iron oxide/aluminum oxide/clay
me other type powder
Remarks: based on different materials,briquette size,capacity,the technical parameters is adjustable.

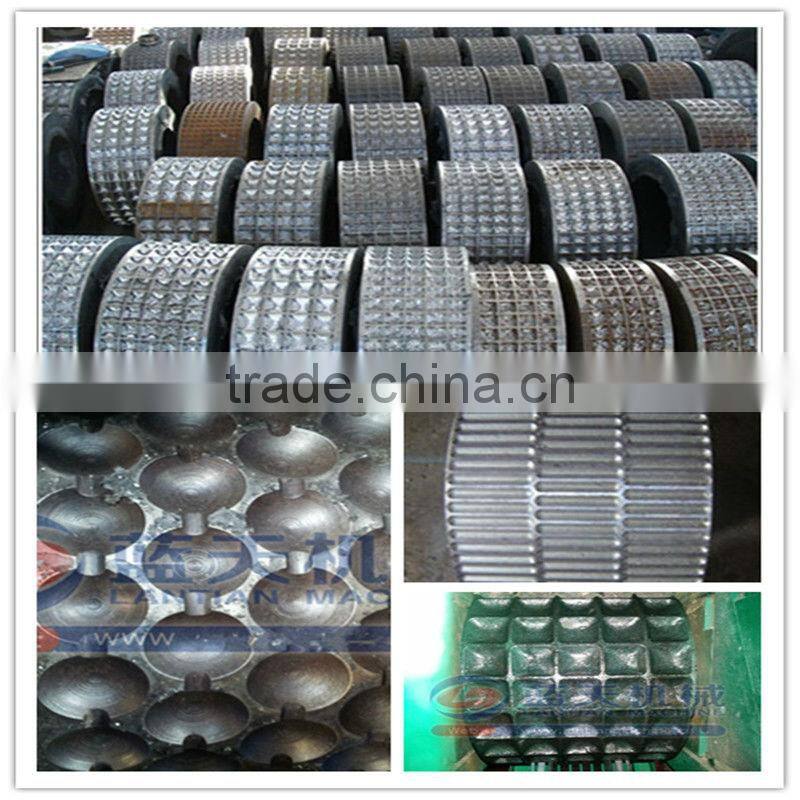

the mould of charcoal briquette making machine

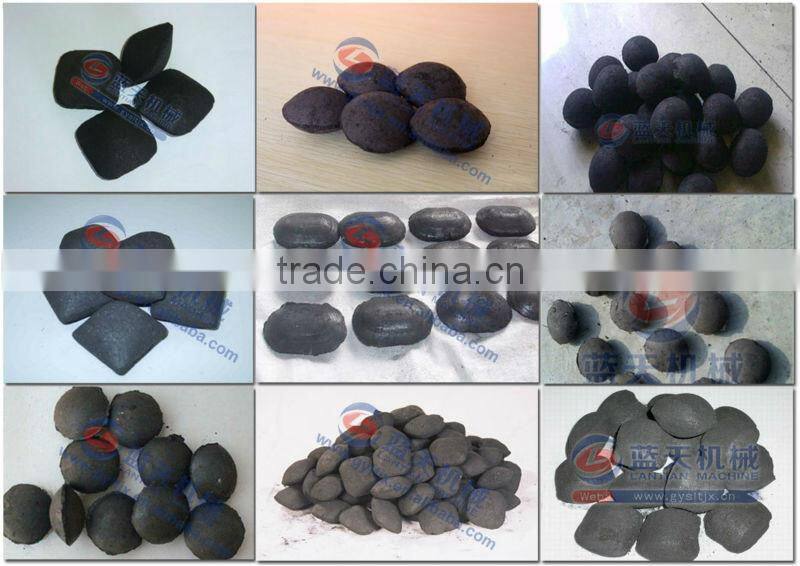

final products:
we can do any shapes as per your requirements ,just change the mould ,shape can be round ,square and pillow shape.

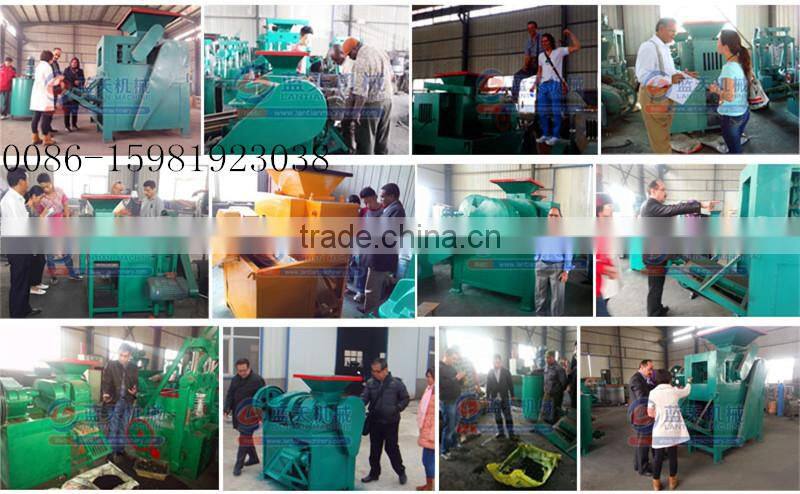

foreign customers come to the factory to purchase our charcoal briquette machine
If you are interested in our charcoal briquette making machine,pls contact me
