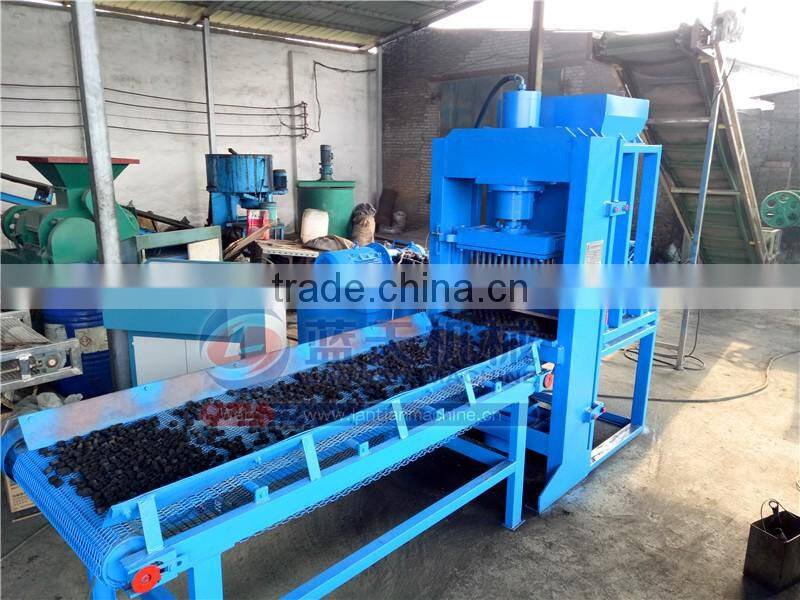

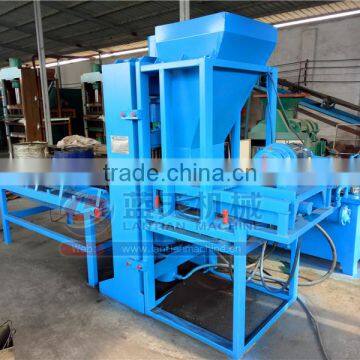

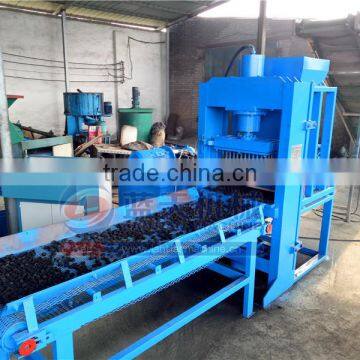

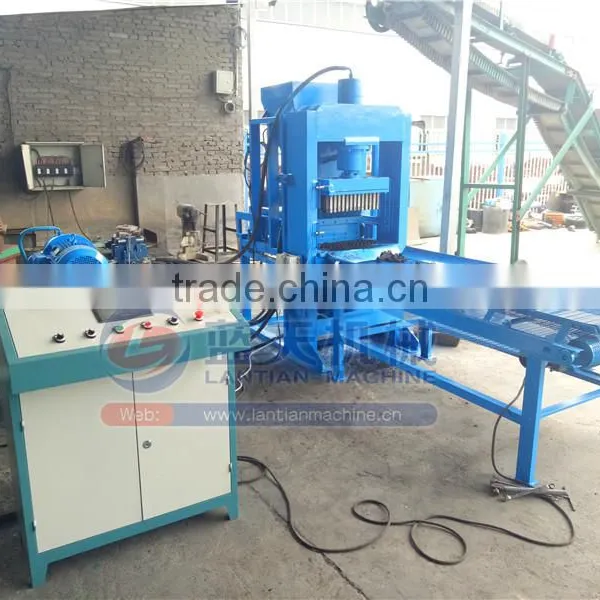

Lantian series of bamboo shell charcoal honeycomb briquette machine
Introduction of the machine :
The machine can produce many different kinds of honeycomb briquette format according to your requirement, just replace the corresponding mold is OK. You can order other machine mold when you are buying the complete machine.In this way,you can not only save your money but also achieve a multi-purpose machines.This machine can accept coal powder,coal dust,coal fine,coal slurry,coal slime,charcoal powder,coke powder,sawdust etc.
The working principle:
1. Put prepared material into the hopper of the honeycomb coal making machine and distributor will feed material into the molds
under the hopper, then the pressure device will press the powder.
2. Powder will be formed to a certain shape under the stronger press.
3.Next, the briquette will be pressed out off the mold by auxiliary punch, and fall on the belt conveyor.
The outlet briquettes:
1. Shape: The briquette machine for carbon black can press the carbon black into diversified, pillow shape, oval shape,
egg shape, ball shape, column shape, square shape and so on. And the shapes and size of the briquettes can be customized.
2. Hardness: The finished product are very hard,they are not shattered even though down from 3 meters height.
3. Transport: It is very easy and convenient to transport either short transport or long transport.
The parameters:
| Model | Power | Capacity for brick shape | Capacity of rod shape | Outlet size of round | Outlet size of square | Outlet size of rod | Weight |
| LTF-140 | 7.5kw | 45 pcs/min | 90-100 pcs/min | ≤120 mm | ≤100x100 mm | ≤50 mm | 1.8ton |
| LTF-180 | 7.5kw | 40 pcs/min | 120 pcs/min | ≤145 mm | ≤130x130 mm | ≤50 mm | 2.5ton |
| LTF-220 | 15kw | 22-26 pcs/min | 125 pcs/min | ≤220 mm | ≤150x150 mm | ≤50 mm | 3.8ton |
| LTF-260 | 15kw | 26 pcs/min | 90-120 pcs/min | ≤260 mm | ≤200x200 mm | ≤50 mm | 3.8ton |
| LTF-300 | 15kw | 26 pcs/min | 90-120 pcs/min | ≤300 mm | ≤250x250 mm | ≤50 mm | 4 ton |
Packing and shipping
Waterproof packing with the international export standard.
Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box.
Other Equipment will be packed by Color-Stripes Plastic Cloth.
In accordance with customer's requirements.
