Specifications
roller metal can crusher1.30 years experience
2.low cost high profit
3.energy saving
4.easy maintenance
High performance hydraulic double teeth roller crusher

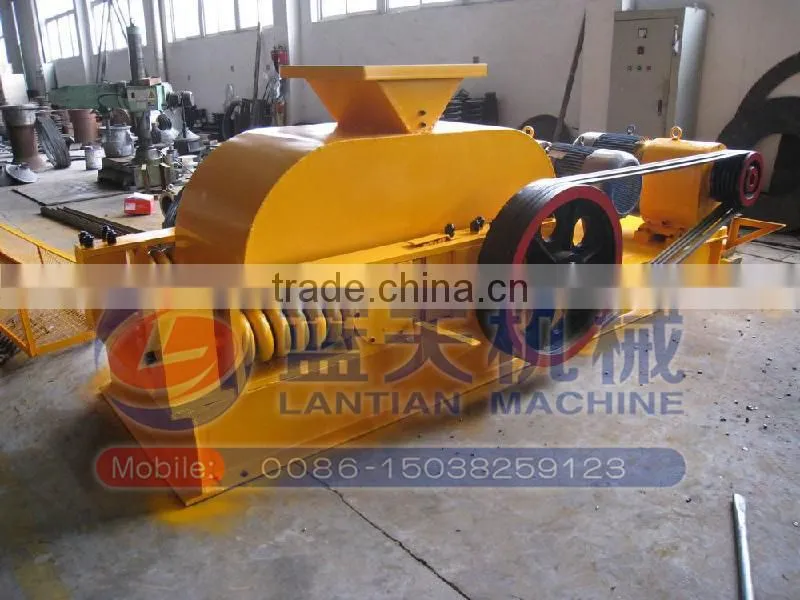

Brief introduction of roller metal can crusher:
The "Lantian" series roller matal can crusher is mainly used for medium size hardness material crushing and grinding, such
as clay, shale, coal gangue, slag or cinder and so on. It is mainly used in the industry of cement, metallurgy, chemical industry,
electric power, coal, refractory materials, etc.
Characteristics of roller matal can crusher:
Balance particles, reliability, simple maintenance, low running cost, particles adjusted.
Structure of roller matal can crusher:
Roller metal can crusher consists of roll bearings, roll support bearing, hold and regulating device, and drive device etc. The
roller ring adopts wear-resisting ductile iron and alloy steel, and through quenching process. The hardness respectively reaches
to HRC 60° ˜ 55°. The roller ring is equipped with the case, not only the whole roll ring width can play the role of breaking,
improve crushing fineness and prodcution.
Technical Parameters:
| Model |
Capacity (m³/h) |
Discharge particle size (mm) |
Main shaft rotation speed (r.p.m) |
Motor power (kw) |
Equipping belt (mm) |
Dimension (L*W*H)mm |
| LTM70*50 | 20-40 | ≤5 | 233 / 210 | Y6-15x2 |
5C × 4935 5C × 5300 |
2500 × 1150 × 1200 |
| LTM60*60 | 20-35 | ≤5 | 224 / 198 | Y6-11x2 | 8C × 4500 | 2200 × 1150 × 1200 |
| LTM50*50 | 15-25 | ≤5 | 263 / 237 | Y6-7.5x2 | 8B × 4040 | 2000 × 900 × 900 |
Exporting scene:
The interactions between us and our customers:
Year after year, customers from different countries come to us to check the performance. After using our machines, they
will retroaction the using conditions and give their precious opinions to us. The mutual trust and cooperation between us
promoting our enterprise keep growing. Thank you very much for the encourage and help, we will never stop to improve
the quality of our products and design new types to repay our old and new customers, give you a satisfactory answer.
Certificates:
Workshop:
Business negotiations:
